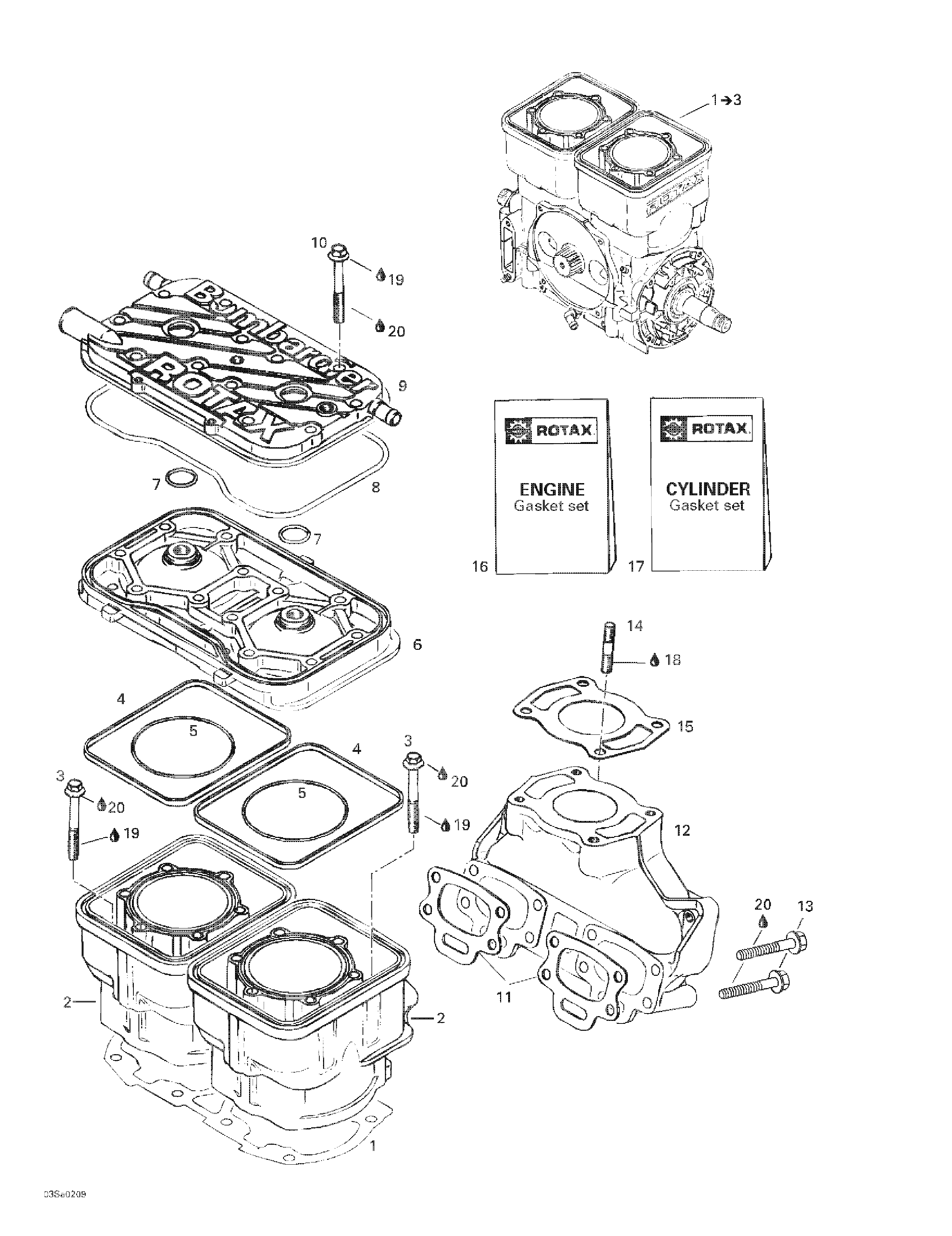

01- Cylinder, Exhaust Manifold для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1290071703 Short Block Ass'y (Silver). Includes 1 - 3.Short Block Ass'y (Silver). Includes 1 - 3.
-
1290931404 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
290931403 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
290931402 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
290931401 Gasket Cylinder 0.4 mmGasket Cylinder 0.4 mm
-
290931400 Gasket Cylinder 0.3 mmGasket Cylinder 0.3 mm
-
2290923805 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3290440368 Hex. Flanged Screw M8 x 90Hex. Flanged Screw M8 x 90
-
4290850045 Rubber RingRubber Ring
-
5290931410 O-RingO-Ring
-
6290923252 Head Cylinder (Silver)Head Cylinder (Silver)
-
7420430782 O-RingO-Ring
-
8420950360 O-RingO-Ring
-
9290923262 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
10290841998 Hex. Flanged Screw M8 x 68.5Hex. Flanged Screw M8 x 68.5
-
11290850638 GasketGasket
-
12290979146 Exhaust Manifold (Silver)Exhaust Manifold (Silver)
-
13290841998 Hex. Flanged Screw M8 x 68.5Hex. Flanged Screw M8 x 68.5
-
14290940798 Stud M10 x 25Stud M10 x 25
-
15420950255 GasketGasket
-
16290886319 Engine Gasket SetEngine Gasket Set
-
17290886318 Cylinder Gasket SetCylinder Gasket Set
-
18413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20413707000 Molykote 111Molykote 111
