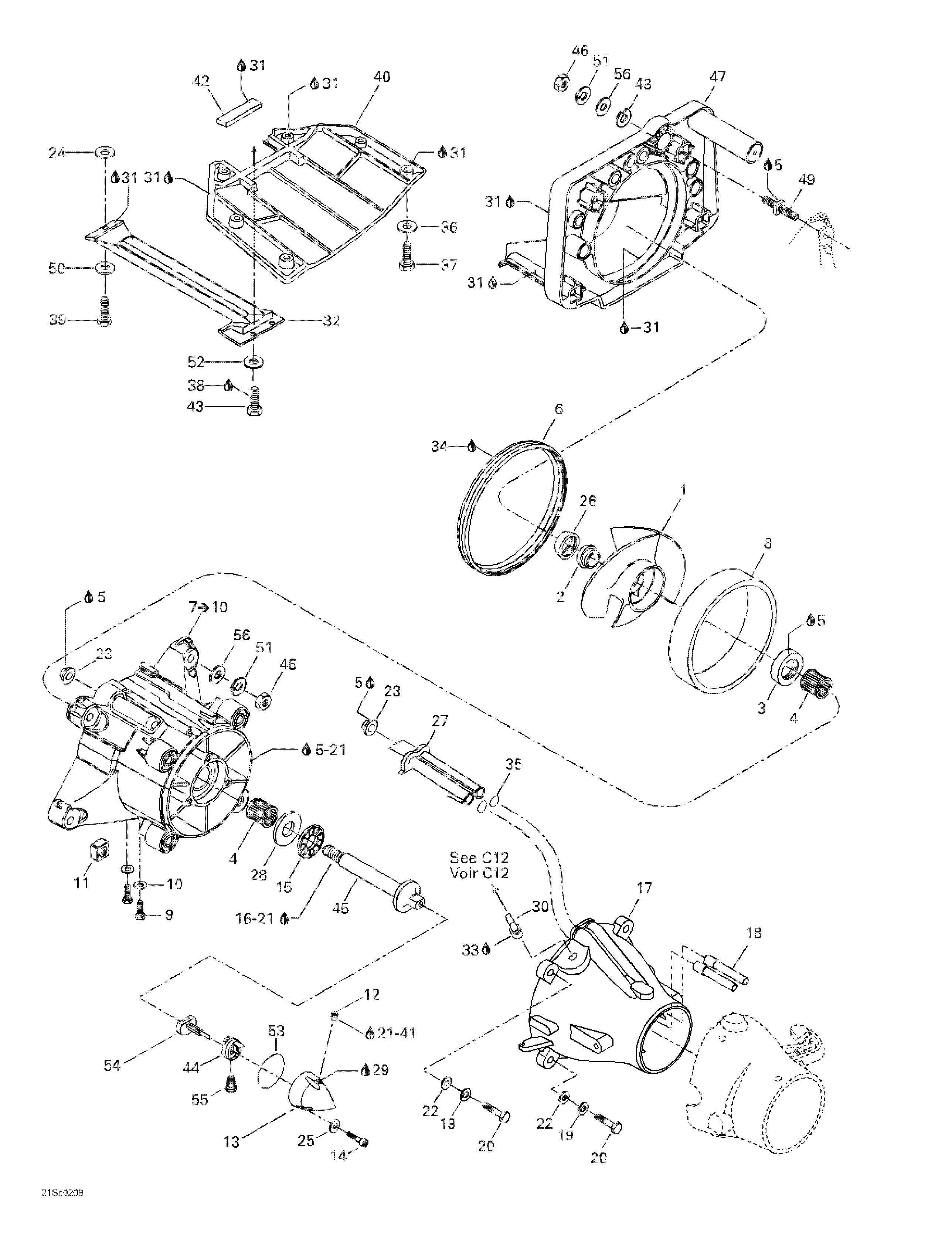

05- Propulsion System для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1271001297 Stainless Steel Impeller Ass'yStainless Steel Impeller Ass'y
-
2271000516 Impeller BootImpeller Boot
-
3293200065 Double Lip SealDouble Lip Seal
-
4293350017 Needle BearingNeedle Bearing
-
5293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
6293200051 Neoprene SealNeoprene Seal
-
7271001381 Impeller Housing Ass'y. Includes 7 - 10.Impeller Housing Ass'y. Includes 7 - 10.
-
8271000653 Wear-RingWear-Ring
-
9250000040 Hex. ScrewHex. Screw
-
10234051600 Flat WasherFlat Washer
-
11211100033 Square Nut M8 x 1.25Square Nut M8 x 1.25
-
12211500001 Pipe Plug Socket 1/8-27 NPTPipe Plug Socket 1/8-27 NPT
-
13271001250 Impeller CoverImpeller Cover
-
14205562560 Socket Head Screw M6 x 25 (Scotch Grip). (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip). (Scotch Grip)
-
15293350022 Thrust BearingThrust Bearing
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17271001284 Venturi (Black)Venturi (Black)
-
18271001133 Siphon TubeSiphon Tube
-
19234181601 Lock Washer 8 mmLock Washer 8 mm
-
20207084060 Hex. Screw M8 x 50 (Scotch Grip)Hex. Screw M8 x 50 (Scotch Grip)
-
21293800041 Loctite, Primer NLoctite, Primer N
-
22234081600 Flat Washer 8 mmFlat Washer 8 mm
-
23293250084 O-RingO-Ring
-
24234001600 Flat Washer 10 mmFlat Washer 10 mm
-
25234061600 Flat Washer 6 mmFlat Washer 6 mm
-
26271000517 RingRing
-
27271000785 Water OutletWater Outlet
-
28293350020 Thrust WasherThrust Washer
-
29293600011 Synthetic OilSynthetic Oil
-
30271001298 ElbowElbow
-
31293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
32271000763 Inlet Grate (Black)Inlet Grate (Black)
-
33293800018 Pipe Sealant Loct 59231, 50 mlPipe Sealant Loct 59231, 50 ml
-
34413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
35293300013 O-RingO-Ring
-
36234081600 Flat Washer 8 mmFlat Washer 8 mm
-
37207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
38293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
39207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
40271001265 Riding Plate (Black)Riding Plate (Black)
-
41293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
42293200003 Seal (Meter)Seal (Meter)
-
43207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
44271001107 SliderSlider
-
45271000965 Impeller ShaftImpeller Shaft
-
46232001600 Hex. Nut M10Hex. Nut M10
-
47271001225 Pump SupportPump Support
-
48272000053 ShimShim
-
49250300010 StudStud
-
50234081600 Flat Washer 8 mmFlat Washer 8 mm
-
51234101601 Lock Washer 10 mmLock Washer 10 mm
-
52234061600 Flat Washer 6 mmFlat Washer 6 mm
-
53293300011 O-RingO-Ring
-
54271001124 Pusher Ass'yPusher Ass'y
-
55271001108 SpringSpring
-
56234002600 Flat Washer 10 mmFlat Washer 10 mm
