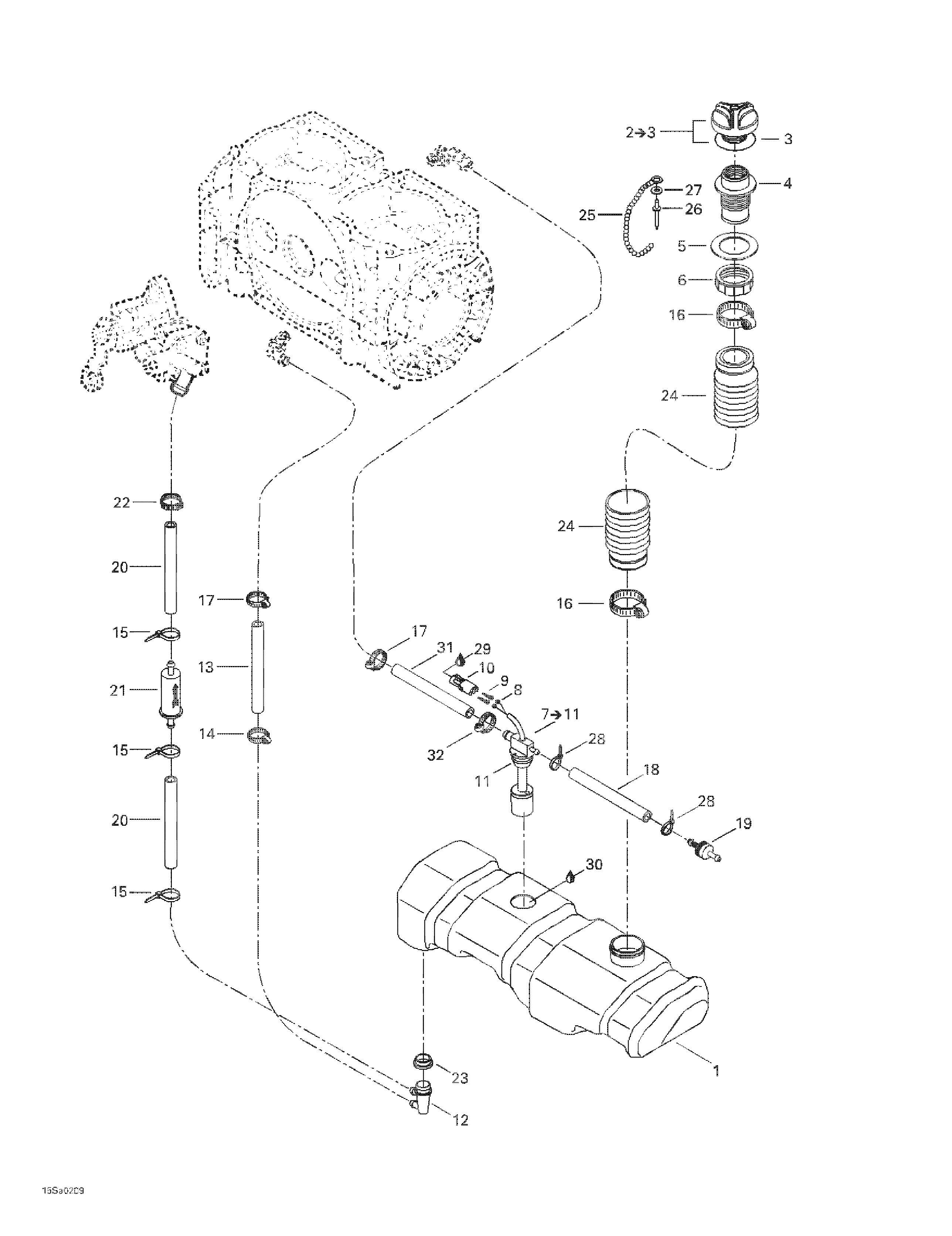

02- Oil Injection System для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1275000238 Oil TankOil Tank
-
2275000186 Oil Cap. Includes 2 - 3.Oil Cap. Includes 2 - 3.
-
3293250025 O-RingO-Ring
-
4275000242 Filler NeckFiller Neck
-
5293250132 GasketGasket
-
6211100013 Nut-Neck Oil FillerNut-Neck Oil Filler
-
7278001401 Oil Level Sensor Ass'y. Includes 7 - 11.Oil Level Sensor Ass'y. Includes 7 - 11.
-
8278000218 Wire Seal (16-18 gauge) (Green)Wire Seal (16-18 gauge) (Green)
-
9278000222 Male Terminal (18 gauge)Male Terminal (18 gauge)
-
10278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
11293720008 GrommetGrommet
-
12293710051 Fitting Elbow 90 DegFitting Elbow 90 Deg
-
13275000008 Hose 12 mm (metre)Hose 12 mm (metre)
-
14293650084 Norma ClampNorma Clamp
-
15293750001 Tie Rap 94 mmTie Rap 94 mm
-
16293650035 Tridon ClampTridon Clamp
-
17293650128 Tridon ClampTridon Clamp
-
18275500549 Hose 6mm (metre)Hose 6mm (metre)
-
19275500398 Check ValveCheck Valve
-
20275000007 Hose 8 mm (metre)Hose 8 mm (metre)
-
21275000051 Oil FilterOil Filter
-
22293650042 Oetiker ClampOetiker Clamp
-
23293720008 GrommetGrommet
-
24275000188 Filler HoseFiller Hose
-
25275500015 Oil Cap ChainOil Cap Chain
-
26390407900 Pop Rivet 1/8Pop Rivet 1/8
-
27234032600 Flat Washer 3 mmFlat Washer 3 mm
-
28293750002 Tie Rap 130 mmTie Rap 130 mm
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liters)Injection Oil (3 x 4 Liters)
-
413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
413710500 Synthetic Inj. Oil XP-S (12 x 1 Liter)Synthetic Inj. Oil XP-S (12 x 1 Liter)
-
413711000 Synthetic Inj. Oil XP-S (3 x 4 Liters)Synthetic Inj. Oil XP-S (3 x 4 Liters)
-
413710700 Synthetic Inj. Oil (205 Liters)Synthetic Inj. Oil (205 Liters)
-
293600032 Synthetic Inj. Oil XP-S-DI (12 x 1 Liter)Synthetic Inj. Oil XP-S-DI (12 x 1 Liter)
-
293600033 Synthetic Inj. Oil XP-S-DI (3 x 4 Liters)Synthetic Inj. Oil XP-S-DI (3 x 4 Liters)
-
293600034 Synthetic Inj. Oil XP-S-DI (205 Liters)Synthetic Inj. Oil XP-S-DI (205 Liters)
-
32293650129 Hose Clamp TridonHose Clamp Tridon
