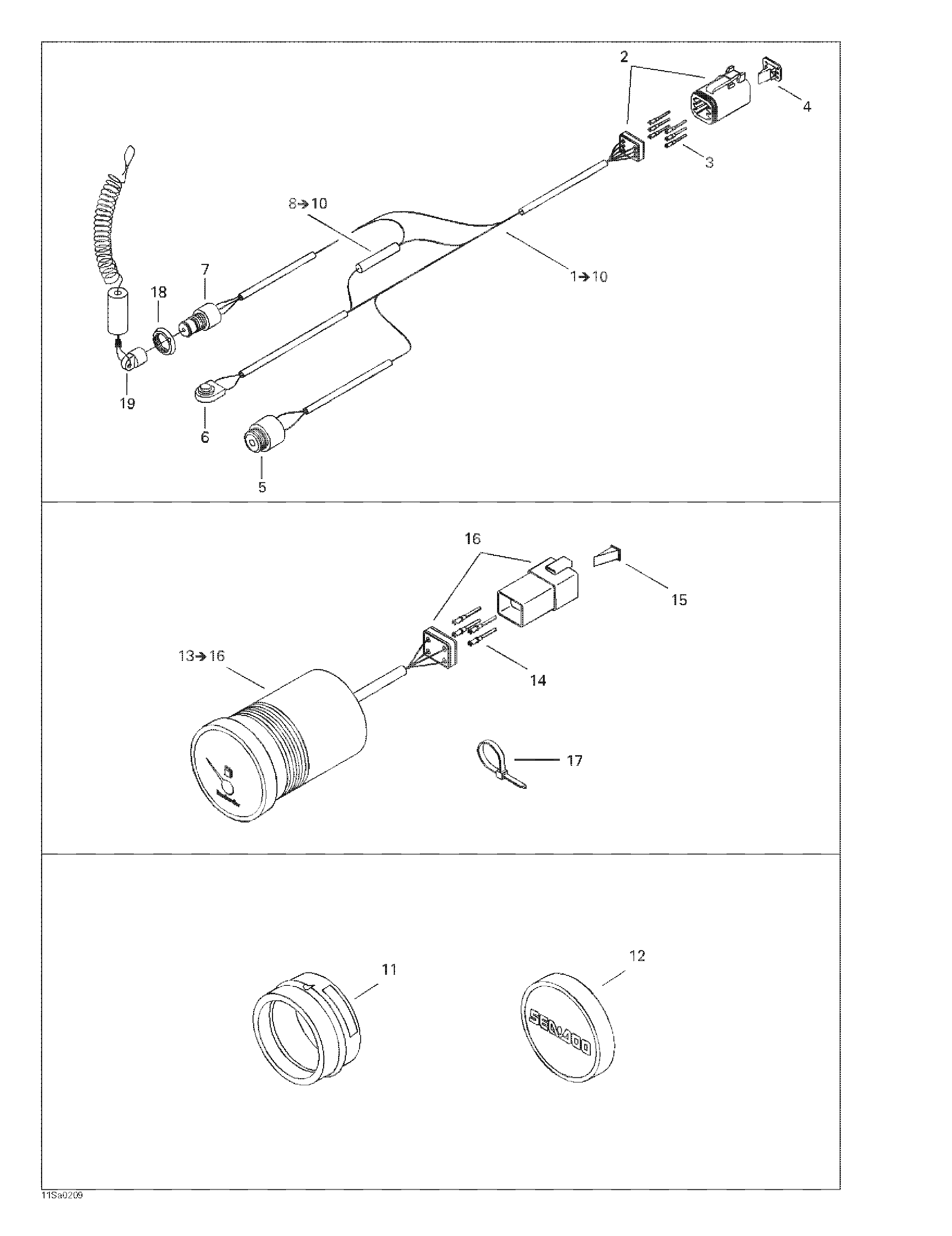

10- Electrical Accessories для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1278001659 Steering Harness. Includes 1 - 10.Steering Harness. Includes 1 - 10.
-
2278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
3278000632 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
4278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
5278001586 BuzzerBuzzer
-
6278001587 Switch Ass'ySwitch Ass'y
-
7278001589 Safety SwitchSafety Switch
-
8278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
9278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11293720047 Gauge SupportGauge Support
-
12293000068 Gauge CapGauge Cap
-
13278001622 Oil / Fuel Gauge. Includes 13 - 16.Oil / Fuel Gauge. Includes 13 - 16.
-
14278001664 Male TerminalMale Terminal
-
15278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
16278000635 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
17414115200 Tie RapTie Rap
-
18278000508 Safety Switch NutSafety Switch Nut
-
19278001543 Safety Lanyard Ass'ySafety Lanyard Ass'y
