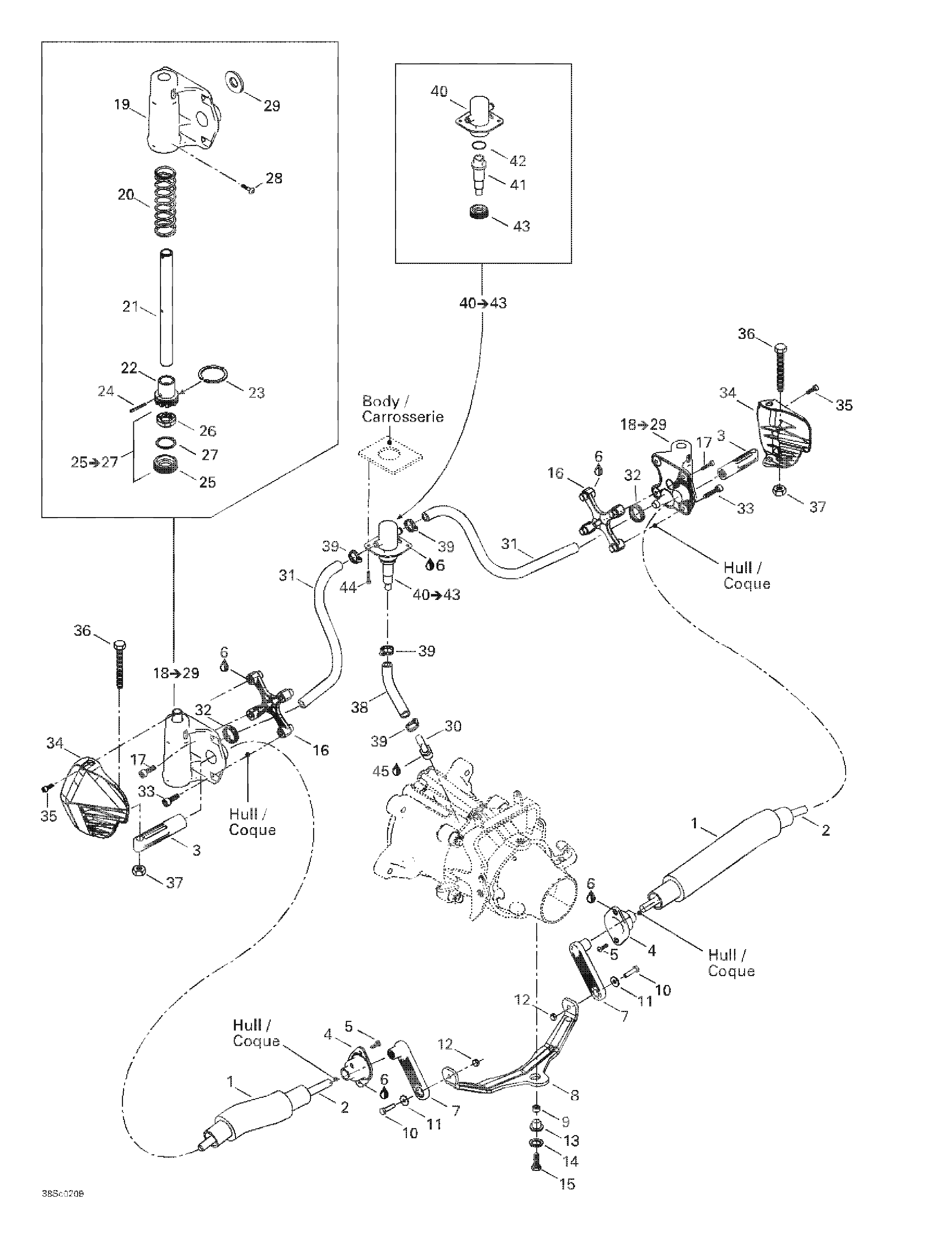

07- Off Power Assisted Steering для BRP GTI, 5558/5559/6116 - 2002
-
№АртикулНазвание
-
1277001018 Sealed TubeSealed Tube
-
2277001062 Tie Rod R.HTie Rod R.H
-
277001019 Tie Rod L.HTie Rod L.H
-
3277000998 Stabiliser FittingStabiliser Fitting
-
4277000977 Rod GrommetRod Grommet
-
5211000021 Phillips Screw #10 x 5/8''Phillips Screw #10 x 5/8''
-
6296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
7277000978 LeverLever
-
8277000979 ''U'' Lever''U'' Lever
-
9271000321 Venturi BushingVenturi Bushing
-
10207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
11293900042 Flanged BushingFlanged Bushing
-
12232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
13277000980 BushingBushing
-
14234082600 Flat Washer 8 mmFlat Washer 8 mm
-
15207382060 Hex. Screw M8 x 20 (Scotch Grip)Hex. Screw M8 x 20 (Scotch Grip)
-
16277000981 Support PlateSupport Plate
-
17241142560 Hex. Flanged Screw K40 x 25Hex. Flanged Screw K40 x 25
-
19277001106 Cylinder Support R.HCylinder Support R.H
-
277001105 Cylinder Support L.HCylinder Support L.H
-
20277000962 SpringSpring
-
21277001091 Pivot RodPivot Rod
-
22277000965 PistonPiston
-
23277000983 Split RingSplit Ring
-
24250400014 Spring PinSpring Pin
-
25277001081 Cover Ass'y. Includes 25 - 27.Cover Ass'y. Includes 25 - 27.
-
28209630960 Tapping Screw 3.9 x 9.5Tapping Screw 3.9 x 9.5
-
29293250119 SealSeal
-
30271001298 Elbow Ass'yElbow Ass'y
-
31276000001 Hose 12.5 mmHose 12.5 mm
-
32293650123 Oetiker ClampOetiker Clamp
-
33205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
34277000960 Side Vane R.HSide Vane R.H
-
277000959 Side Vane L.HSide Vane L.H
-
35205541660 Socket Screw M4 x 16 (Scotch Grip)Socket Screw M4 x 16 (Scotch Grip)
-
36250000077 Hex. Screw M8 x 110Hex. Screw M8 x 110
-
37232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
38276000101 Formed HoseFormed Hose
-
39293650130 Tridon Gear ClampTridon Gear Clamp
-
40277000999 Valve Ass'y. Includes 40 - 43.Valve Ass'y. Includes 40 - 43.
-
40277000990 Valve HousingValve Housing
-
41277000996 PistonPiston
-
42414542700 O-RingO-Ring
-
43277000967 Threaded CoverThreaded Cover
-
44211000021 Pillips Screw #10 x 5/8''Pillips Screw #10 x 5/8''
-
45293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
