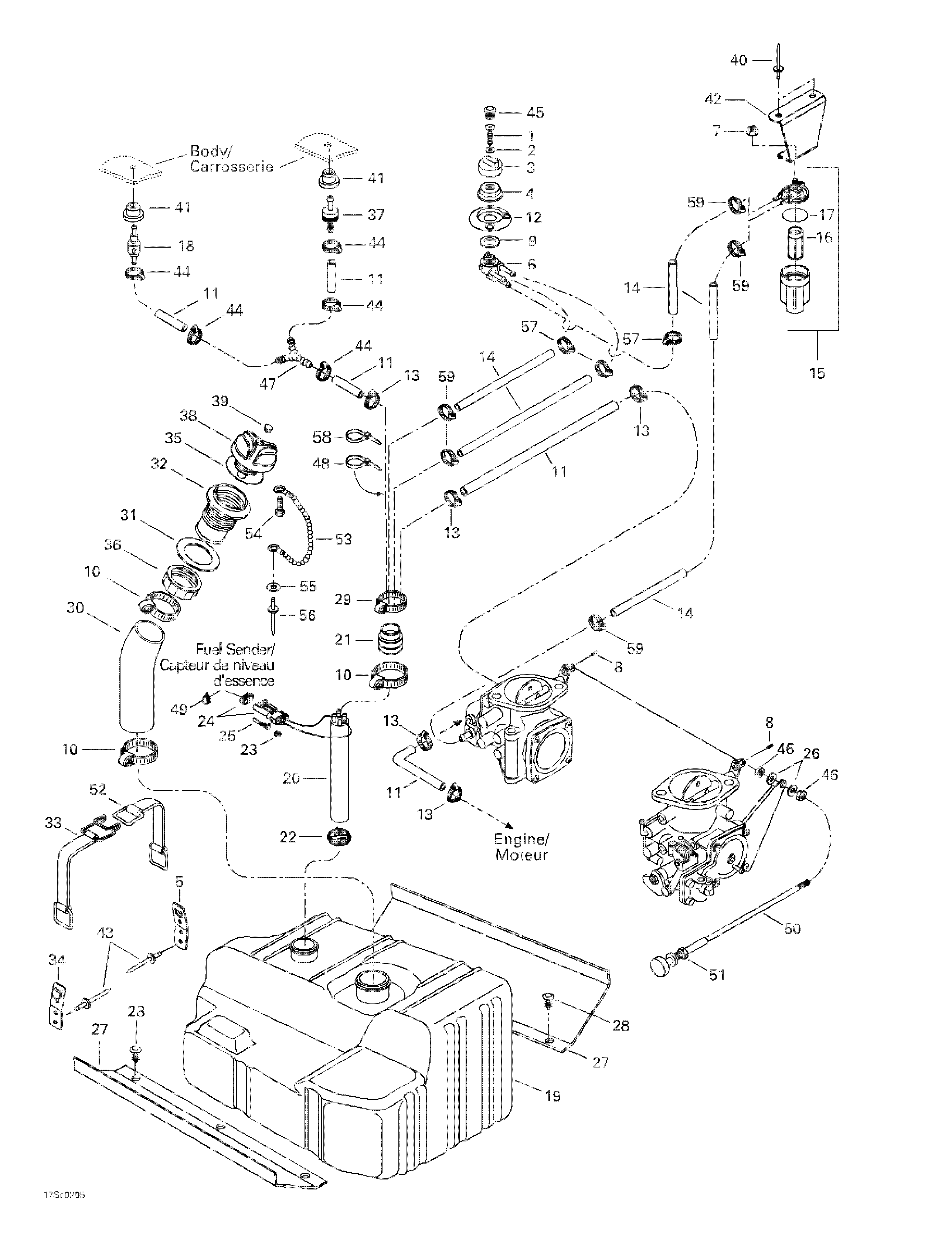

02- Fuel System для BRP GTX, 5587/5588 - 2002
-
№АртикулНазвание
-
1208640860 Countersunk Phillips Screw M4 x 8Countersunk Phillips Screw M4 x 8
-
2234040600 Washer 4 mmWasher 4 mm
-
3275500299 Fuel Valve KnobFuel Valve Knob
-
4212100009 Hex. Plastic NutHex. Plastic Nut
-
5293850024 Strap ClipStrap Clip
-
6275500554 Fuel ValveFuel Valve
-
7232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
8206540660 Socket Set Screw M4 x 6Socket Set Screw M4 x 6
-
9293250004 GasketGasket
-
10293650023 Tridon ClampTridon Clamp
-
11275500549 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
12275500285 Fuel Valve PlateFuel Valve Plate
-
13293650128 Tridon ClampTridon Clamp
-
14275500548 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
15275500358 Fuel Filter Ass'y. Includes 15 - 17.Fuel Filter Ass'y. Includes 15 - 17.
-
16275500089 Fuel FilterFuel Filter
-
17275500090 O-RingO-Ring
-
18275500479 Check ValveCheck Valve
-
19275500291 Fuel TankFuel Tank
-
20275500469 Baffle. Includes 20 - 25.Baffle. Includes 20 - 25.
-
21275500111 Tube AdapterTube Adapter
-
22275500397 Fuel FilterFuel Filter
-
23278000218 Wire SealWire Seal
-
24278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
25278000223 Female TerminalFemale Terminal
-
26234061600 Flat Washer 6 mmFlat Washer 6 mm
-
27293830077 Rubber PadRubber Pad
-
28293730006 Dart (Black)Dart (Black)
-
29293650035 Tridon ClampTridon Clamp
-
30275500301 Filler Hose NeckFiller Hose Neck
-
31293250029 GasketGasket
-
32275500231 Filler NeckFiller Neck
-
33293850037 Strap. Includes 33 - 34.Strap. Includes 33 - 34.
-
34293850024 Strap ClipStrap Clip
-
35293250075 GasketGasket
-
36211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
37275500398 Check ValveCheck Valve
-
38275500430 Fuel Tank Cap. Includes 38 - 39.Fuel Tank Cap. Includes 38 - 39.
-
39293000034 Snap CapSnap Cap
-
40293150043 Pop Rivet (3/16)Pop Rivet (3/16)
-
41293720029 GrommetGrommet
-
42275500287 Fuel Filter SupportFuel Filter Support
-
43293150037 Rivet 3/16Rivet 3/16
-
44293650025 Oetiker ClampOetiker Clamp
-
45275500241 Plug (Black)Plug (Black)
-
46232160600 Jam Nut M6Jam Nut M6
-
47293710059 > Fitting> Fitting
-
48414115200 Tie RapTie Rap
-
49293550004 Dielectric Grease, 400grDielectric Grease, 400gr
-
50270000383 Choke Cable. Includes 50 - 51.Choke Cable. Includes 50 - 51.
-
51211100030 NutNut
-
52293850036 StrapStrap
-
53275500518 ChainChain
-
54241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
55234032600 Flat Washer 3 mmFlat Washer 3 mm
-
56390407900 Rivet 1/8''Rivet 1/8''
-
57293650053 Crimp ClampCrimp Clamp
-
58293750008 Tie Rap 350 mmTie Rap 350 mm
-
59293650129 Tridon Gear ClampTridon Gear Clamp
