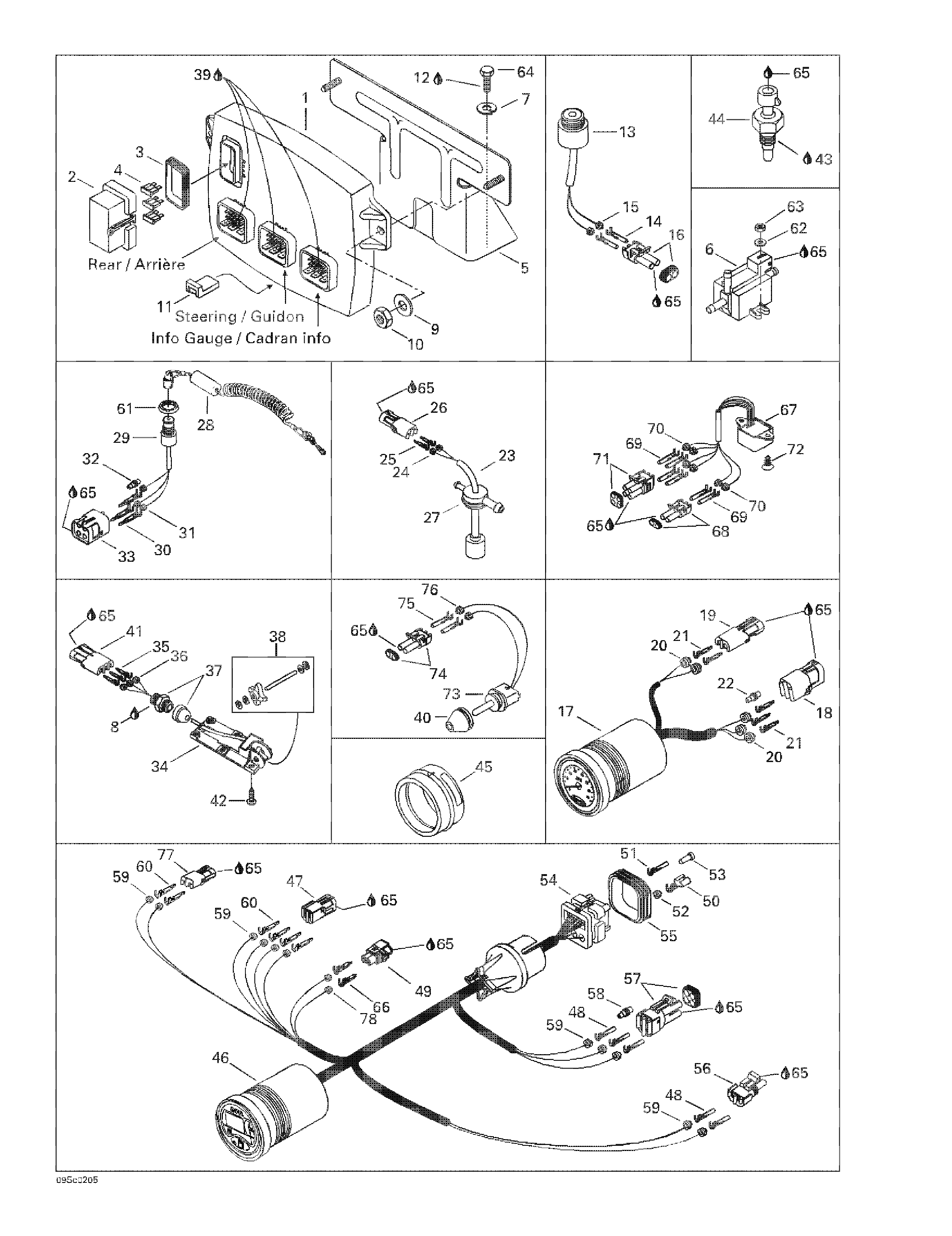

10- Electronic Module And Electrical Accessories для BRP GTX, 5587/5588 - 2002
-
№АртикулНазвание
-
1278001525 Electronic Module Ass'y. Includes 1 - 4.Electronic Module Ass'y. Includes 1 - 4.
-
2278001069 Fuse HolderFuse Holder
-
3278001070 SealSeal
-
4278000343 Fuse 15 AmpFuse 15 Amp
-
278000704 Fuse 7.5 AmpFuse 7.5 Amp
-
278000344 Fuse 5 AmpFuse 5 Amp
-
278001196 Fuse 3 AmpFuse 3 Amp
-
5278001131 Box Support Ass'yBox Support Ass'y
-
6270600005 Solenoid ValveSolenoid Valve
-
7211200043 Lock WasherLock Washer
-
8293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
9234062600 Flat Washer 6 mmFlat Washer 6 mm
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11278001166 Module ProtectorModule Protector
-
12293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
13278000881 Buzzer Ass'y. Includes 13 - 16.Buzzer Ass'y. Includes 13 - 16.
-
14278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
15278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
16278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
17278001435 Speedometer. Includes 17 - 22.Speedometer. Includes 17 - 22.
-
18278000890 Female Housing (4 Circuits)(Packard)Female Housing (4 Circuits)(Packard)
-
19278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
20278001065 Wire Seal(Packard)Wire Seal(Packard)
-
21278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
22278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
23278001402 Oil sensor. Includes 23 - 27.Oil sensor. Includes 23 - 27.
-
24278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
25278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
26278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
27293720008 GrommetGrommet
-
28278001543 Safety Landyard Ass'ySafety Landyard Ass'y
-
29278000977 Safety Switch. Includes 29 - 33.Safety Switch. Includes 29 - 33.
-
30278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
31278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
32278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
33278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
34278000849 Speed Sensor. Includes 34 - 38.Speed Sensor. Includes 34 - 38.
-
35278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
36278000218 Wire Seal (16 and 18 Gauge - Green)Wire Seal (16 and 18 Gauge - Green)
-
37293710031 Electrical ConnectorElectrical Connector
-
38295500108 Paddle Wheel KitPaddle Wheel Kit
-
39293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
-
40278001054 InsulatorInsulator
-
41278000281 Female Housing (3 Circuits)(Packard)Female Housing (3 Circuits)(Packard)
-
42250000020 Screw M5 x 10 (Scotch Grip)Screw M5 x 10 (Scotch Grip)
-
43293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
44278001016 Temperature SensorTemperature Sensor
-
45293720047 Gauge SupportGauge Support
-
46278001624 LCD Info Gauge. Includes 46 - 60.LCD Info Gauge. Includes 46 - 60.
-
47278000890 Female Housing (4 Circuit)(Packard)Female Housing (4 Circuit)(Packard)
-
48278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
49278001005 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
50278000994 Female Terminal(AMP)Female Terminal(AMP)
-
51278000995 Female Terminal(AMP)Female Terminal(AMP)
-
52278000996 Wire Seal(AMP)Wire Seal(AMP)
-
53293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
54278000993 Male Housing (26 Circuits) (AMP). Includes 54 - 55.Male Housing (26 Circuits) (AMP). Includes 54 - 55.
-
55278001307 Wire Seal (AMP)Wire Seal (AMP)
-
56278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
57278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
58278000216 Plug SealPlug Seal
-
59278001065 Wire Seal (20 Gauge)(Packard)Wire Seal (20 Gauge)(Packard)
-
60278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
61278000508 Safety Switch NutSafety Switch Nut
-
62234051600 Flat Washer 5 mmFlat Washer 5 mm
-
63232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
64211000023 Screw PlastiteScrew Plastite
-
65293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
66278000998 Female TerminalFemale Terminal
-
67278001243 Compass. Includes 67 - 71.Compass. Includes 67 - 71.
-
68278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
69278000223 Female Terminal (18 gauge)Female Terminal (18 gauge)
-
70278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
71278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
72293730016 DartDart
-
73270600000 Temperature Sensor. Includes 73 - 76.Temperature Sensor. Includes 73 - 76.
-
74278001005 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
75278000998 Female TerminalFemale Terminal
-
76278000999 Wire SealWire Seal
-
77278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
78278000999 Wire SealWire Seal
