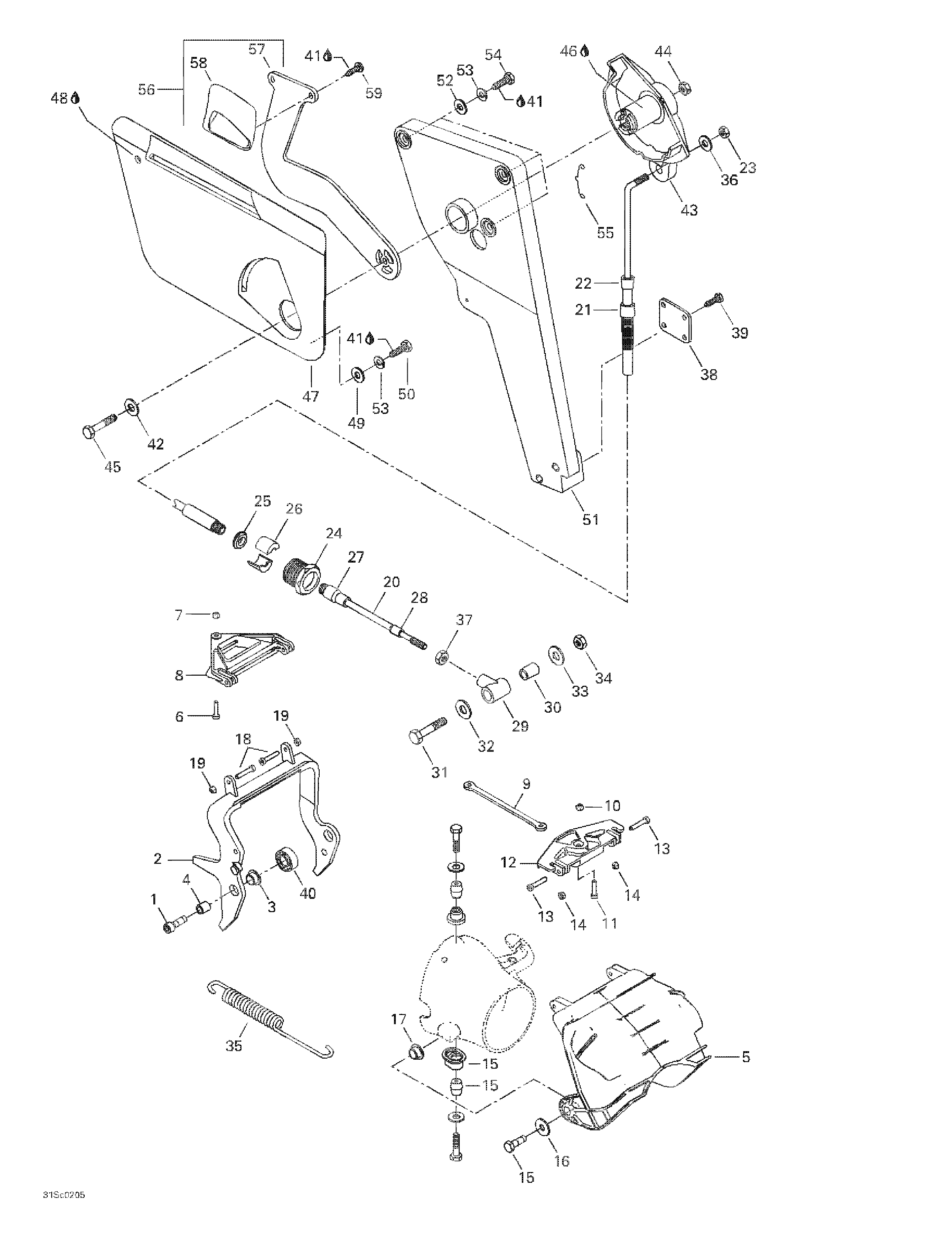

05- Reverse для BRP GTX, 5587/5588 - 2002
-
№АртикулНазвание
-
1250000026 Pivot Screw M8 x 25Pivot Screw M8 x 25
-
2271001012 Arm (Black)Arm (Black)
-
3271000321 Venturi BushingVenturi Bushing
-
4271001039 SpacerSpacer
-
5271001317 Reverse GateReverse Gate
-
6250000018 Pivot ScrewPivot Screw
-
7232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
8271001017 TriangleTriangle
-
9271001018 Connector RodConnector Rod
-
10232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
11250000018 Pivot ScrewPivot Screw
-
12271001312 Pivot RodPivot Rod
-
13250000023 Pivot ScrewPivot Screw
-
14232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
15207383060 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
16234082600 Flat Washer 8mmFlat Washer 8mm
-
17277001066 SpacerSpacer
-
18250000018 Pivot ScrewPivot Screw
-
19232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
20277000958 Reverse Cable. Includes 20 - 23.Reverse Cable. Includes 20 - 23.
-
21277000473 Boot (Large)Boot (Large)
-
22277000466 Boot (Small)Boot (Small)
-
23212000006 Elastic Stop Nut 10-32Elastic Stop Nut 10-32
-
24277000052 Cable LockCable Lock
-
25211100009 Rubber WasherRubber Washer
-
26277000055 Half RingHalf Ring
-
27277000473 Boot (Large)Boot (Large)
-
28277000466 Boot (Small)Boot (Small)
-
29277000854 JointJoint
-
30271001020 SpacerSpacer
-
31207063560 Hex. Cap Screw M6 x 35Hex. Cap Screw M6 x 35
-
32234062600 Flat Washer 6 mmFlat Washer 6 mm
-
33234061600 Flat Washer 6 mmFlat Washer 6 mm
-
34232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
35271001328 SpringSpring
-
36234051600 Washer 5 mmWasher 5 mm
-
37212100005 Nut 10-32Nut 10-32
-
38277001058 BracketBracket
-
39207153060 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
40293900038 BushingBushing
-
41293800060 Loctite 243, 10mlLoctite 243, 10ml
-
42234061600 Flat Washer 6 mmFlat Washer 6 mm
-
43271001204 Interior Lever. Includes 43 - 44.Interior Lever. Includes 43 - 44.
-
44232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
45207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
46293550010 Synthetic Grease, 400 grSynthetic Grease, 400 gr
-
47271001055 Housing Reverse HandleHousing Reverse Handle
-
48296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
49211200033 WasherWasher
-
50207151260 Screw Hex. M5 x 12Screw Hex. M5 x 12
-
51271001304 Reverse Cable SupportReverse Cable Support
-
52234052600 Washer 5 mmWasher 5 mm
-
53234151601 Lock Washer 5 mmLock Washer 5 mm
-
54207151660 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
55271000612 SpringSpring
-
56271000586 Handle Reverse Ass'y. Includes 56 - 59.Handle Reverse Ass'y. Includes 56 - 59.
-
57271000613 LeverLever
-
58271000614 Reverse HandleReverse Handle
-
59208451260 Screw M5 x 12Screw M5 x 12
