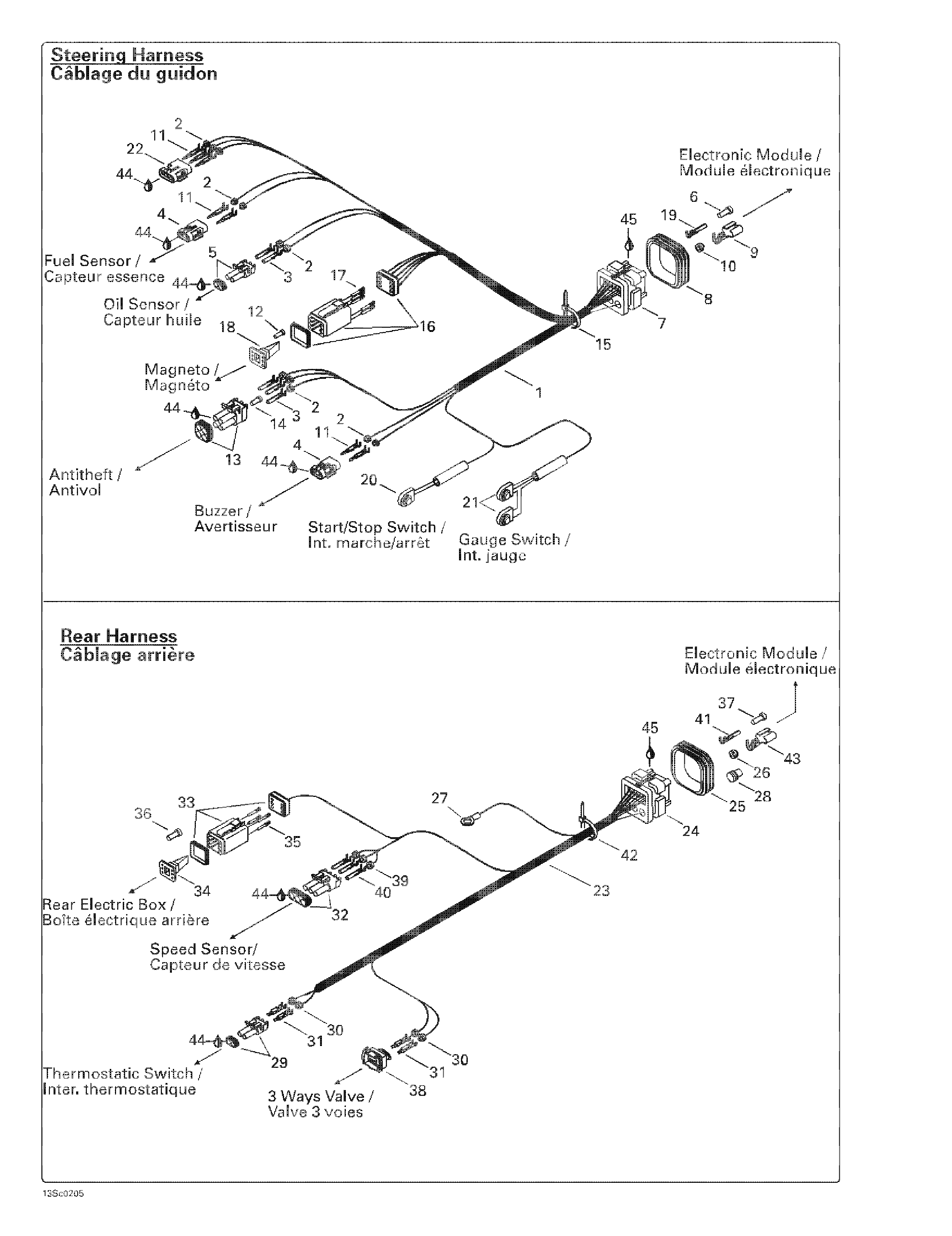

10- Electrical Harness для BRP GTX, 5587/5588 - 2002
-
№АртикулНазвание
-
1278001396 Steering Harness. Includes 1 - 22.Steering Harness. Includes 1 - 22.
-
2278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
3278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
4278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
5278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
6293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
7278001062 Male Housing (26 Circuits) (AMP). Includes 7 - 8.Male Housing (26 Circuits) (AMP). Includes 7 - 8.
-
8278001307 Wire Seal (AMP)Wire Seal (AMP)
-
9278000994 Female Terminal(AMP)Female Terminal(AMP)
-
10278000996 Wire Seal(AMP)Wire Seal(AMP)
-
11278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
12293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
13278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
14278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
16278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
17278000632 Female Terminal (16-18 Gauge)(Deutsch)Female Terminal (16-18 Gauge)(Deutsch)
-
18278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
19278000995 Female Terminal(AMP)Female Terminal(AMP)
-
20278001403 Stop/Start Switch Ass'yStop/Start Switch Ass'y
-
21278001375 Switch - Mode / SetSwitch - Mode / Set
-
22278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
23278001394 Rear Harness. Includes 23 - 43.Rear Harness. Includes 23 - 43.
-
24278001063 Male Housing (26 Circuits) (AMP). Includes 24 - 25.Male Housing (26 Circuits) (AMP). Includes 24 - 25.
-
25278001307 Wire Seal (AMP)Wire Seal (AMP)
-
26278000996 Wire Seal(AMP)Wire Seal(AMP)
-
27409003200 Open BarrelOpen Barrel
-
28409013900 Plug(AMP)Plug(AMP)
-
29278001005 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
30278000999 Wire Seal(AMP)Wire Seal(AMP)
-
31278000998 Female Terminal(AMP)Female Terminal(AMP)
-
32278000273 Male Housing (3 Circuits)(Packard)Male Housing (3 Circuits)(Packard)
-
33278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
34278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
35278000632 Female Terminal (16-18 Gauge) (Deutsch)Female Terminal (16-18 Gauge) (Deutsch)
-
36293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
37293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
38278001003 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
39278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
40278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
41278000995 Female Terminal(AMP)Female Terminal(AMP)
-
42293750002 Tie Rap 130 mmTie Rap 130 mm
-
43278000994 Female Terminal(AMP)Female Terminal(AMP)
-
44293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
45293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
