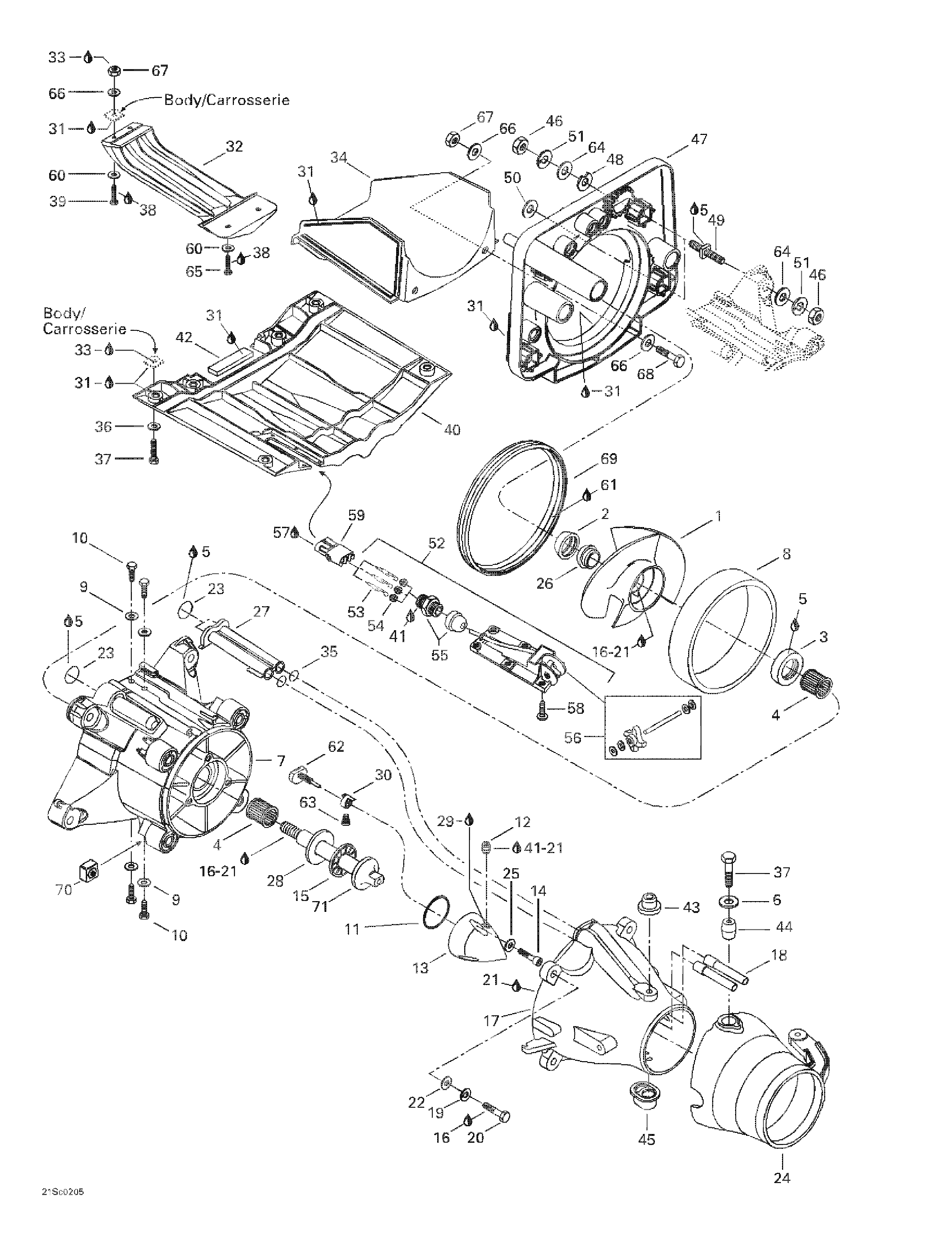

05- Propulsion System для BRP GTX, 5587/5588 - 2002
-
№АртикулНазвание
-
1271001128 Stainless Steel Impeller Ass'yStainless Steel Impeller Ass'y
-
2271000516 Impeller BootImpeller Boot
-
3293200065 SealSeal
-
4293350017 Needle BearingNeedle Bearing
-
5293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
6293050001 Washer 8 mmWasher 8 mm
-
7271001380 Impeller Housing Ass'y. Includes 7 - 9.Impeller Housing Ass'y. Includes 7 - 9.
-
8271000653 Wear-RingWear-Ring
-
9234051600 Flat Washer 5 mmFlat Washer 5 mm
-
10250000040 Screw 10-14 X 3/8''Screw 10-14 X 3/8''
-
11293300011 O-RingO-Ring
-
12211500001 Pipe Plug Socket 1/8-27 NPTPipe Plug Socket 1/8-27 NPT
-
13271001250 Impeller CoverImpeller Cover
-
14205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
15293350022 Thrust BearingThrust Bearing
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17271001194 Venturi (Black)Venturi (Black)
-
18271001133 Siphon TubeSiphon Tube
-
19234181601 Lock Washer 8 mmLock Washer 8 mm
-
20207084560 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
21293800041 Primer LoctitePrimer Loctite
-
22234081600 Flat Washer 8 mmFlat Washer 8 mm
-
23293250084 O-RingO-Ring
-
24271001197 Steering Nozzle Ass'y (Black)Steering Nozzle Ass'y (Black)
-
25234061600 Flat Washer 6 mmFlat Washer 6 mm
-
26271000517 RingRing
-
27271000785 Water OutletWater Outlet
-
28293350020 Thrust WasherThrust Washer
-
29293600011 Synthetic OilSynthetic Oil
-
30271001107 SliderSlider
-
31293800066 Sealant, Loctite 5900, 300mlSealant, Loctite 5900, 300ml
-
32271000790 Inlet GrateInlet Grate
-
33296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
34271000792 ShoeShoe
-
35293300013 O-RingO-Ring
-
36234081600 Washer 8 mmWasher 8 mm
-
37207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
38293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
39207164060 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
40271000712 Riding PlateRiding Plate
-
41293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
42293200003 SealSeal
-
43293900001 Bushing (Venturi)Bushing (Venturi)
-
44271000122 SleeveSleeve
-
45293900010 Bushing PlasticBushing Plastic
-
46232001600 Nut M10Nut M10
-
47271000950 Pump SupportPump Support
-
48272000053 ShimShim
-
49250300010 StudStud
-
50234001600 Washer 10 mmWasher 10 mm
-
51234101601 Lock Washer 10 mmLock Washer 10 mm
-
52278000849 Speed Sensor. Includes 52 - 56.Speed Sensor. Includes 52 - 56.
-
53278000222 Male Terminal (18 gauge)Male Terminal (18 gauge)
-
54278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
55293710031 Electric ConnectorElectric Connector
-
56295500108 Paddle Wheel KitPaddle Wheel Kit
-
57293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
58250000020 Screw M5 x 10 (Scotch Grip)Screw M5 x 10 (Scotch Grip)
-
59278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
60234061600 Flat Washer 6 mmFlat Washer 6 mm
-
61413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
62271001124 PusherPusher
-
63271001108 SpringSpring
-
64234002600 Flat Washer 10 mmFlat Washer 10 mm
-
65207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
66234062600 Flat Washer 6 mmFlat Washer 6 mm
-
67232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
68207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
69293200051 Neoprene SealNeoprene Seal
-
70211100033 Square NutSquare Nut
-
71271000965 Impeller ShaftImpeller Shaft
