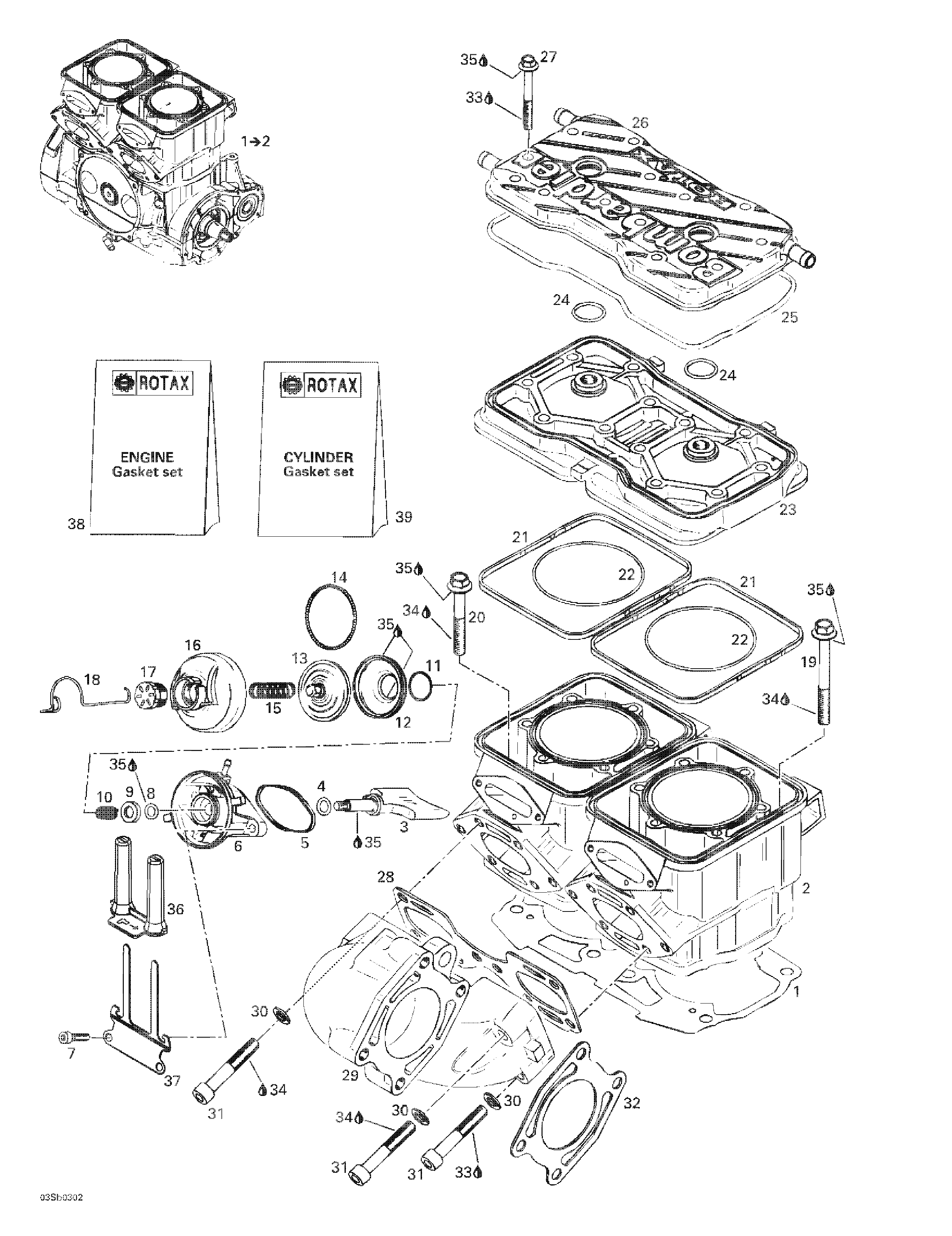

01- Cylinder, Exhaust Manifold для BRP GTI LE RFI, 6103/6104 - 2003
-
№АртикулНазвание
-
1420078703 Short Block > Ass'y (SIlver, 6104). Includes 1 - 2.Short Block > Ass'y (SIlver, 6104). Includes 1 - 2.
-
420078706 Short Block > Ass'y (Black, 6103)Short Block > Ass'y (Black, 6103)
-
420931728 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
420931726 Gasket Cylinder 0.4 mmGasket Cylinder 0.4 mm
-
420931725 Gasket Cylinder 0.3 mmGasket Cylinder 0.3 mm
-
2420923846 Cylinder with Sleeve (Silver, 6104)Cylinder with Sleeve (Silver, 6104)
-
420923847 Cylinder with Sleeve (Black, 6103)Cylinder with Sleeve (Black, 6103)
-
3420854354 Exhaust ValveExhaust Valve
-
4420931765 O-RingO-Ring
-
5420931670 GasketGasket
-
6420854438 Valve Housing (6104)Valve Housing (6104)
-
420854436 Valve Housing (6103)Valve Housing (6103)
-
7205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
8420931765 O-RingO-Ring
-
9420926225 Supporting RingSupporting Ring
-
10420838260 Compression SpringCompression Spring
-
11420838253 Spring ClampSpring Clamp
-
12420260723 BellowsBellows
-
13420854446 Exhaust ValveExhaust Valve
-
14420239048 SpringSpring
-
15420939137 Compression SpringCompression Spring
-
16420911558 Valve CoverValve Cover
-
17420241221 Adjustment ScrewAdjustment Screw
-
18420838083 Spring ClipSpring Clip
-
19420941903 Hex. Flanged Screw M10 x 105Hex. Flanged Screw M10 x 105
-
20420941333 Hex. Flanged Screw M10 x 75Hex. Flanged Screw M10 x 75
-
21420931420 Rubber RingRubber Ring
-
22420931410 O-RingO-Ring
-
23420923308 Head Cylinder (Silver, 6104)Head Cylinder (Silver, 6104)
-
420923309 Head Cylinder (Black, 6103)Head Cylinder (Black, 6103)
-
24420430782 O-RingO-Ring
-
25420831550 O-RingO-Ring
-
26420923313 Cylinder Head Cover (Silver, 6104)Cylinder Head Cover (Silver, 6104)
-
420923316 Cylinder Head Cover (Black, 6103)Cylinder Head Cover (Black, 6103)
-
27420240728 Flanged Hex. Screw M8 x 60Flanged Hex. Screw M8 x 60
-
28420931481 GasketGasket
-
29420979484 Exhaust Manifold (Silver, 6104)Exhaust Manifold (Silver, 6104)
-
420979483 Exhaust Manifold (Black, 6103)Exhaust Manifold (Black, 6103)
-
30234101601 Lock Washer 10 mmLock Washer 10 mm
-
31205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
32420931503 GasketGasket
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
35413707000 Molykote 111Molykote 111
-
36278001512 InsolatorInsolator
-
37278001662 Ground PlateGround Plate
-
38420886392 Engine Gasket SetEngine Gasket Set
-
39420886396 Cylinder Gasket SetCylinder Gasket Set
