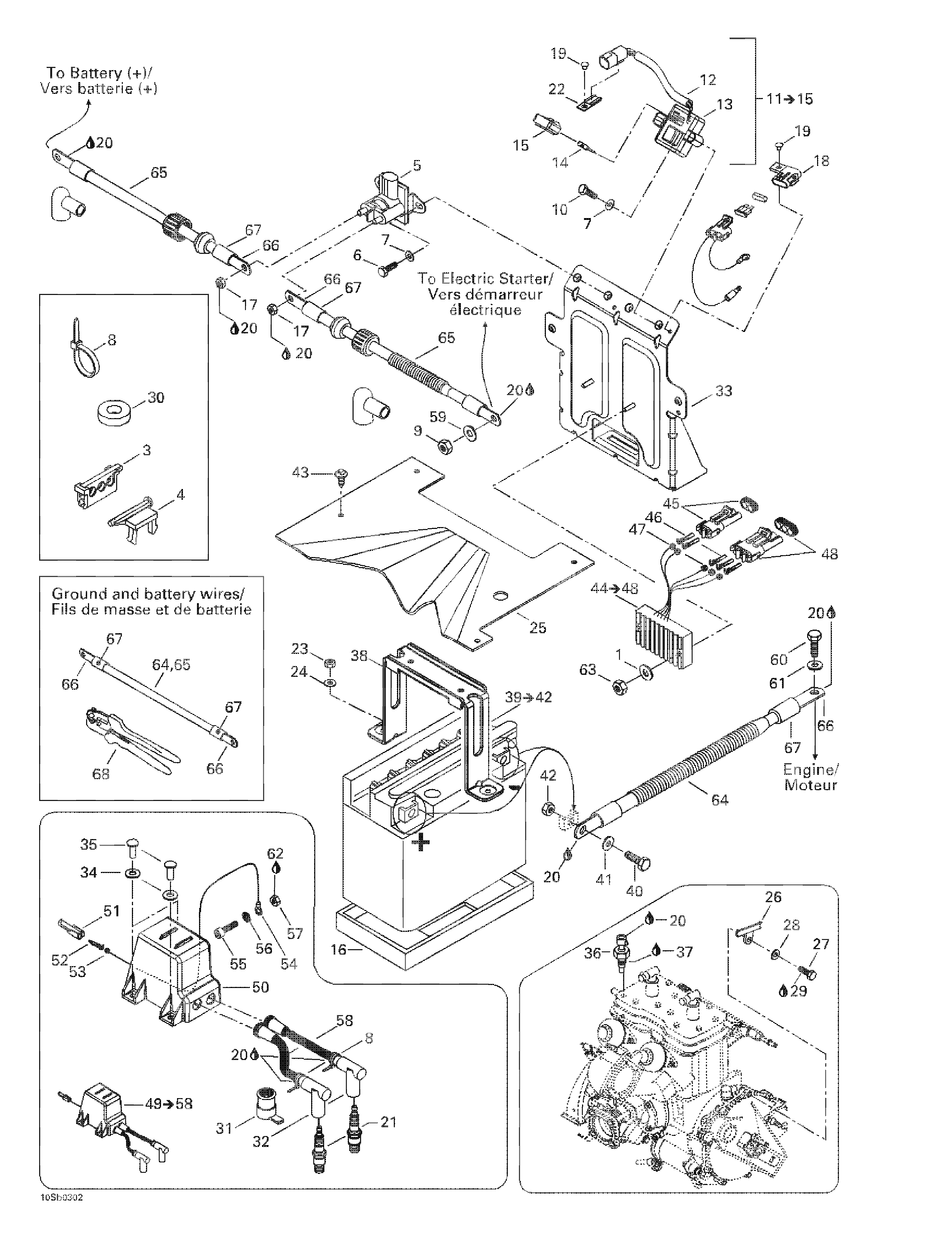

10- Electrical Box And Battery для BRP GTI LE RFI, 6103/6104 - 2003
-
№АртикулНазвание
-
1234061600 Flat WasherFlat Washer
-
2278001712 Electrical Box BaseElectrical Box Base
-
3278000245 3 Wire Support3 Wire Support
-
4278001096 Collar SupportCollar Support
-
5278001802 Starter RelayStarter Relay
-
6207361260 Hex. Screw (Scotch Grip) M6 x 12Hex. Screw (Scotch Grip) M6 x 12
-
7234062600 Flat Washer M6Flat Washer M6
-
8293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Locking Tie 142 mmLocking Tie 142 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie RapTie Rap
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10207363060 Hex. Screw (Scotch Grip) M6 x 30Hex. Screw (Scotch Grip) M6 x 30
-
11278001783 Starter Relay. Includes 11 - 15.Starter Relay. Includes 11 - 15.
-
12278000805 CushionCushion
-
16278001746 Battery Lower PadBattery Lower Pad
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18278001326 Fuse Holder CapFuse Holder Cap
-
19204000081 Pop-Rivet 3/16Pop-Rivet 3/16
-
20293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
21278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
22270000141 ClipClip
-
23232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
24234082600 Flat Washer M8Flat Washer M8
-
25275500577 ProtectorProtector
-
26278001873 ClipClip
-
27207363060 Hex. Screw (Scotch Grip) M6 x 30Hex. Screw (Scotch Grip) M6 x 30
-
28234061600 Flat Washer M6Flat Washer M6
-
29293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
30250200038 Brass WasherBrass Washer
-
31278001380 Protector CapProtector Cap
-
32278000237 Spark Plug CapSpark Plug Cap
-
33278001856 Box SupportBox Support
-
34234061600 Flat Washer 6 mmFlat Washer 6 mm
-
35209663260 Tapping Screw M6.3 x 32Tapping Screw M6.3 x 32
-
36278001016 Temperature SensorTemperature Sensor
-
37293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
38278001677 Battery SupportBattery Support
-
39278001756 Battery. Includes 39 - 42.Battery. Includes 39 - 42.
-
40211000045 Hex. ScrewHex. Screw
-
41211200018 Flat Washer 6 mmFlat Washer 6 mm
-
42211100022 Nut M6Nut M6
-
43293730018 Mount DartMount Dart
-
44278001554 Rectifier Ass'y. Includes 44 - 48.Rectifier Ass'y. Includes 44 - 48.
-
45278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
46409007300 Female TerminalFemale Terminal
-
47278000218 Wire SealWire Seal
-
48278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
49278001545 Ignition Coil ass'y. Includes 49 - 58.Ignition Coil ass'y. Includes 49 - 58.
-
50278001546 Ignition CoilIgnition Coil
-
51278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
52409004300 Male TerminalMale Terminal
-
53278000218 Wire SealWire Seal
-
54409003200 Open BarrelOpen Barrel
-
55205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
56394001900 Ext. Tooth Lock WasherExt. Tooth Lock Washer
-
57232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
58278001464 Spark Plug Wire (270 mm)Spark Plug Wire (270 mm)
-
278001465 Spark Plug Wire (320 mm)Spark Plug Wire (320 mm)
-
59234061600 Flat Washer 6 mmFlat Washer 6 mm
-
60207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
61234081600 Flat Washer 8 mmFlat Washer 8 mm
-
62293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
63232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
64278001850 Ground Cable, Black. Includes 66,67Ground Cable, Black. Includes 66,67
-
65278001803 Battery Positive Cable, Red. Includes 66,67Battery Positive Cable, Red. Includes 66,67
-
65278001804 Starter Positive Cable, Red. Includes 66,67Starter Positive Cable, Red. Includes 66,67
