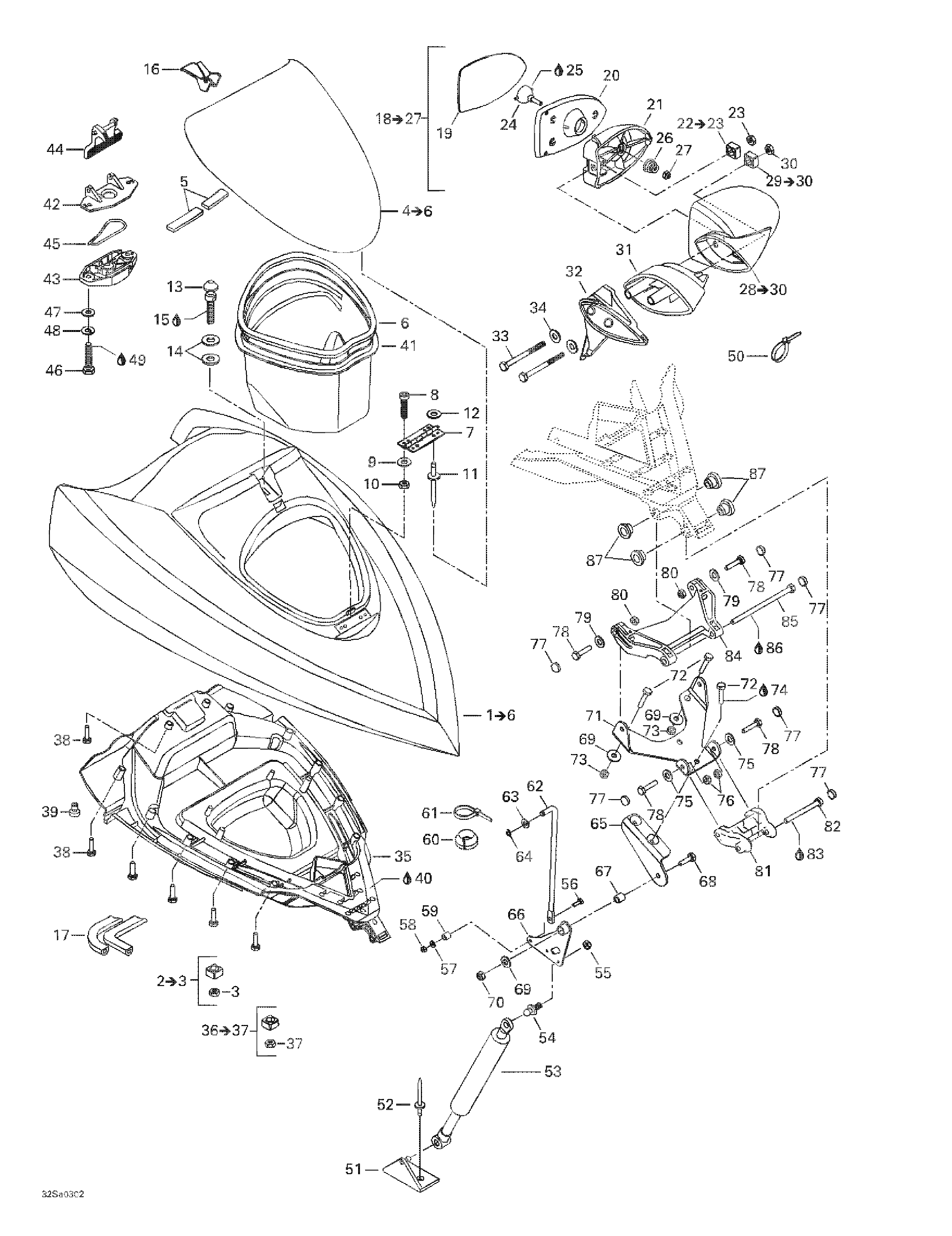

09- Front Storage Compartment для BRP GTI LE RFI, 6103/6104 - 2003
-
№АртикулНазвание
-
1269501180 CoverCover
-
2269500252 Nut Housing Ass'y. Includes 2 - 3.Nut Housing Ass'y. Includes 2 - 3.
-
3232061600 Nut M6Nut M6
-
4269501185 Access Cover. Includes 4 - 6.Access Cover. Includes 4 - 6.
-
5293200003 Tray Seal (Meter)Tray Seal (Meter)
-
6293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
7269500338 HingeHinge
-
8205451660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
9234052600 Flat Washer 5 mmFlat Washer 5 mm
-
10232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
11204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
12234052600 Flat Washer 5 mmFlat Washer 5 mm
-
13291001242 Latch StudLatch Stud
-
14234062600 Flat Washer 6 mmFlat Washer 6 mm
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16269501125 LatchLatch
-
17293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
18269500685 R.H. Mirror Ass'y. Includes 18 - 27.R.H. Mirror Ass'y. Includes 18 - 27.
-
269500788 L.H. Mirror Ass'yL.H. Mirror Ass'y
-
19269500687 R.H. MirrorR.H. Mirror
-
269500688 L.H. MirrorL.H. Mirror
-
20269500697 Frame MirrorFrame Mirror
-
21269500807 Housing SupportHousing Support
-
22269500813 Nut Housing Ass'y. Includes 22 - 23.Nut Housing Ass'y. Includes 22 - 23.
-
23232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
24269500079 Mirror Ball JointMirror Ball Joint
-
25293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
26269500453 Mirror SpringMirror Spring
-
27232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
28269501182 Mirror Shell. Includes 28 - 30.Mirror Shell. Includes 28 - 30.
-
29269500813 Nut Housing Ass'y. Includes 29 - 30.Nut Housing Ass'y. Includes 29 - 30.
-
30232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
31269501183 R.H. Mirror SupportR.H. Mirror Support
-
269501184 L.H. Mirror SupportL.H. Mirror Support
-
32269500792 R.H. SpacerR.H. Spacer
-
269500793 L.H. SpacerL.H. Spacer
-
33230082060 Hex. Screw M8 x 120Hex. Screw M8 x 120
-
34234082600 Flat Washer 8 mmFlat Washer 8 mm
-
35269500000 Lower Storage CoverLower Storage Cover
-
36269500252 Nut Housing Ass'y. Includes 36 - 37.Nut Housing Ass'y. Includes 36 - 37.
-
37232061600 Hex. Nut M6Hex. Nut M6
-
38241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
39293830005 Rubber PlugRubber Plug
-
40413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
41269501121 Gloves BoxGloves Box
-
42269700076 Latch CoverLatch Cover
-
43269000015 Latch BaseLatch Base
-
44269700077 Latch LeverLatch Lever
-
45269700017 Latch SpringLatch Spring
-
46207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
47234061600 Flat Washer 6 mmFlat Washer 6 mm
-
48234161601 Lock Washer 6 mmLock Washer 6 mm
-
49293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
50293750008 Tie Rap 350 mmTie Rap 350 mm
-
51291001618 Shock SupportShock Support
-
52293150037 Advel RivetAdvel Rivet
-
53269500988 Gaz ShockGaz Shock
-
54250300016 Ball StudBall Stud
-
55232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
56207141660 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
57234041600 Flat Washer 4 mmFlat Washer 4 mm
-
58232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
59269500841 SpacerSpacer
-
60293720063 Cable GrommetCable Grommet
-
61414115200 Tie RapTie Rap
-
62269500842 RodRod
-
63234061600 Flat Washer 6 mmFlat Washer 6 mm
-
64293370005 Circlip 6 mmCirclip 6 mm
-
65269500846 Support LeverSupport Lever
-
66269501020 LeverLever
-
67269501022 SpacerSpacer
-
68207163060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
69234062600 Flat Washer 6 mmFlat Washer 6 mm
-
70232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
71269500703 Pivot SupportPivot Support
-
72207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
73232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
74293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
75234061600 Flat Washer 6 mmFlat Washer 6 mm
-
76232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
77414436900 Snap Cap (Black)Snap Cap (Black)
-
78211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
79234061600 Flat Washer 6 mmFlat Washer 6 mm
-
80232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
81269500704 Front ArmFront Arm
-
82207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
83293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
84269500705 Rear ArmRear Arm
-
85230060060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
86293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
87269500706 SleeveSleeve
