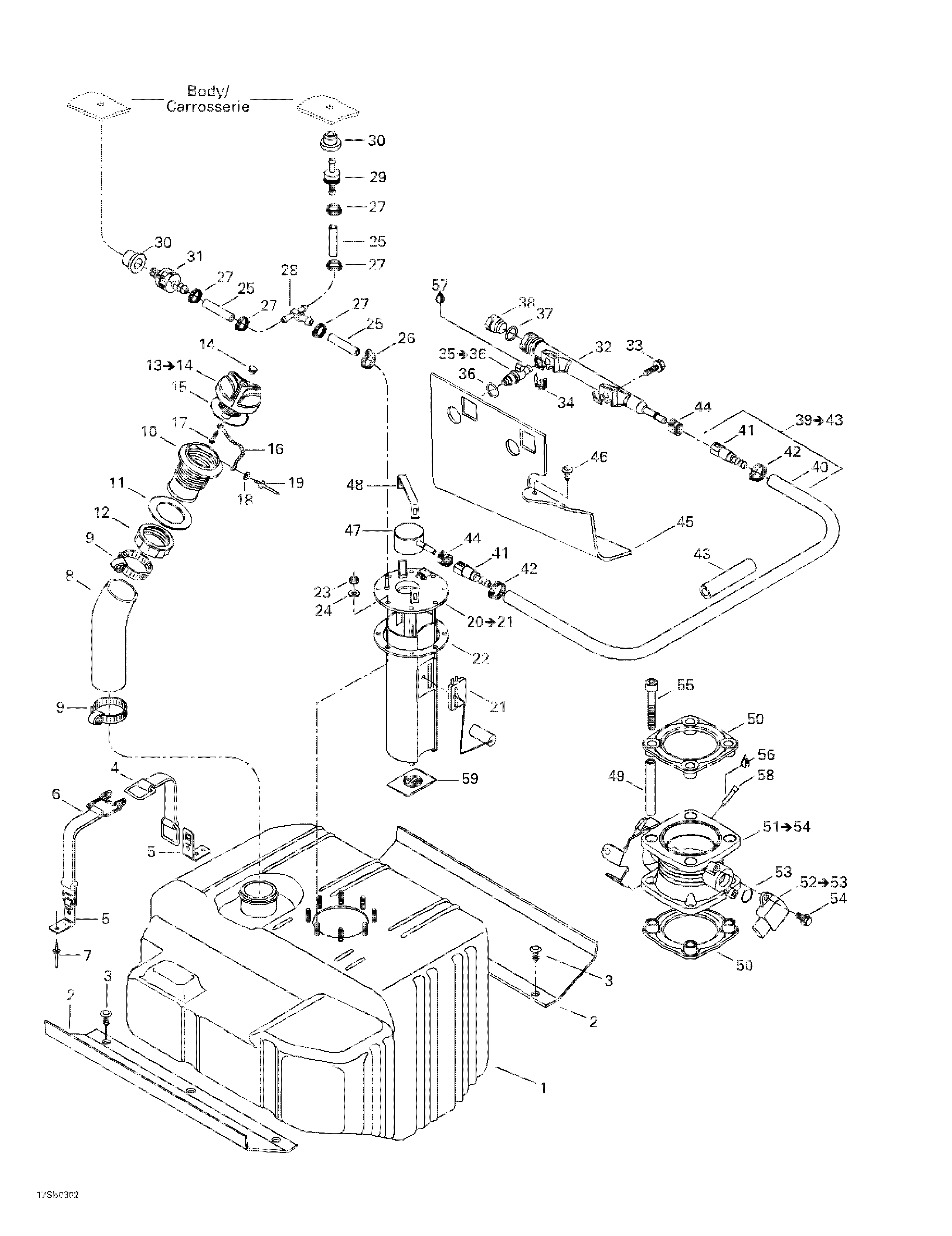

02- Fuel System для BRP GTI LE RFI, 6103/6104 - 2003
-
№АртикулНазвание
-
1275500427 Fuel TankFuel Tank
-
2293830077 Rubber PadRubber Pad
-
3293730006 Dart (Black)Dart (Black)
-
4293850036 StrapStrap
-
5293850076 Strap ClipStrap Clip
-
6293850038 StrapStrap
-
7293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
8275500434 Filler Neck HoseFiller Neck Hose
-
9293650023 Tridon ClampTridon Clamp
-
10275500231 Filler NeckFiller Neck
-
11293250029 GasketGasket
-
12211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
13275500430 Fuel Tank Cap. Includes 13 - 14.Fuel Tank Cap. Includes 13 - 14.
-
14293000034 Snap Cap (Black)Snap Cap (Black)
-
15293250075 GasketGasket
-
16275500518 chainechaine
-
17241140060 Screw K40 x 10Screw K40 x 10
-
18234032600 Flat Washer 3 mmFlat Washer 3 mm
-
19390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
20270600089 Fuel Pump Module. Includes 20 - 21.Fuel Pump Module. Includes 20 - 21.
-
21270600012 Sensor LevelSensor Level
-
22293250088 GasketGasket
-
23232551200 Elastic Stop Nut M5Elastic Stop Nut M5
-
24234052400 Flat Washer 5 mmFlat Washer 5 mm
-
25275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
26293650128 Tridon ClampTridon Clamp
-
27293650050 Oetiker ClampOetiker Clamp
-
28293710059 Y-FittingY-Fitting
-
29275500398 Check ValveCheck Valve
-
30293720029 GrommetGrommet
-
31275500505 Check ValveCheck Valve
-
32270600008 Fuel RailFuel Rail
-
33207562560 Hex. Flanged Screw M6 x 25 (Scotch Grip)Hex. Flanged Screw M6 x 25 (Scotch Grip)
-
34270600010 Injector CirclipInjector Circlip
-
35270600017 Injector. Includes 35 - 36.Injector. Includes 35 - 36.
-
36293300071 O-RingO-Ring
-
37293300042 O-RingO-Ring
-
38270600009 CapCap
-
39275500573 Hose Ass'y. Includes 39 - 43.Hose Ass'y. Includes 39 - 43.
-
40275500563 Hose 1/4 '' (Meter)Hose 1/4 '' (Meter)
-
41275500428 Connector BoxConnector Box
-
42293650047 Oetiker ClampOetiker Clamp
-
43275500578 Shrink TubingShrink Tubing
-
44275500429 Connector StopperConnector Stopper
-
45275500441 Rail ProtectorRail Protector
-
46293730018 Mount DartMount Dart
-
49275500352 Spacer TubeSpacer Tube
-
50293250071 GasketGasket
-
52270000251 Position Sensor. Includes 52 - 53.Position Sensor. Includes 52 - 53.
-
53270000544 O-RingO-Ring
-
54270600078 Potentiometer Screw M4Potentiometer Screw M4
-
55205569060 Socket Head Screw M6 x 90 (Scotch Grip)Socket Head Screw M6 x 90 (Scotch Grip)
-
56293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
57293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
58205063060 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
59219700368 Lower FilterLower Filter
