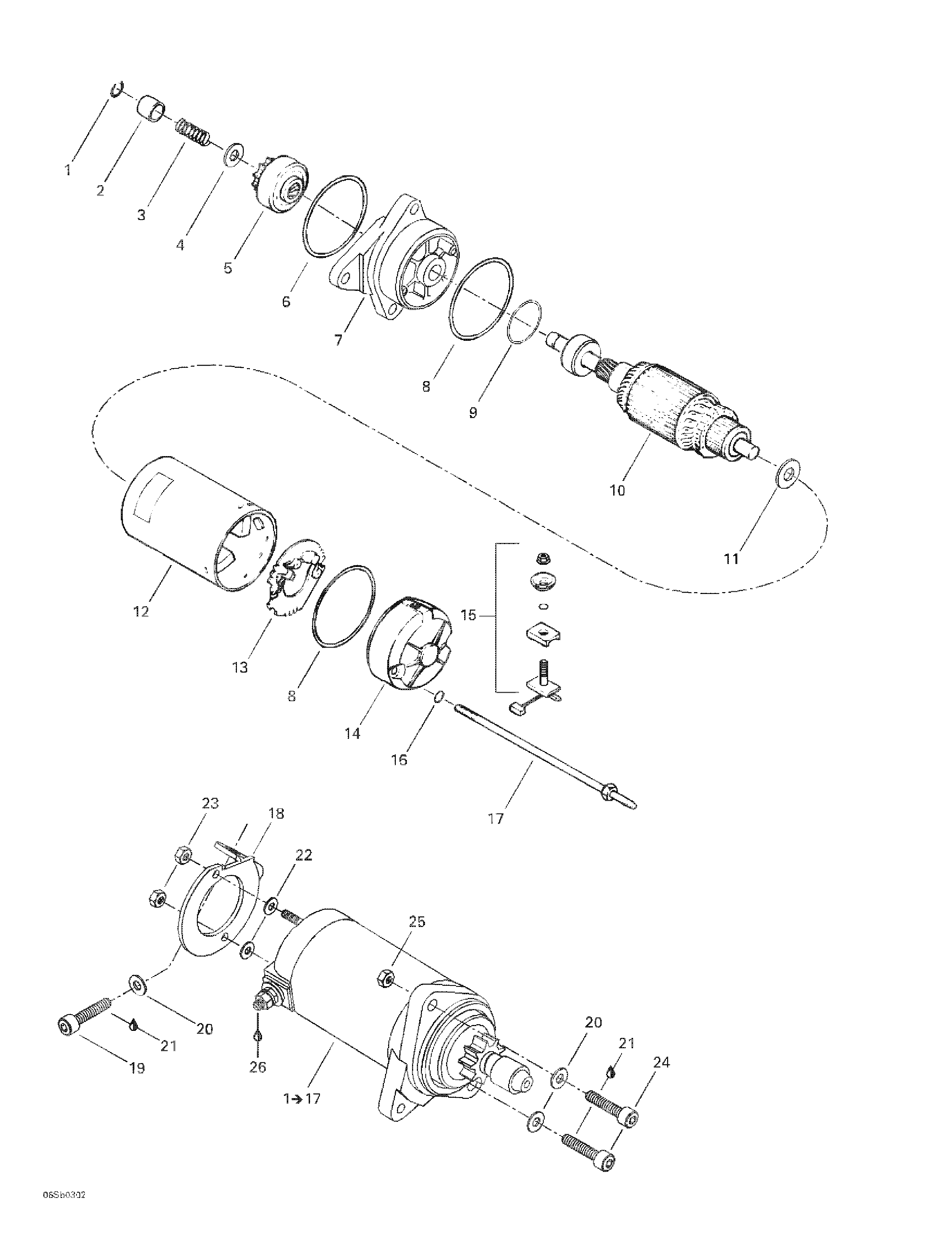

04- Starter для BRP GTI LE RFI, 6103/6104 - 2003
-
№АртикулНазвание
-
1278001497 Starter Ass'y. Includes 1 - 17.Starter Ass'y. Includes 1 - 17.
-
1410207700 CirclipCirclip
-
2278000254 Stopper BushingStopper Bushing
-
4278001105 Flat WasherFlat Washer
-
5278001106 Starter Clutch Ass'yStarter Clutch Ass'y
-
6278000694 O-RingO-Ring
-
7278001520 Housing Ass'yHousing Ass'y
-
8278000695 O-RingO-Ring
-
9278000696 O-RingO-Ring
-
10278001108 ArmatureArmature
-
11278000056 Thrust WasherThrust Washer
-
12278001109 Yoke Ass'yYoke Ass'y
-
13278001296 Brush HolderBrush Holder
-
14278001111 Rear CoverRear Cover
-
15278001298 Brush Starter KitBrush Starter Kit
-
16278000060 O-RingO-Ring
-
17278000170 Retainer StudRetainer Stud
-
18270000467 Starter SupportStarter Support
-
19205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
20234081600 Flat Washer 8 mmFlat Washer 8 mm
-
21413705200 Loctite 262, 50 mlLoctite 262, 50 ml
-
22234051600 Flat Washer 5 mmFlat Washer 5 mm
-
23232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
24205084560 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
25232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
