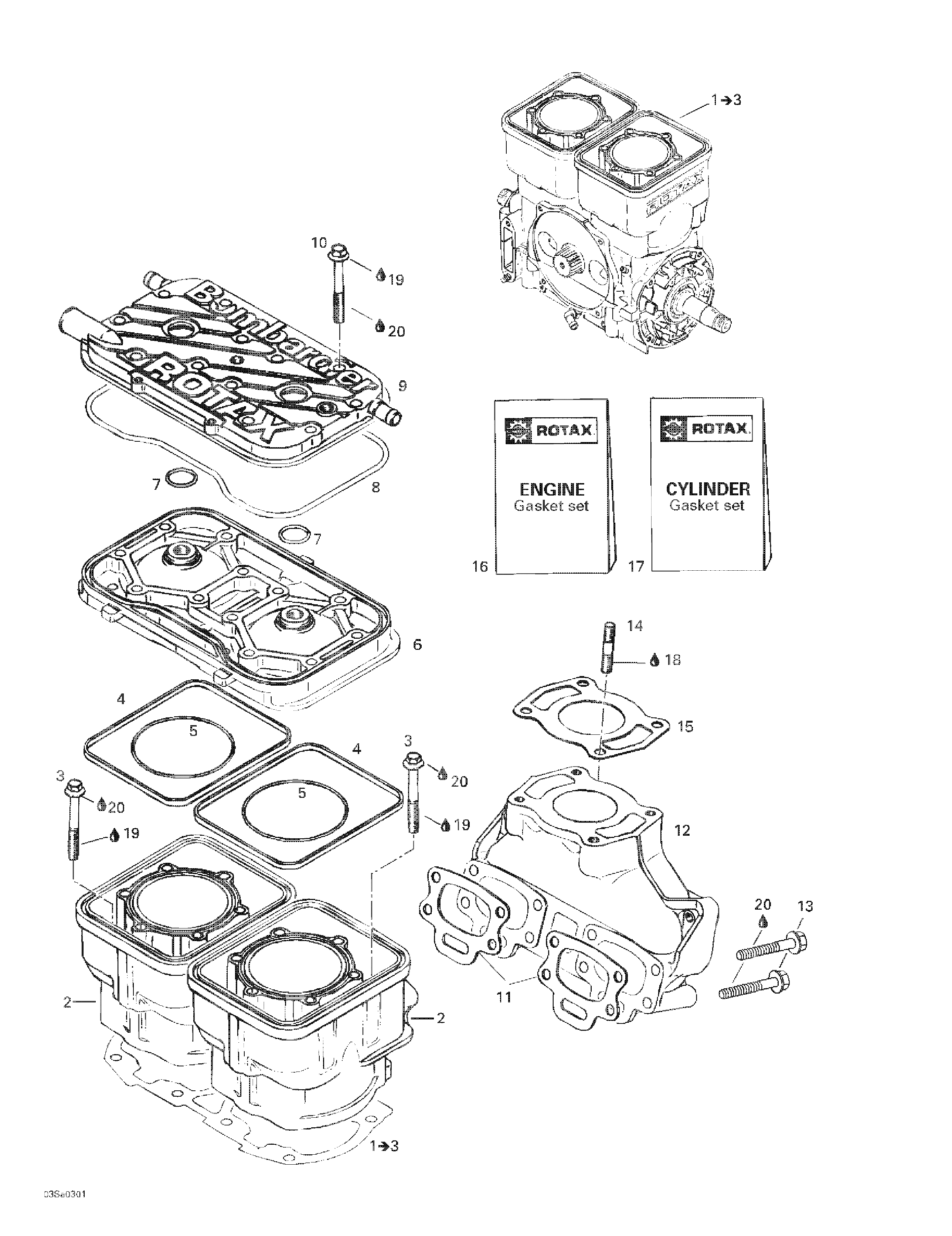

01- Cylinder, Exhaust Manifold для BRP GTI LE - 2003
-
№АртикулНазвание
-
1420071703 Short Block Ass'y (Silver). Includes 1 - 3.Short Block Ass'y (Silver). Includes 1 - 3.
-
1420931404 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
420931403 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
420931402 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
420931401 Gasket Cylinder 0.4 mmGasket Cylinder 0.4 mm
-
420931400 Gasket Cylinder 0.3 mmGasket Cylinder 0.3 mm
-
2420923805 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3420440368 Hex. Flanged Screw M8 x 90Hex. Flanged Screw M8 x 90
-
4420850045 Rubber RingRubber Ring
-
5420931410 O-RingO-Ring
-
6420923252 Head Cylinder (Silver)Head Cylinder (Silver)
-
7420430782 O-RingO-Ring
-
8420950360 O-RingO-Ring
-
9420923262 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
10420841998 Hex. Flanged Screw M8 x 68.5Hex. Flanged Screw M8 x 68.5
-
11420850638 GasketGasket
-
12420979146 Exhaust ManifoldExhaust Manifold
-
13420841998 Hex. Flanged Screw M8 x 68.5Hex. Flanged Screw M8 x 68.5
-
14420940798 Stud M10 x 25Stud M10 x 25
-
15420950255 GasketGasket
-
16420886319 Engine Gasket SetEngine Gasket Set
-
17420886318 Cylinder Gasket SetCylinder Gasket Set
-
18413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20413707000 Molykote 111Molykote 111
