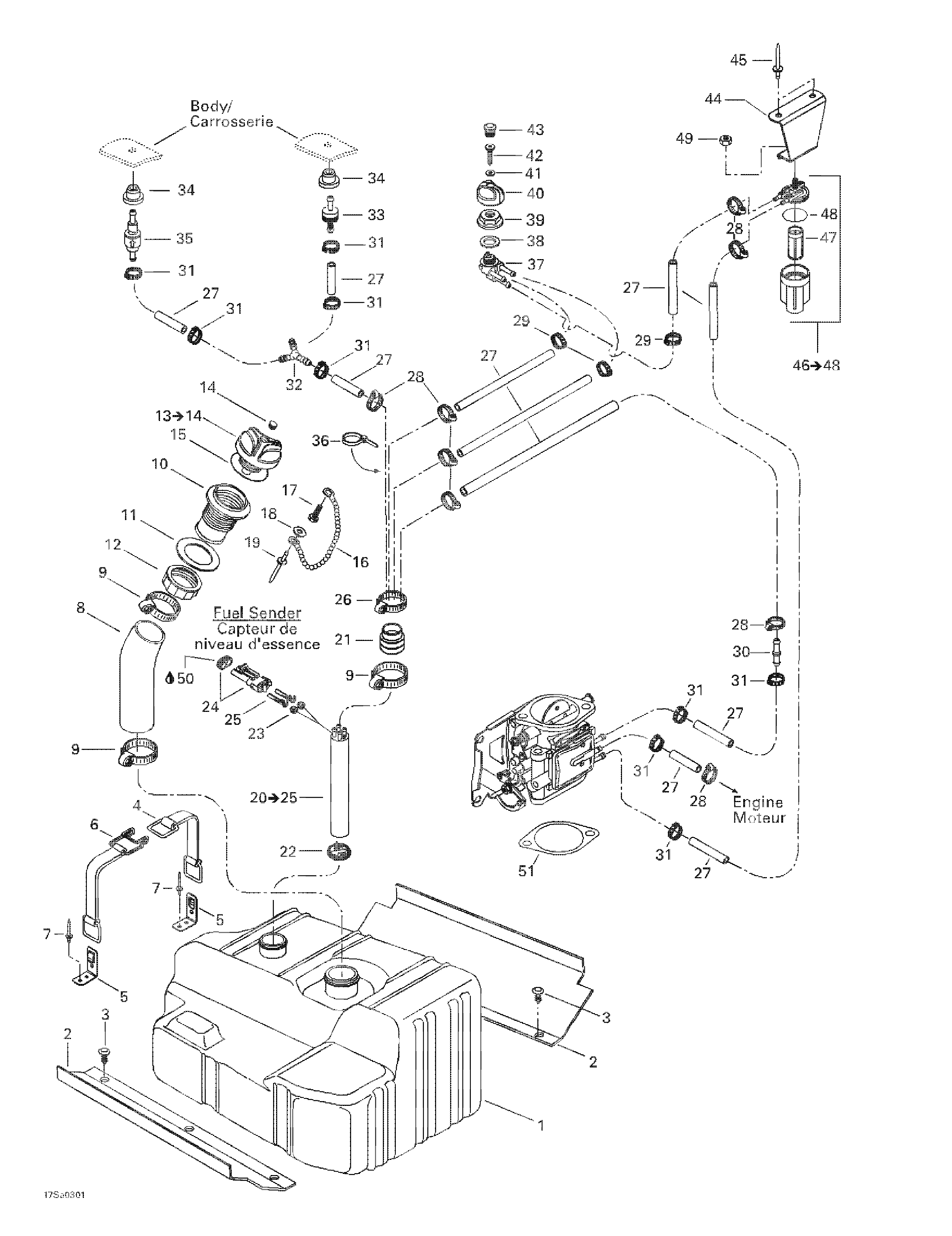

02- Fuel System для BRP GTI LE - 2003
-
№АртикулНазвание
-
1275500291 Fuel TankFuel Tank
-
2293830077 Rubber PadRubber Pad
-
3293730006 Dart (Black)Dart (Black)
-
4293850036 StrapStrap
-
5293850076 Strap ClipStrap Clip
-
6293850038 StrapStrap
-
7293150037 Rivet 3/16Rivet 3/16
-
8275500520 Filler Hose NeckFiller Hose Neck
-
9293650023 Tridon ClampTridon Clamp
-
10275500231 Filler NeckFiller Neck
-
11293250029 GasketGasket
-
12211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
13275500430 Fuel Tank Cap. Includes 13 - 14.Fuel Tank Cap. Includes 13 - 14.
-
14293000034 Snap Cap BlackSnap Cap Black
-
15293250075 GasketGasket
-
16275500518 Fuel Cap ChainFuel Cap Chain
-
17241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
18234032600 Flat Washer 3 mmFlat Washer 3 mm
-
19390407900 Rivet 1/8''Rivet 1/8''
-
20275500470 Baffle. Includes 20 - 25.Baffle. Includes 20 - 25.
-
21275500111 Tube AdapterTube Adapter
-
22275500397 Fuel FilterFuel Filter
-
23278000218 Wire SealWire Seal
-
24278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
25278000223 Female TerminalFemale Terminal
-
26293650035 Tridon ClampTridon Clamp
-
27275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
28293650128 Tridon ClampTridon Clamp
-
29293650042 Oetiker ClampOetiker Clamp
-
30293710039 Straight FittingStraight Fitting
-
31293650025 ClampClamp
-
32293710059 > Fitting> Fitting
-
33275500398 Check ValveCheck Valve
-
34293720029 GrommetGrommet
-
35275500479 Check ValveCheck Valve
-
36414115200 Tie RapTie Rap
-
37275500098 Fuel ValveFuel Valve
-
38293250004 GasketGasket
-
39212100009 Hex. Plastic NutHex. Plastic Nut
-
40275500263 Fuel Valve Knob. GTI.Fuel Valve Knob. GTI.
-
275500493 Fuel Valve Knob. GTI LE.Fuel Valve Knob. GTI LE.
-
41234040600 Washer 4 mmWasher 4 mm
-
42208640860 Countersunk Phillips Screw M4 x 8Countersunk Phillips Screw M4 x 8
-
43291001566 Plug. GTI LE.Plug. GTI LE.
-
275500241 Plug. GTI.Plug. GTI.
-
44275500287 Fuel Filter SupportFuel Filter Support
-
45293150043 Pop Rivet (3/16)Pop Rivet (3/16)
-
46275500088 Fuel Filter Ass'y. Includes 46 - 48.Fuel Filter Ass'y. Includes 46 - 48.
-
47275500089 Fuel FilterFuel Filter
-
48275500090 O-RingO-Ring
-
49232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
50293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
51204250035 GasketGasket
