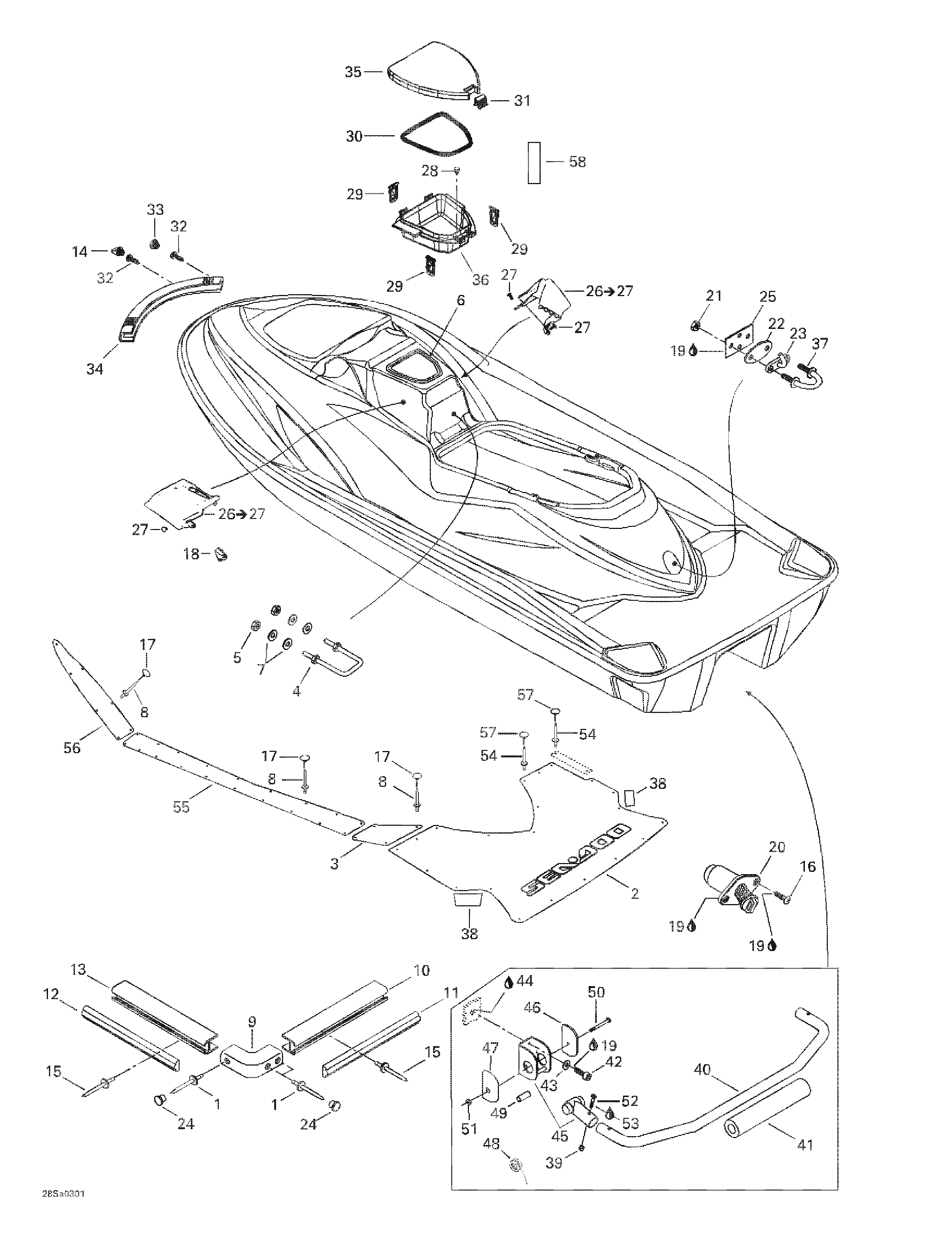

09- Body, Rear View для BRP GTI LE - 2003
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
2291001584 Rear Carpet (Black). GTI.Rear Carpet (Black). GTI.
-
291001801 Rear Carpet (Violet). GTI LE.Rear Carpet (Violet). GTI LE.
-
3291001803 R.H. Rear Carpet (Violet). GTI LE.R.H. Rear Carpet (Violet). GTI LE.
-
291001804 LH Rear Carpet (Violet). GTI LE.LH Rear Carpet (Violet). GTI LE.
-
4291001527 Seat Bow-EyeSeat Bow-Eye
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6293250099 GasketGasket
-
7234062600 Flat Washer 6 mmFlat Washer 6 mm
-
8293150036 Pop Rivet 1/8''Pop Rivet 1/8''
-
9291001505 Bumper Corner (Black). GTI.Bumper Corner (Black). GTI.
-
291001571 Bumper Corner. GTI LE.Bumper Corner. GTI LE.
-
10291001483 Rear Bumper (Black). GTI.Rear Bumper (Black). GTI.
-
291001799 Rear Bumper (Violet). GTI LE.Rear Bumper (Violet). GTI LE.
-
11291001521 Rear Bumper Trim (Black). GTI.Rear Bumper Trim (Black). GTI.
-
291001800 Rear Bumper Trim (Violet). GTI LE.Rear Bumper Trim (Violet). GTI LE.
-
12291001520 Side Bumper Trim (Black). GTI.Side Bumper Trim (Black). GTI.
-
291001798 Side Bumper Trim (Violet). GTI LE.Side Bumper Trim (Violet). GTI LE.
-
13291001606 Side Bumper (Black). GTI.Side Bumper (Black). GTI.
-
291001797 Side Bumper (Violet). GTI LE.Side Bumper (Violet). GTI LE.
-
14291001040 Bumper Plug (Black). GTI.Bumper Plug (Black). GTI.
-
291001793 Bumper Plug (Violet). GTI LE.Bumper Plug (Violet). GTI LE.
-
15293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
16211000021 Phillips ScrewPhillips Screw
-
17293000014 Snap Cap (Black). GTI.Snap Cap (Black). GTI.
-
291001802 Snap Cap (Violet). GTI LE.Snap Cap (Violet). GTI LE.
-
18291001730 Spacer. GTI.Spacer. GTI.
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000685 Drain PlugDrain Plug
-
21232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
22291001386 Finition Plate (Black). GTI.Finition Plate (Black). GTI.
-
291001809 Finition Plate (Violet). GTI LE.Finition Plate (Violet). GTI LE.
-
23291001232 HookHook
-
24291000339 Bumper Plugs (Black). GTI.Bumper Plugs (Black). GTI.
-
291001566 Bumper Plugs (Violet). GTI LE.Bumper Plugs (Violet). GTI LE.
-
25291001387 Retainer PlateRetainer Plate
-
26291001649 R.H. Grill Ass'y. Includes 26 - 27. GTI.R.H. Grill Ass'y. Includes 26 - 27. GTI.
-
291001650 LH Grill Ass'y. GTI.LH Grill Ass'y. GTI.
-
291001388 R.H. Grill Ass'yR.H. Grill Ass'y
-
291001389 LH Grill Ass'yLH Grill Ass'y
-
291001810 R.H. Grill Ass'y. GTI LE.R.H. Grill Ass'y. GTI LE.
-
291001812 LH Grill Ass'y. GTI LE.LH Grill Ass'y. GTI LE.
-
27293730010 Dart (Black)Dart (Black)
-
28293830005 Rubber PlugRubber Plug
-
29269500820 Retainer LatchRetainer Latch
-
30293250100 GasketGasket
-
31269500719 LatchLatch
-
32211000037 Phillips Screw 10-14 x 7/8''Phillips Screw 10-14 x 7/8''
-
33291001519 Bumper Plug (Black). GTI.Bumper Plug (Black). GTI.
-
291001794 Bumper Plug (Violet). GTI LE.Bumper Plug (Violet). GTI LE.
-
34291001035 Nose Bumper (Black). GTI.Nose Bumper (Black). GTI.
-
291001795 Nose Bumper (Violet). GTI LE.Nose Bumper (Violet). GTI LE.
-
35269500928 Glove Box Door. GTI.Glove Box Door. GTI.
-
269501179 Glove Box Door. GTI LE.Glove Box Door. GTI LE.
-
36269500717 Glove BoxGlove Box
-
37292000011 U-ClampU-Clamp
-
38291001919 Anti-Skid (Black)Anti-Skid (Black)
-
291001665 R.H. Anti-Skid. GTI.R.H. Anti-Skid. GTI.
-
291001666 LH Anti-Skid. GTI.LH Anti-Skid. GTI.
-
39232361600 Nut M6. GTI LE.Nut M6. GTI LE.
-
40291001691 Stair Tube. GTI LE.Stair Tube. GTI LE.
-
41292000593 Protector Tube. GTI LE.Protector Tube. GTI LE.
-
42250000076 Socket Head Screw M6 x 25 (Scotch Grip). GTI LE.Socket Head Screw M6 x 25 (Scotch Grip). GTI LE.
-
43234061600 Flat Washer 6 mm. GTI LE.Flat Washer 6 mm. GTI LE.
-
44293800066 Sealant, Loctite 5900, 300 ml. GTI LE.Sealant, Loctite 5900, 300 ml. GTI LE.
-
45292000539 Support Ass'y. GTI LE.Support Ass'y. GTI LE.
-
46292000540 R.H. Support Cap. GTI LE.R.H. Support Cap. GTI LE.
-
47292000548 LH Support Cap. GTI LE.LH Support Cap. GTI LE.
-
48292000541 Recall Spring. GTI LE.Recall Spring. GTI LE.
-
50211000186 Phillips Screw. GTI LE.Phillips Screw. GTI LE.
-
51212000005 Nut 1/4 - 20. GTI LE.Nut 1/4 - 20. GTI LE.
-
52205063560 Socket Head Screw M6 x 35. GTI LE.Socket Head Screw M6 x 35. GTI LE.
-
53293800060 Loctite 243, 10 ml. GTI LE.Loctite 243, 10 ml. GTI LE.
-
54293150016 Pop Rivet 3/16''Pop Rivet 3/16''
-
55291001805 R.H. Center Carpet (Violet). GTI LE.R.H. Center Carpet (Violet). GTI LE.
-
291001806 LH Center Carpet (Violet). GTI LE.LH Center Carpet (Violet). GTI LE.
-
56291001807 R.H. Front Carpet (Violet). GTI LE.R.H. Front Carpet (Violet). GTI LE.
-
291001808 LH Front Carpet (Violet). GTI LE.LH Front Carpet (Violet). GTI LE.
-
57293000014 Snap Cap (Black)Snap Cap (Black)
-
291001802 Snap Cap (Violet)Snap Cap (Violet)
-
58293250099 GasketGasket
