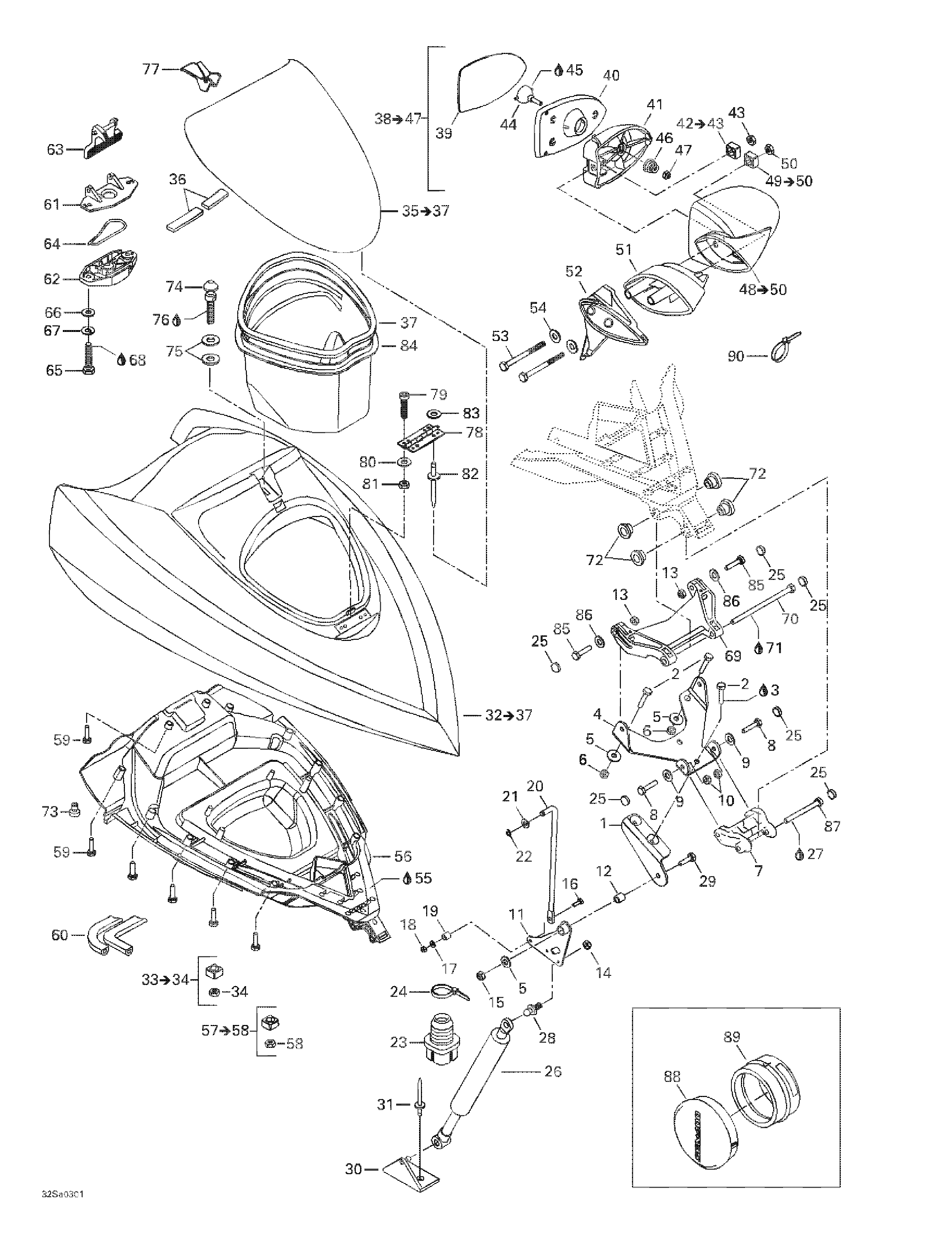

09- Front Storage Compartment для BRP GTI LE - 2003
-
№АртикулНазвание
-
1269500846 Support LeverSupport Lever
-
2207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4269500703 Pivot SupportPivot Support
-
5234062600 Flat Washer 6 mmFlat Washer 6 mm
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7269500704 Front ArmFront Arm
-
8211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
9234061600 Flat Washer 6 mmFlat Washer 6 mm
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11269501020 LeverLever
-
12269501022 SpacerSpacer
-
13232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
15232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
16207141660 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
17234041600 Flat Washer 4 mmFlat Washer 4 mm
-
18232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
19269500841 SpacerSpacer
-
20269500842 RodRod
-
21234061600 Flat Washer 6 mmFlat Washer 6 mm
-
22293370005 Circlip 6 mmCirclip 6 mm
-
23293720070 Cable Grommet. GTI LE.Cable Grommet. GTI LE.
-
24414115200 Tie RapTie Rap
-
25414436900 Snap Cap (Black)Snap Cap (Black)
-
26269500988 Gaz ShockGaz Shock
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28250300016 Ball StudBall Stud
-
29207163060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
30291001618 Shock SupportShock Support
-
31293150037 Advel RivetAdvel Rivet
-
32269501056 Cover (Earthen Clay). Includes 32 - 37. GTI LE.Cover (Earthen Clay). Includes 32 - 37. GTI LE.
-
269501100 Cover (Violet). GTI.Cover (Violet). GTI.
-
269501246 Cover (Atlantic Blue). GTI.Cover (Atlantic Blue). GTI.
-
33269500252 Nut Housing Ass'y. Includes 33 - 34.Nut Housing Ass'y. Includes 33 - 34.
-
34232061600 Nut M6Nut M6
-
35269501063 Access Cover (Earthen Clay). Includes 35 - 37. GTI LE.Access Cover (Earthen Clay). Includes 35 - 37. GTI LE.
-
269501102 Access Cover (Violet). GTI.Access Cover (Violet). GTI.
-
269501248 Access Cover (Atlantic Blue). GTI.Access Cover (Atlantic Blue). GTI.
-
36293200003 Tray Seal (Meter)Tray Seal (Meter)
-
37293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
38269500685 R.H. Mirror Ass'y. Includes 38 - 47. GTI LE.R.H. Mirror Ass'y. Includes 38 - 47. GTI LE.
-
269500788 LH Mirror Ass'y. GTI LE.LH Mirror Ass'y. GTI LE.
-
39269500687 R.H. Mirror. GTI LE.R.H. Mirror. GTI LE.
-
269500688 LH Mirror. GTI LE.LH Mirror. GTI LE.
-
40269500697 Frame Mirror. GTI LE.Frame Mirror. GTI LE.
-
41269500807 Housing Support. GTI LE.Housing Support. GTI LE.
-
42269500813 Nut Housing Ass'y. Includes 42 - 43. GTI LE.Nut Housing Ass'y. Includes 42 - 43. GTI LE.
-
43232581600 Elastic Stop Nut M8. GTI LE.Elastic Stop Nut M8. GTI LE.
-
44269500079 Mirror Ball Joint. GTI LE.Mirror Ball Joint. GTI LE.
-
45293550010 Synthetic Grease, 400 g. GTI LE.Synthetic Grease, 400 g. GTI LE.
-
46269500453 Mirror Spring. GTI LE.Mirror Spring. GTI LE.
-
47232561600 Elastic Stop Nut M6. GTI LE.Elastic Stop Nut M6. GTI LE.
-
48269501071 Mirror Shell (Earthen Clay). Includes 48 - 50. GTI LE.Mirror Shell (Earthen Clay). Includes 48 - 50. GTI LE.
-
49269500813 Nut Housing Ass'y. Includes 49 - 50. GTI LE.Nut Housing Ass'y. Includes 49 - 50. GTI LE.
-
50232581600 Elastic Stop Nut M8. GTI LE.Elastic Stop Nut M8. GTI LE.
-
51269501075 R.H. Mirror Support (Earthen Clay). GTI LE.R.H. Mirror Support (Earthen Clay). GTI LE.
-
269501077 LH Mirror Support (Earthen Clay). GTI LE.LH Mirror Support (Earthen Clay). GTI LE.
-
52269500792 R.H. Spacer (Black). GTI LE.R.H. Spacer (Black). GTI LE.
-
269500793 LH Spacer (Black). GTI LE.LH Spacer (Black). GTI LE.
-
53230082060 Hex. Screw M8 x 120. GTI LE.Hex. Screw M8 x 120. GTI LE.
-
54234082600 Flat Washer 8 mm. GTI LE.Flat Washer 8 mm. GTI LE.
-
55413708300 Glue Tube, Loctite 454, 20 g. GTI LE.Glue Tube, Loctite 454, 20 g. GTI LE.
-
56269500000 Lower Storage CoverLower Storage Cover
-
57269500252 Nut Housing Ass'y. Includes 57 - 58.Nut Housing Ass'y. Includes 57 - 58.
-
58232061600 Hex. Nut M6Hex. Nut M6
-
59241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
60293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
61269700076 Latch CoverLatch Cover
-
62269000015 Latch BaseLatch Base
-
63269700077 Latch LeverLatch Lever
-
64269700017 Latch SpringLatch Spring
-
65207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
66234061600 Flat Washer 6 mmFlat Washer 6 mm
-
67234161601 Lock Washer 6 mmLock Washer 6 mm
-
68293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
69269500705 Rear ArmRear Arm
-
70230060060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
71293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
72269500706 SleeveSleeve
-
73293830005 Rubber PlugRubber Plug
-
74291001242 Latch StudLatch Stud
-
75234062600 Flat Washer 6 mmFlat Washer 6 mm
-
76293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
77269501125 LatchLatch
-
78269500338 HingeHinge
-
79205451660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
80234052600 Flat Washer 5 mmFlat Washer 5 mm
-
81232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
82204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
83234052600 Flat Washer 5 mmFlat Washer 5 mm
-
84269501121 Gloves BoxGloves Box
-
85211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
86234061600 Flat Washer 6 mmFlat Washer 6 mm
-
87207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
88293000068 Gauge Cap. GTI.Gauge Cap. GTI.
-
89293720047 Gauge Support. GTI.Gauge Support. GTI.
-
90293750008 Tie Rap 350 mm. GTI LE.Tie Rap 350 mm. GTI LE.
