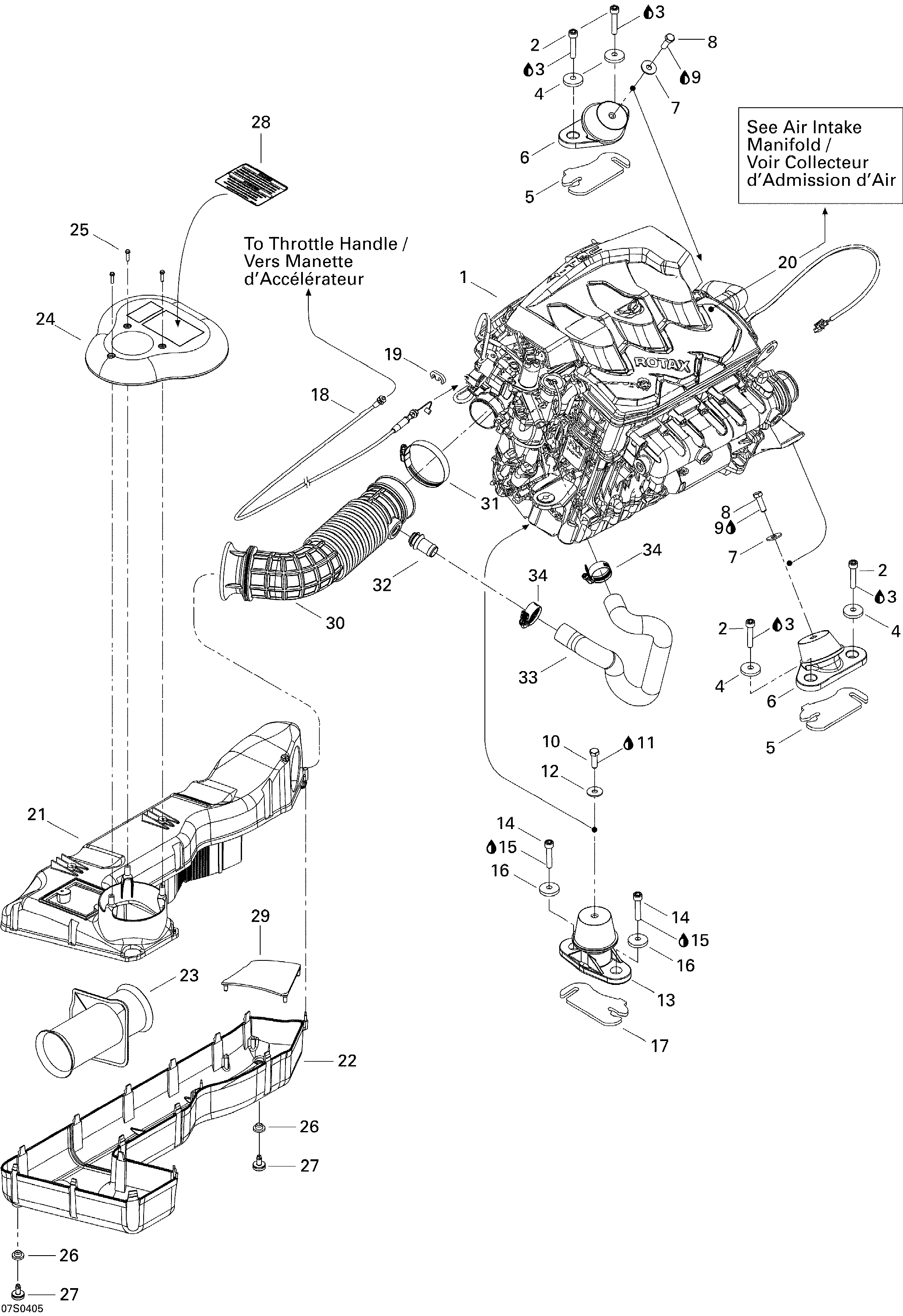

01- Engine Support для BRP GTX 4-TEC, WAKE - 2004
-
№АртикулНазвание
-
1270000567 Rotax Engine 4 Strokes 1503Rotax Engine 4 Strokes 1503
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3293800060 Loctite 243Loctite 243
-
4250200018 Conical WasherConical Washer
-
5270000445 Shim 0.3 mmShim 0.3 mm
-
270000446 Shim 1.3 mmShim 1.3 mm
-
6270000612 Rubber Mount (Black)Rubber Mount (Black)
-
7234082600 Flat Washer M8Flat Washer M8
-
8207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
9293800060 Loctite 243Loctite 243
-
10207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
11293800060 Loctite 243Loctite 243
-
12234082600 Flat Washer M8Flat Washer M8
-
13270000489 Rubber MountRubber Mount
-
14205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
15293800060 Loctite 243Loctite 243
-
16250200018 Conical WasherConical Washer
-
17270000445 Shim 0.3 mmShim 0.3 mm
-
270000446 Shim 1.3 mmShim 1.3 mm
-
18277001170 Throttle CableThrottle Cable
-
19277000279 Lock TabLock Tab
-
20420660172 Stick Coil CoverStick Coil Cover
-
21273000224 Upper Air SilencerUpper Air Silencer
-
22273000190 Air Silencer LowerAir Silencer Lower
-
23273000191 Connector TubeConnector Tube
-
24273000192 Air Silencer CoverAir Silencer Cover
-
25241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
26293720064 GrommetGrommet
-
27275500454 Check ValveCheck Valve
-
28516001191 Air Silencer Instruction LabelAir Silencer Instruction Label
-
29273000206 DeflectorDeflector
-
30273000187 Intake HoseIntake Hose
-
31293650064 Tridon ClampTridon Clamp
-
32273000195 BreatherBreather
-
33275500497 HoseHose
-
34293650051 Tridon Gear ClampTridon Gear Clamp
