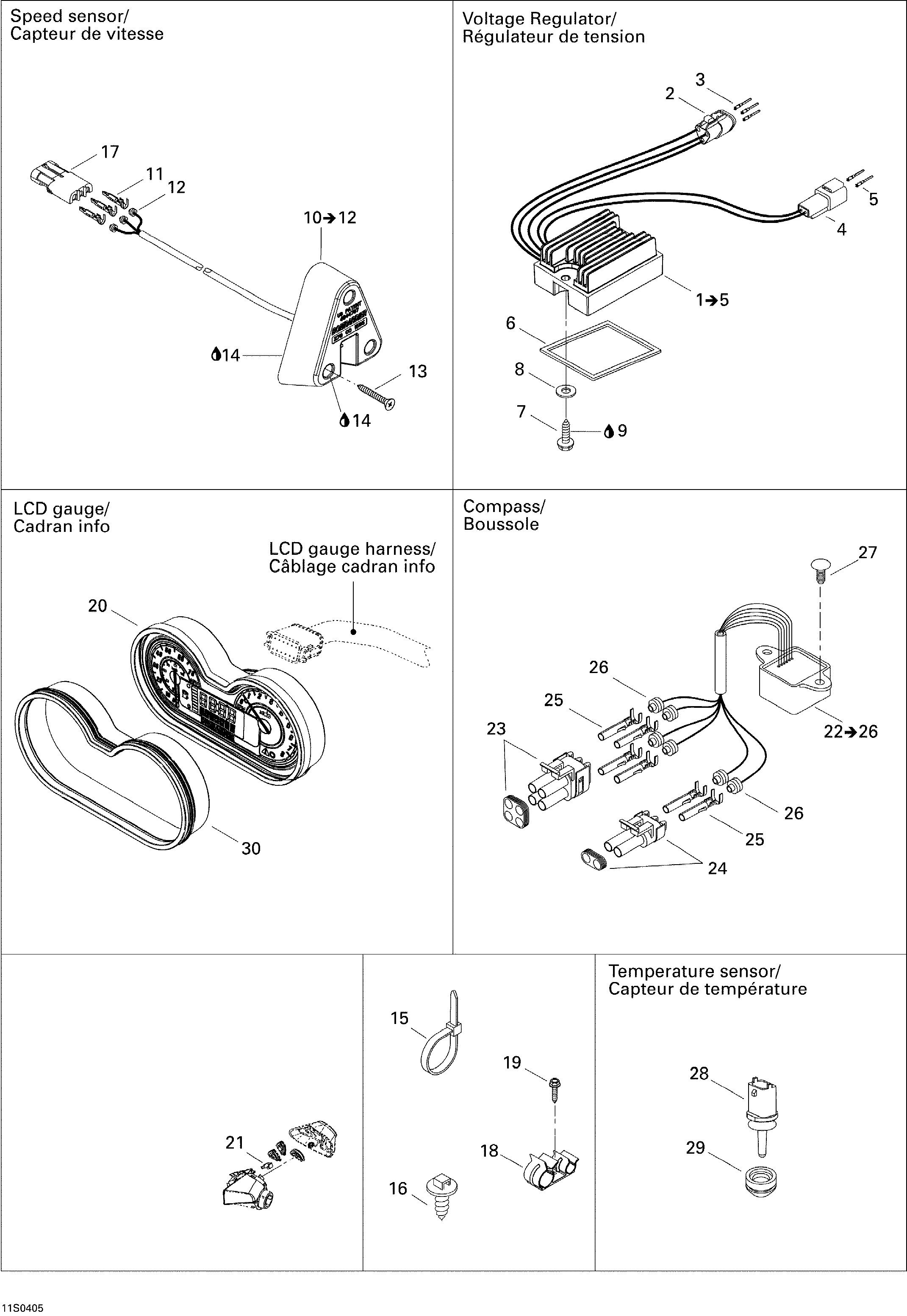

10- Electrical Accessories для BRP GTX 4-TEC, WAKE - 2004
-
№АртикулНазвание
-
1278001969 Regulator. Includes 1 to 5Regulator. Includes 1 to 5
-
2409207400 Female Connector (3 Circuits)Female Connector (3 Circuits)
-
3278000631 Male TerminalMale Terminal
-
4409206900 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
5515175568 Male TerminalMale Terminal
-
6293250123 RH SealRH Seal
-
7211000023 Hex Screw (Plastite)Hex Screw (Plastite)
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10278001585 Speed Sensor. Includes 10 to 12Speed Sensor. Includes 10 to 12
-
13211000021 Phillips ScrewPhillips Screw
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
15414115200 Tie RapTie Rap
-
15293750008 Tie Rap 350 mmTie Rap 350 mm
-
15293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
16293730018 Mount DartMount Dart
-
17278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
18275500553 RetainerRetainer
-
19241141660 Screw K40 X 16Screw K40 X 16
-
20278001959 LCD GaugeLCD Gauge
-
21277001069 '' U'' Bracket'' U'' Bracket
-
22278001243 Compass. Includes 22 to 26Compass. Includes 22 to 26
-
23278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
24278000220 Male Connector (2 Circuits)Male Connector (2 Circuits)
-
25278000223 Female TerminalFemale Terminal
-
26278000218 SealSeal
-
27293730010 Dart (Black)Dart (Black)
-
28270600000 Air SensorAir Sensor
-
29278001054 InsulatorInsulator
-
30278001603 Gauge SupportGauge Support
