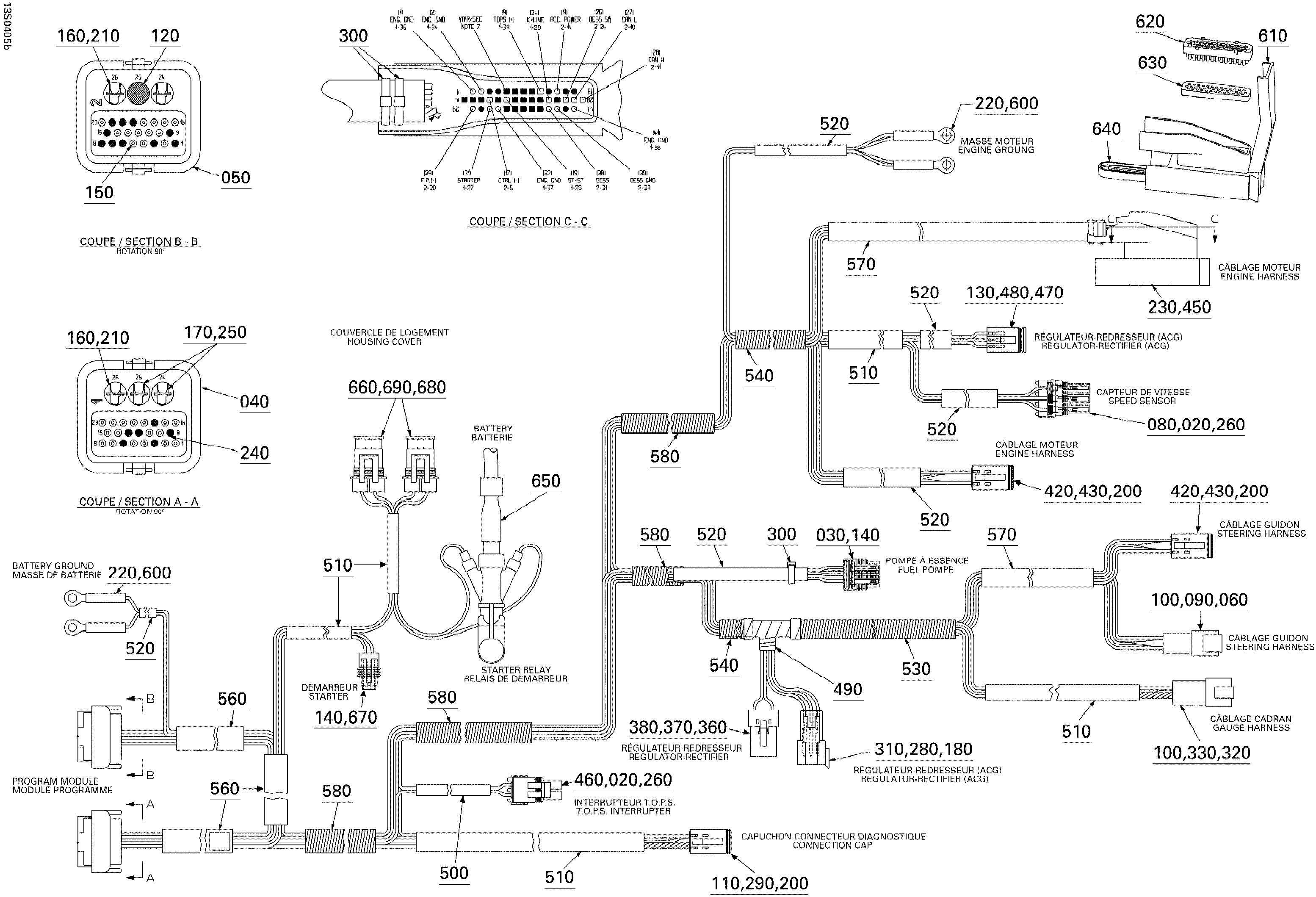

10- Electrical Harness для BRP GTX 4-TEC, WAKE - 2004
-
№АртикулНазвание
-
1278001788 Yellow Wiring Harness. Includes 1 to 690Yellow Wiring Harness. Includes 1 to 690
-
20278000223 Female TerminalFemale Terminal
-
30278001308 Male Connector (4 Circuits)Male Connector (4 Circuits)
-
40278000993 Male Connector (26 Circuits)Male Connector (26 Circuits)
-
50278001062 Male Connector (26 Circuits)Male Connector (26 Circuits)
-
60270000137 Female Connector (6 Circuits)Female Connector (6 Circuits)
-
80278000273 Male Connector (3 Circuits)Male Connector (3 Circuits)
-
90278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
100278000631 Male TerminalMale Terminal
-
110278000736 Male Connector (6 Circuits)Male Connector (6 Circuits)
-
120409013900 Seal PlugSeal Plug
-
130278001661 Female TerminalFemale Terminal
-
140278001114 Female TerminalFemale Terminal
-
150278000995 Female TerminalFemale Terminal
-
160278000994 Female TerminalFemale Terminal
-
170409011700 Female TerminalFemale Terminal
-
180515175823 Male TerminalMale Terminal
-
200278000632 Female TerminalFemale Terminal
-
210278000996 SealSeal
-
220278001392 Ring TerminalRing Terminal
-
230278001751 Male Connector (41 Circuits)Male Connector (41 Circuits)
-
240293000070 Sealing PlugSealing Plug
-
250278001223 SealSeal
-
260278000218 SealSeal
-
280409207600 Secondary Lock (3 Circuits)Secondary Lock (3 Circuits)
-
290278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
300293750002 Tie Rap 130 mmTie Rap 130 mm
-
310409207000 Female Connector (3 Circuits)Female Connector (3 Circuits)
-
320278000635 Female Connector (4 Circuits)Female Connector (4 Circuits)
-
330278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
360278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
370278001671 Secondary Lock (2 Circuits)Secondary Lock (2 Circuits)
-
380515175260 Female TerminalFemale Terminal
-
420278000739 Male Connector (4 Circuits)Male Connector (4 Circuits)
-
430278000738 Secondary Lock (4 Circuits)Secondary Lock (4 Circuits)
-
450278001750 Female TerminalFemale Terminal
-
460278000220 Male Connector (2 Circuits)Male Connector (2 Circuits)
-
470409207400 Female Connector (3 Circuits)Female Connector (3 Circuits)
-
480409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
650278001861 Battery CableBattery Cable
-
660410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
670278001113 Male Connector (2 Circuits)Male Connector (2 Circuits)
-
680278001325 Fuse HolderFuse Holder
-
690710000357 Female TerminalFemale Terminal
