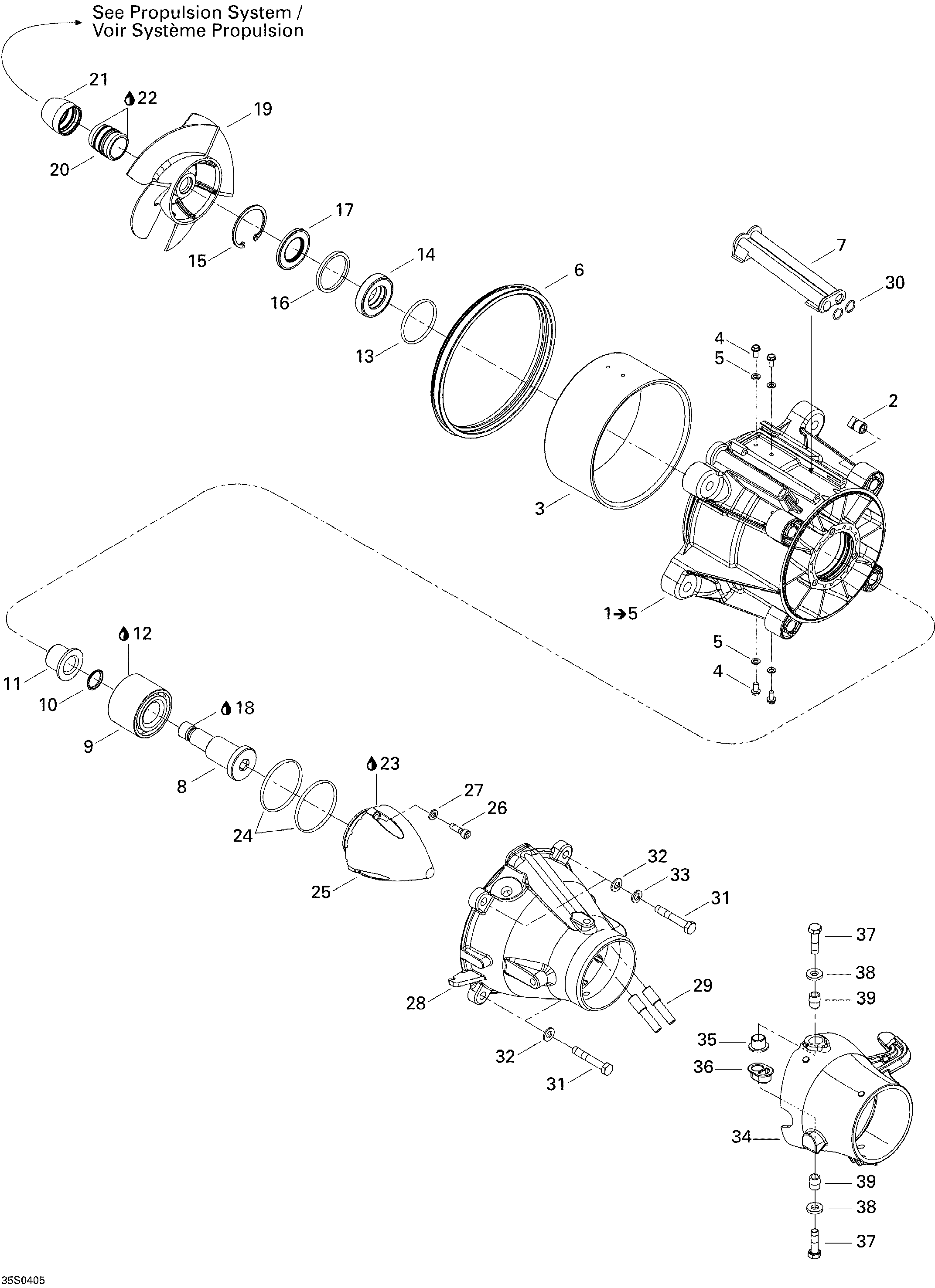

05- Pump для BRP GTX 4-TEC, WAKE - 2004
-
№АртикулНазвание
-
1267000056 Impeler Housing Ass'Y. Includes items 1 to 5Impeler Housing Ass'Y. Includes items 1 to 5
-
2211100033 Square Nut M8Square Nut M8
-
3267000021 Wear RingWear Ring
-
4250000040 Hex Plastite Screw #10 X 3/8''Hex Plastite Screw #10 X 3/8''
-
5234051600 Flat Washer M5Flat Washer M5
-
6293200087 SealSeal
-
7271000785 Water OutletWater Outlet
-
8267000054 Impellerer ShaftImpellerer Shaft
-
9267000030 Angled BearingAngled Bearing
-
10505070315 O-RingO-Ring
-
11267000048 Shaft SleeveShaft Sleeve
-
12293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
13293300090 O-RingO-Ring
-
14293200086 Oil SealOil Seal
-
15293370038 CirclipCirclip
-
16271001393 SpacerSpacer
-
17293200089 Oil SealOil Seal
-
18293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
19271001386 ImpellerImpeller
-
20271001152 Impeller BootImpeller Boot
-
21271001153 Impeller RingImpeller Ring
-
22293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
23293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
24293300086 O-RingO-Ring
-
25267000055 Impeller CoverImpeller Cover
-
26205562060 Socket Head Screw M6 X 20 (Scotch Grip)Socket Head Screw M6 X 20 (Scotch Grip)
-
27234061600 Flat Washer M6Flat Washer M6
-
28267000068 Venturi (Black)Venturi (Black)
-
29271001133 Siphon TubeSiphon Tube
-
30293300013 O-RingO-Ring
-
31207285060 Hex Screw M8 X 50 (Scotch Grip)Hex Screw M8 X 50 (Scotch Grip)
-
32234081600 Flat Washer M8Flat Washer M8
-
33234181601 Helical Lock Washer M8Helical Lock Washer M8
-
34271001469 Steering Nozzle (Black)Steering Nozzle (Black)
-
35293900001 Venturi BushingVenturi Bushing
-
36293900010 Plastic BushingPlastic Bushing
-
37207383060 Hex Screw M8 X 30 (Scotch Grip)Hex Screw M8 X 30 (Scotch Grip)
-
38293050001 Flat WasherFlat Washer
-
39271000122 Steering Nozzle SleeveSteering Nozzle Sleeve
