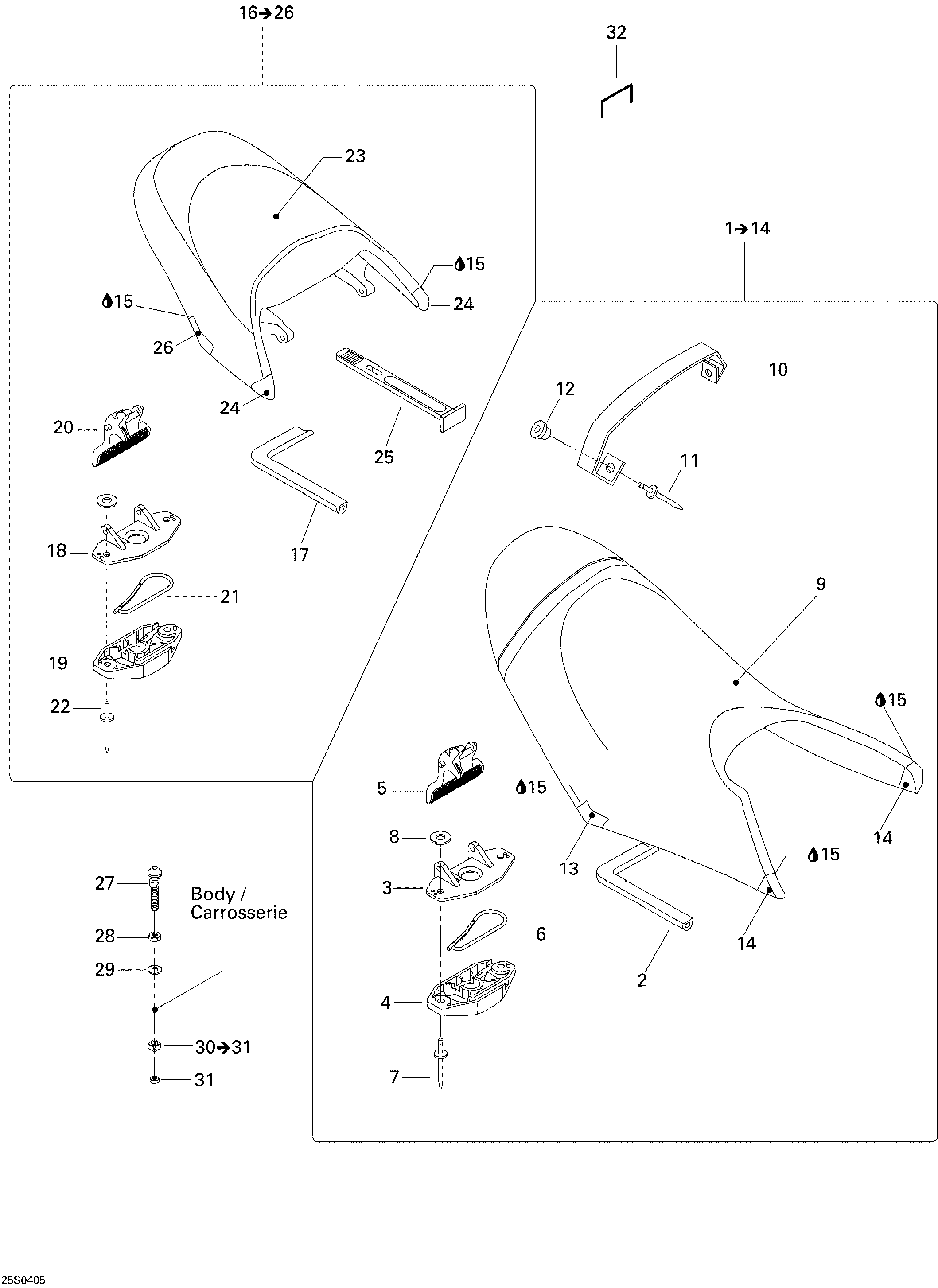

09- Seat для BRP GTX 4-TEC, WAKE - 2004
-
№АртикулНазвание
-
1269001050 Front Seat Ass'Y (Silver). WAKE / Includes 1 to 15Front Seat Ass'Y (Silver). WAKE / Includes 1 to 15
-
1269001066 Front Seat Ass'Y (Earthern Clay). STD / Includes 1 to 15Front Seat Ass'Y (Earthern Clay). STD / Includes 1 to 15
-
2293200062 Seal (Meter)Seal (Meter)
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9269001051 Front Seat Cover & Foam (Silver)Front Seat Cover & Foam (Silver)
-
9269001068 Front Seat Cover & Foam (Earthern Clay)Front Seat Cover & Foam (Earthern Clay)
-
10269001081 Seat Strap (Silver)Seat Strap (Silver)
-
10269001089 Seat Strap (Earthern Clay)Seat Strap (Earthern Clay)
-
11293150078 Pop RivetPop Rivet
-
12293720067 GrommetGrommet
-
13269001082 RH Seat Corner (Silver)RH Seat Corner (Silver)
-
13269001090 RH Seat Corner (Earthern Clay)RH Seat Corner (Earthern Clay)
-
13269001083 LH Seat Corner (Silver)LH Seat Corner (Silver)
-
13269001091 LH Seat Corner (Earthern Clay)LH Seat Corner (Earthern Clay)
-
14269001084 RH Front Seat Corner (Silver)RH Front Seat Corner (Silver)
-
14269001092 RH Front Seat Corner (Earthern Clay)RH Front Seat Corner (Earthern Clay)
-
14269001085 LH Front Seat Corner (Silver)LH Front Seat Corner (Silver)
-
14269001093 LH Front Seat Corner (Earthern Clay)LH Front Seat Corner (Earthern Clay)
-
15413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
16269001059 Rear Seat Ass'Y (Silver). WAKE / Includes 16 to 26Rear Seat Ass'Y (Silver). WAKE / Includes 16 to 26
-
16269001069 Rear Seat Ass'Y (Earthern Clay). STD / Includes 16 to 26Rear Seat Ass'Y (Earthern Clay). STD / Includes 16 to 26
-
17293200062 Seal (Meter)Seal (Meter)
-
18269700076 Latch CoverLatch Cover
-
19269000015 Latch BaseLatch Base
-
20269700077 Latch LeverLatch Lever
-
21269700017 Latch SpringLatch Spring
-
22293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
23269001060 Rear Seat Cover & Foam (Silver)Rear Seat Cover & Foam (Silver)
-
23269001070 Rear Seat Cover & Foam (Earthern Clay)Rear Seat Cover & Foam (Earthern Clay)
-
24269001086 RH Seat Corner (Silver)RH Seat Corner (Silver)
-
24269001094 RH Seat Corner (Earthern Clay)RH Seat Corner (Earthern Clay)
-
24269001087 LH Seat Corner (Silver)LH Seat Corner (Silver)
-
24269001095 LH Seat Corner (Earthern Clay)LH Seat Corner (Earthern Clay)
-
25269500408 StrapStrap
-
26269001088 Seat Corner (Silver)Seat Corner (Silver)
-
26269001096 Seat Corner (Earthern Clay)Seat Corner (Earthern Clay)
-
27291000945 Seat StudSeat Stud
-
28232100600 Hex Nut M10Hex Nut M10
-
29234002600 Flat Washer 10 mmFlat Washer 10 mm
-
30271000598 Nut Housing. Includes 31 to 32Nut Housing. Includes 31 to 32
-
31232501600 Hex Nut M10Hex Nut M10
-
32293730005 StapleStaple
