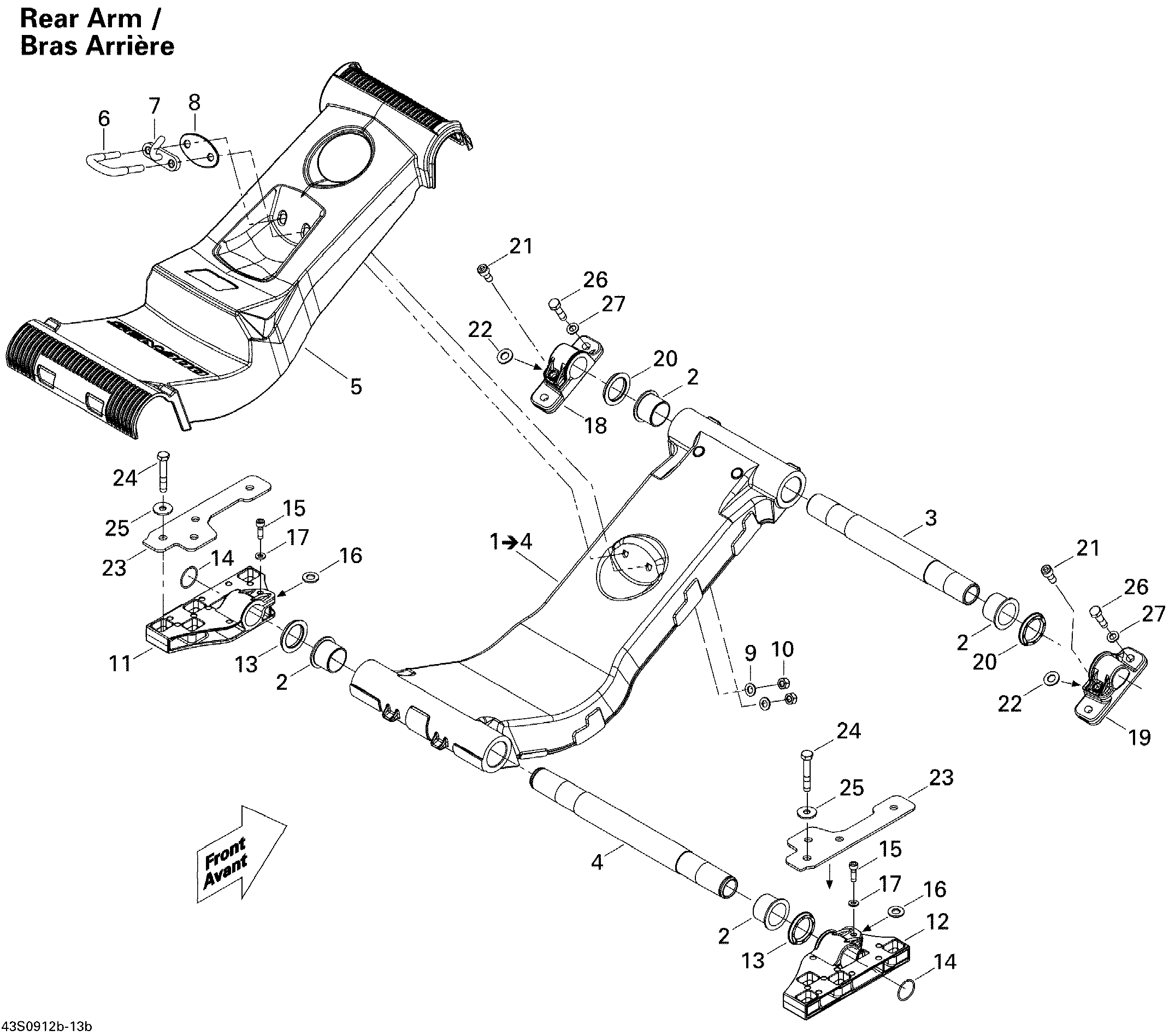

08- Suspension , Rear Arm для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1279000001 Rear Arm Ass'y. Includes 1 to 4Rear Arm Ass'y. Includes 1 to 4
-
2279000019 BushingBushing
-
3279000031 Pivot TubePivot Tube
-
4279000033 Pivot TubePivot Tube
-
5279000080 Rear Arm MouldingRear Arm Moulding
-
6292000011 U-ClampU-Clamp
-
7291002351 HookHook
-
8291001386 Finition Plate, BlackFinition Plate, Black
-
9234081600 Flat Washer 8 mmFlat Washer 8 mm
-
10232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
11279000083 LH Rear BaseLH Rear Base
-
12279000087 RH Rear BaseRH Rear Base
-
13279000047 Rubber BumperRubber Bumper
-
14279000100 Retaining RingRetaining Ring
-
15205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
16234001600 Flat Washer 10 mmFlat Washer 10 mm
-
17234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
18279000089 LH ClampLH Clamp
-
19279000092 RH ClampRH Clamp
-
20279000047 Rubber BumperRubber Bumper
-
21205582060 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
22234001600 Flat Washer 10 mmFlat Washer 10 mm
-
23279000114 Retaining PlateRetaining Plate
-
24207285060 Hex. Screw M8 X 50, Scotch GripHex. Screw M8 X 50, Scotch Grip
-
25234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
26207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
27234080600 Flat Washer 8 mmFlat Washer 8 mm
