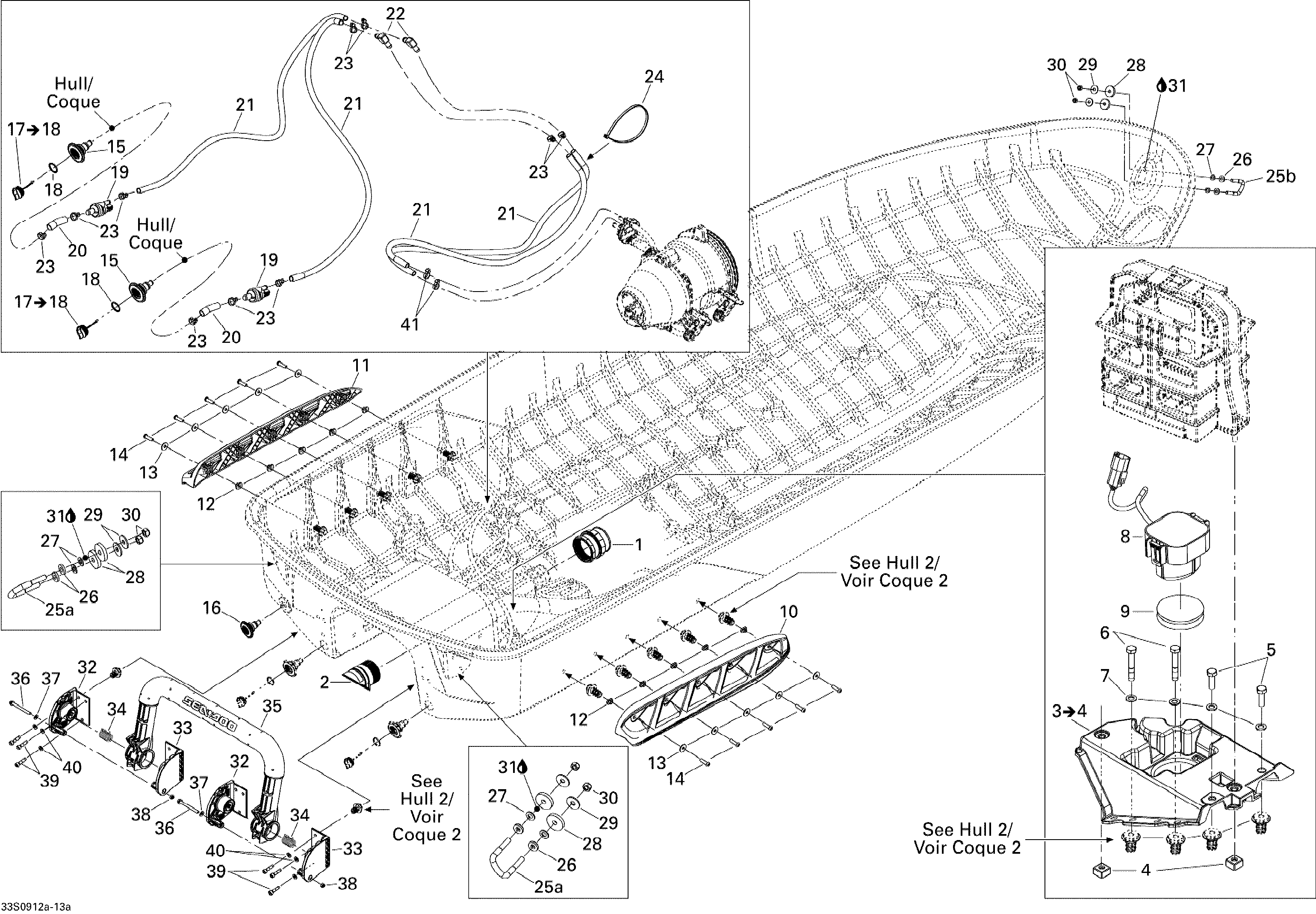

09- Hull 1 для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1293450283 Inner Hull InsertInner Hull Insert
-
2293450282 Outer Hull InsertOuter Hull Insert
-
3278002343 Battery Base Ass'y. Includes 3 to 4Battery Base Ass'y. Includes 3 to 4
-
4269501387 Square Nut M8Square Nut M8
-
5207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
6207285060 Hex. Screw M8 X 50, Scotch GripHex. Screw M8 X 50, Scotch Grip
-
7234080600 Flat Washer 8 mmFlat Washer 8 mm
-
8278002336 Depth SensorDepth Sensor
-
9293550042 Gel PadGel Pad
-
10292001174 RH SponsonRH Sponson
-
11292001175 LH SponsonLH Sponson
-
12292001326 Spacer SponsonSpacer Sponson
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14250000372 Torx Screw M8 X 30, StainlessTorx Screw M8 X 30, Stainless
-
15292001315 Drain Neck Ass'yDrain Neck Ass'y
-
16292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
17292001320 Plug Drain Ass'y. Includes 17 to 18Plug Drain Ass'y. Includes 17 to 18
-
18293300032 O-RingO-Ring
-
19292001310 Bailer Ass'yBailer Ass'y
-
20275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
21275000007 Hose 8 mmHose 8 mm
-
22293710117 Elbow Fitting 90°Elbow Fitting 90°
-
23293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25a292000011 U-ClampU-Clamp
-
25b292000011 U-ClampU-Clamp
-
26293050001 Flat WasherFlat Washer
-
27234081100 Flat Washer 8 mmFlat Washer 8 mm
-
28293830037 Rubber WasherRubber Washer
-
29250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
30232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
31296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
32292001201 Support ASupport A
-
33292001202 Support BSupport B
-
34292001259 SpringSpring
-
35292001204 Overmolded BarOvermolded Bar
-
36207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
37234061600 Flat Washer M6Flat Washer M6
-
38232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
39250000076 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
40234061600 Flat Washer M6Flat Washer M6
-
41293650184 Oetiker ClampOetiker Clamp
