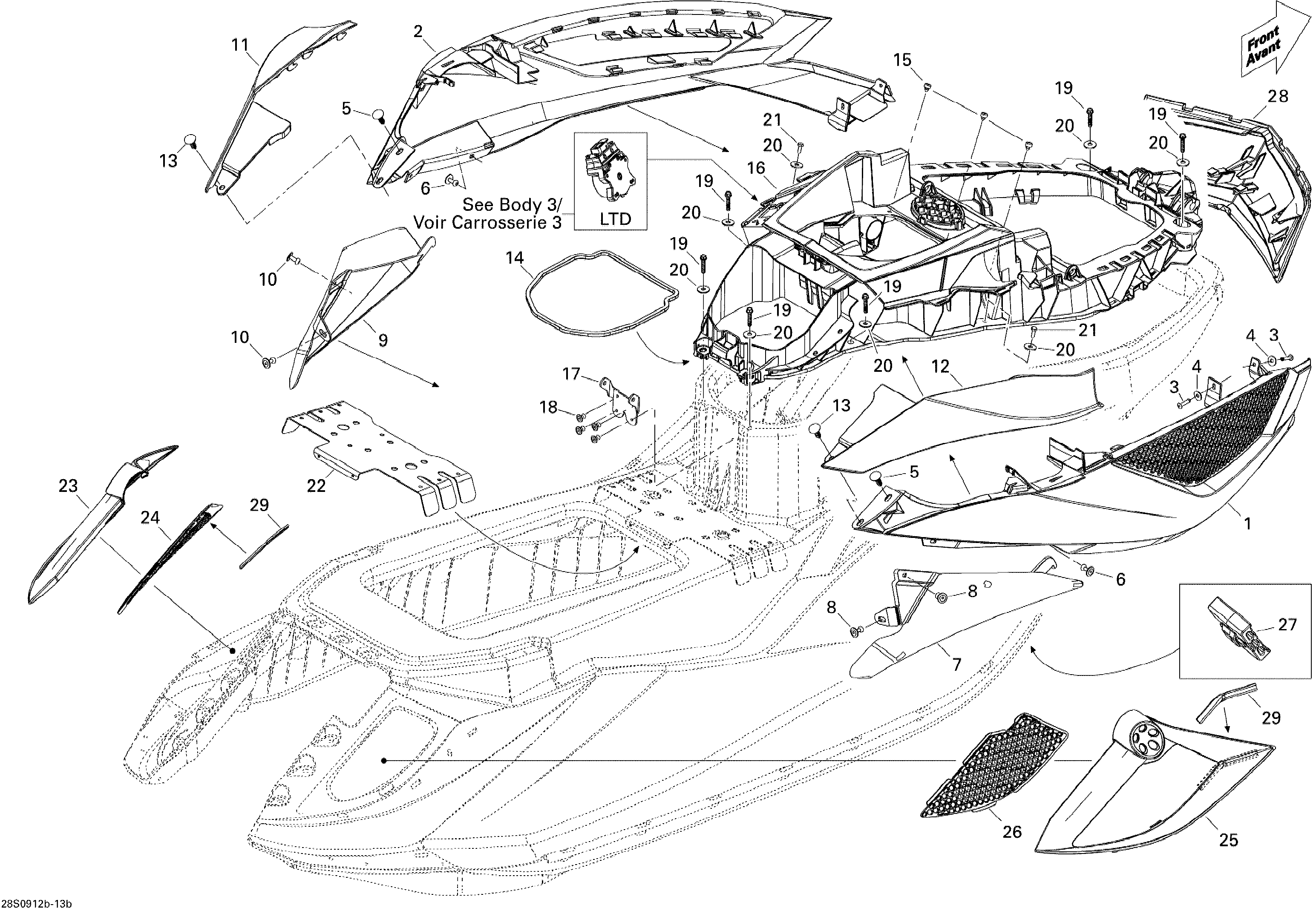

09- Body, Rear View 2 для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1291002822 RH Front Body CoverRH Front Body Cover
-
2291002825 LH Front Body CoverLH Front Body Cover
-
3293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
4234052600 Flat Washer 5 mmFlat Washer 5 mm
-
5293730006 Dart, BlackDart, Black
-
6293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
7291002816 RH Seat Pad, BronzeRH Seat Pad, Bronze
-
8293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
9291002769 LH Seat Pad, BronzeLH Seat Pad, Bronze
-
10293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
11291002622 LH Upper Body Cap Cover, TopazLH Upper Body Cap Cover, Topaz
-
12291002646 RH Upper Body Cap Cover, TopazRH Upper Body Cap Cover, Topaz
-
13293730006 Dart, BlackDart, Black
-
14293250200 Neoprene SealNeoprene Seal
-
15293830005 Rubber Plug, BlackRubber Plug, Black
-
16291002623 Front ModuleFront Module
-
17291002865 Seat PivotSeat Pivot
-
18293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
19243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
20234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
22291002757 Midle ReinforcementMidle Reinforcement
-
23291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
24291002740 LH Rear Side GrilleLH Rear Side Grille
-
25291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
26291002742 RH Rear Side GrilleRH Rear Side Grille
-
27293750025 Tie-Rap MountTie-Rap Mount
-
28269501726 Front GrilleFront Grille
-
29293250087 GasketGasket
