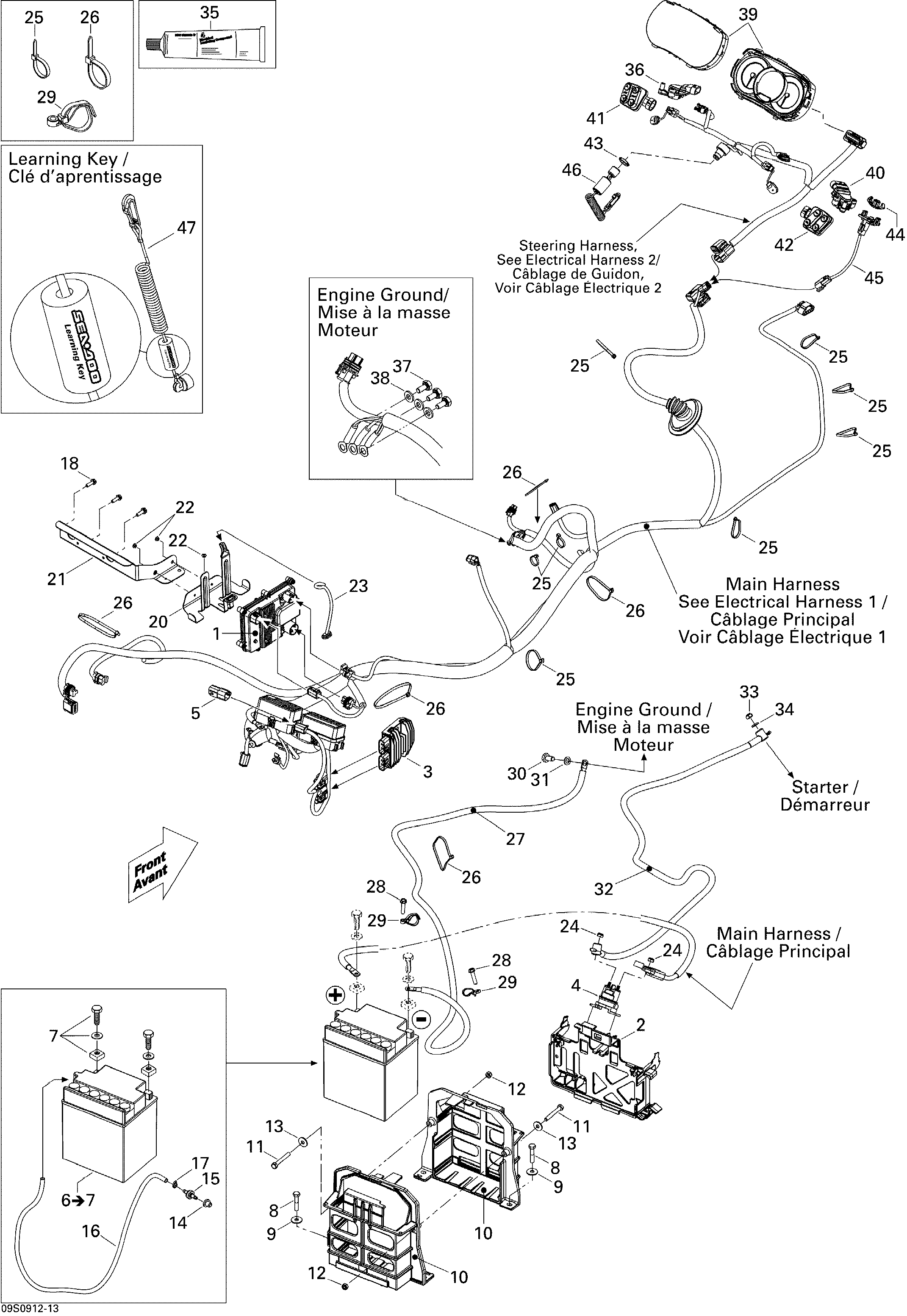

10- Electrical System для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1278002322 Electronic Suspension ModuleElectronic Suspension Module
-
2278002338 Electrical Component SupportElectrical Component Support
-
3710001103 Voltage RegulatorVoltage Regulator
-
4278002347 Starter RelayStarter Relay
-
5278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
6278001882 Battery, 30 Amperes. Includes 6 to 7Battery, 30 Amperes. Includes 6 to 7
-
7295500849 Battery Fastener KitBattery Fastener Kit
-
8207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10278002339 Battery SupportBattery Support
-
11207164560 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
12232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14293720029 GrommetGrommet
-
15275500499 Check ValveCheck Valve
-
16275500446 Hose 6 mmHose 6 mm
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18243162060 Hex. Flanged Screw M6.3 x 20Hex. Flanged Screw M6.3 x 20
-
20278002403 Suspension Module SupportSuspension Module Support
-
21278002402 SupportSupport
-
22204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
23269501299 Rubber LatchRubber Latch
-
24232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27278002278 Ground CableGround Cable
-
28211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
30207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
31234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
32278002279 Starter CableStarter Cable
-
33232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
34234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36278002284 LH Throttle SensorLH Throttle Sensor
-
37207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
38234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
39278002305 LCD Info GaugeLCD Info Gauge
-
40278002283 RH Throttle SensorRH Throttle Sensor
-
41278002316 LH Control SwitchLH Control Switch
-
42278002315 RH Control SwitchRH Control Switch
-
43278000508 Safety Switch NutSafety Switch Nut
-
44278002323 O.T.A.S. ActuatorO.T.A.S. Actuator
-
45278002324 O.T.A.S. SensorO.T.A.S. Sensor
-
46278002371 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
47278002392 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
