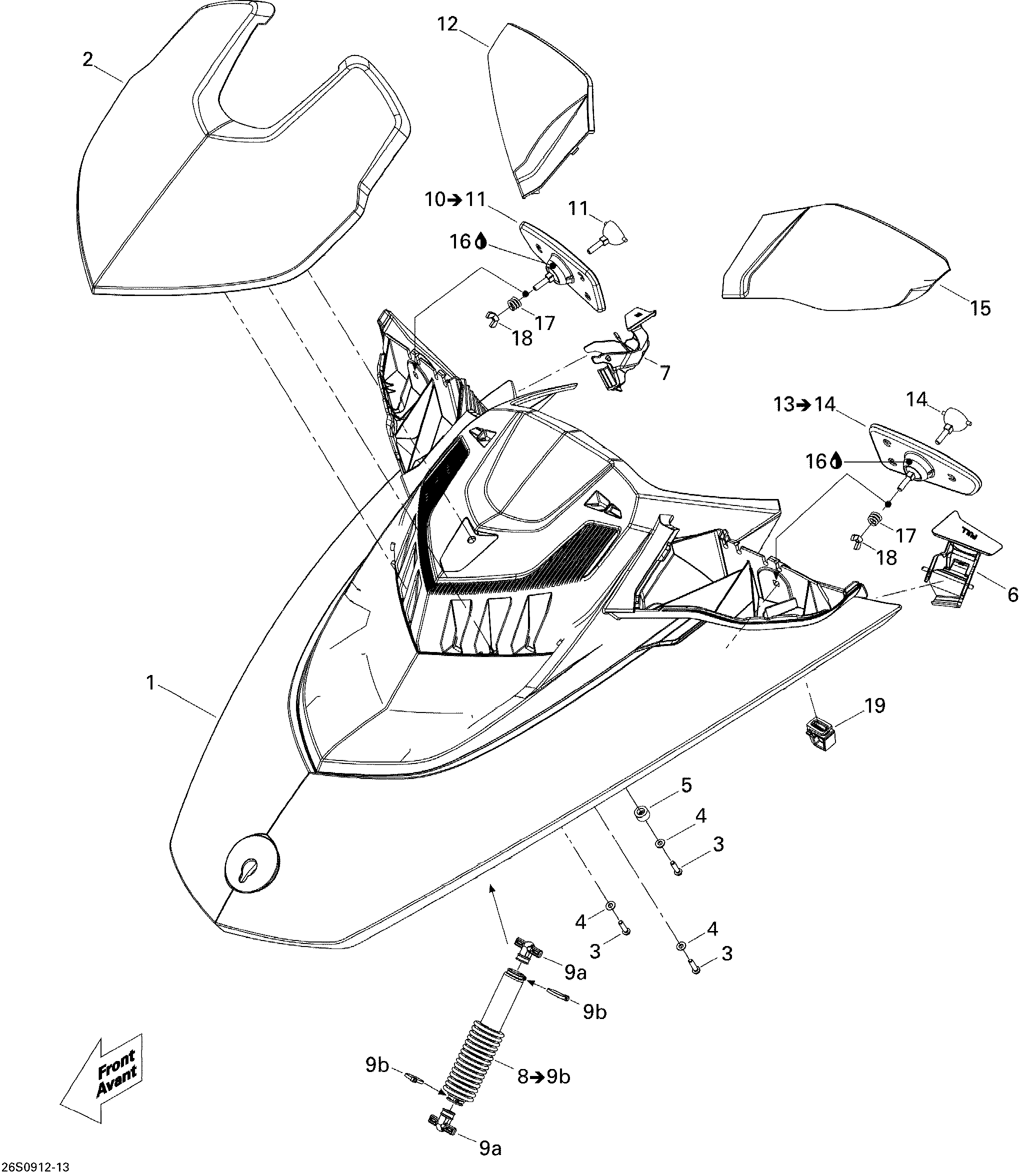

09- Front Cover для BRP GTX LIMITED iS 255 - 2009
-
№АртикулНазвание
-
1269501701 Hood Ass'y, TopazHood Ass'y, Topaz
-
2269501663 Front Upper Deflector, BlackFront Upper Deflector, Black
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
4234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
5291001203 SpacerSpacer
-
6269501697 LH LatchLH Latch
-
7269501702 RH LatchRH Latch
-
8269501664 Shock Absorber. Includes 8 to 9bShock Absorber. Includes 8 to 9b
-
9a269501717 Shock End PieceShock End Piece
-
9b293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
10269501693 RH Mirror Ass'y. Includes 10 to 11RH Mirror Ass'y. Includes 10 to 11
-
11269500079 Mirror Ball JointMirror Ball Joint
-
12269501694 RH Mirror Housing, TopazRH Mirror Housing, Topaz
-
13269501695 LH Mirror Ass'y. Includes 13 to 14LH Mirror Ass'y. Includes 13 to 14
-
14269500079 Mirror Ball JointMirror Ball Joint
-
15269501696 LH Mirror Housing, TopazLH Mirror Housing, Topaz
-
16293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
17269500453 Mirror SpringMirror Spring
-
18232661600 Wing Nut M6Wing Nut M6
-
19293830135 Rubber BumperRubber Bumper
