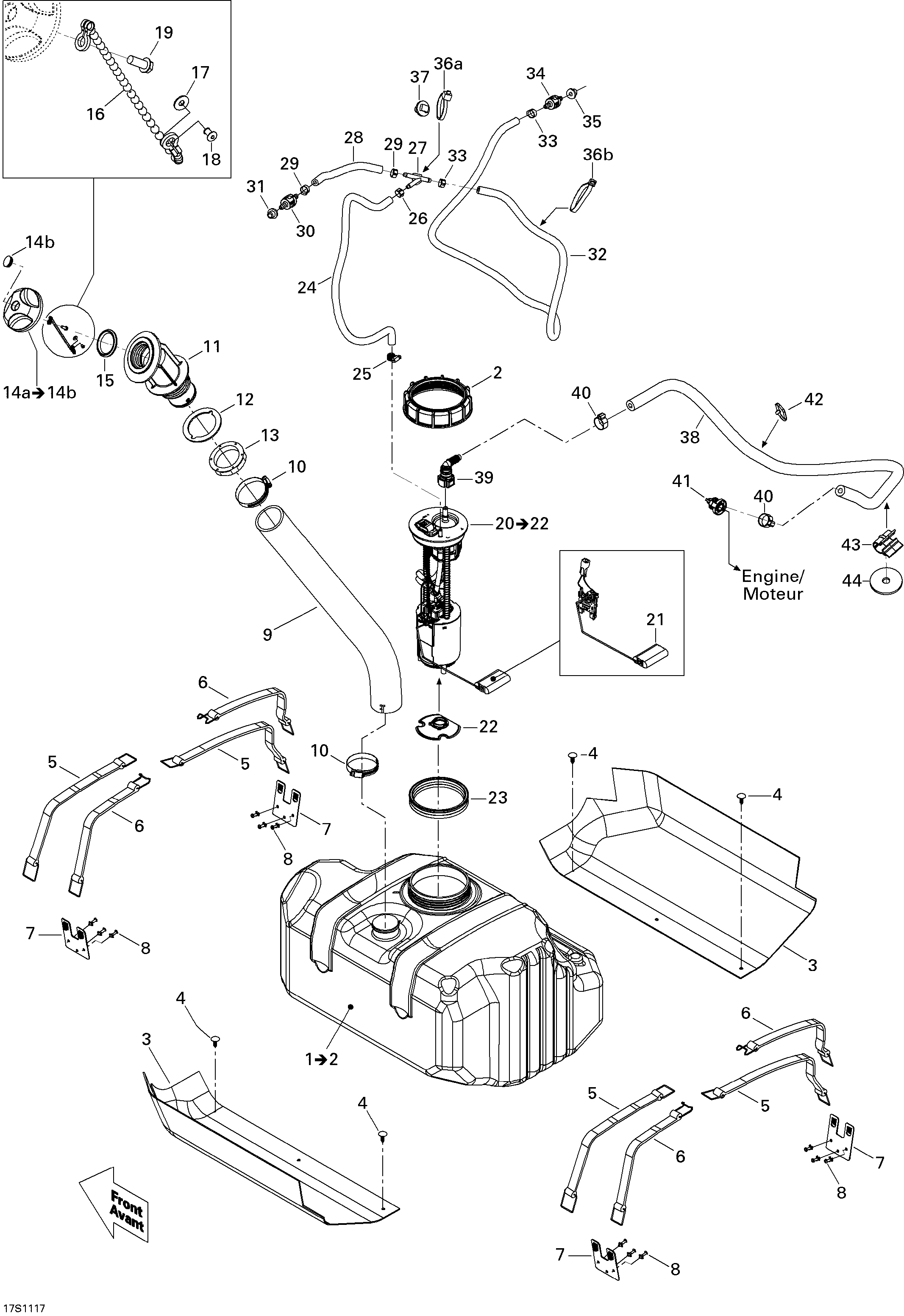

02- Fuel System для BRP GTS Pro 130 - 2011
-
№АртикулНазвание
-
1275500795 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2250100062 Special Nut M130Special Nut M130
-
3293830094 Rubber PadRubber Pad
-
4293730011 Dart, BlackDart, Black
-
5293850093 StrapStrap
-
6293850094 Fuel Tank StrapFuel Tank Strap
-
7293850066 Strap ClipStrap Clip
-
8293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
9275500786 Fuel Filler Neck HoseFuel Filler Neck Hose
-
10293650081 Norma ClampNorma Clamp
-
11275500803 Filler NeckFiller Neck
-
12293250029 GasketGasket
-
13211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
14a275500430 Fuel Tank Cap, Black. Includes 14a to 14bFuel Tank Cap, Black. Includes 14a to 14b
-
14b293000034 Snap Cap, BlackSnap Cap, Black
-
15293250211 GasketGasket
-
16275500507 Fuel Cap ChainFuel Cap Chain
-
17234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
18390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
19241140060 Screw K40 X 10Screw K40 X 10
-
20270600102 Fuel Pump Ass'y. Includes 20 to 22Fuel Pump Ass'y. Includes 20 to 22
-
21275500772 Sensor LeverSensor Lever
-
22270600108 Fuel FilterFuel Filter
-
23293250173 GasketGasket
-
24275500549 Hose 1/4''Hose 1/4''
-
25293650084 Norma ClampNorma Clamp
-
26293650025 Oetiker Gear ClampOetiker Gear Clamp
-
27293710059 Y-FittingY-Fitting
-
28204300184 Hose-1/4Hose-1/4
-
29293650025 Oetiker Gear ClampOetiker Gear Clamp
-
30275500770 Check ValveCheck Valve
-
31293720029 GrommetGrommet
-
32275500549 Hose 1/4''Hose 1/4''
-
33293650025 Oetiker Gear ClampOetiker Gear Clamp
-
34275500774 Check ValveCheck Valve
-
35293720029 GrommetGrommet
-
36a414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36b293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37293730040 Mount DartMount Dart
-
38296000331 BoyauBoyau
-
39275500700 Quick Attach 90°Quick Attach 90°
-
40293650053 Crimp ClampCrimp Clamp
-
41293710105 Elbow Fitting 90°Elbow Fitting 90°
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43275500528 Hose RetainerHose Retainer
-
44250200028 Rubber WasherRubber Washer
