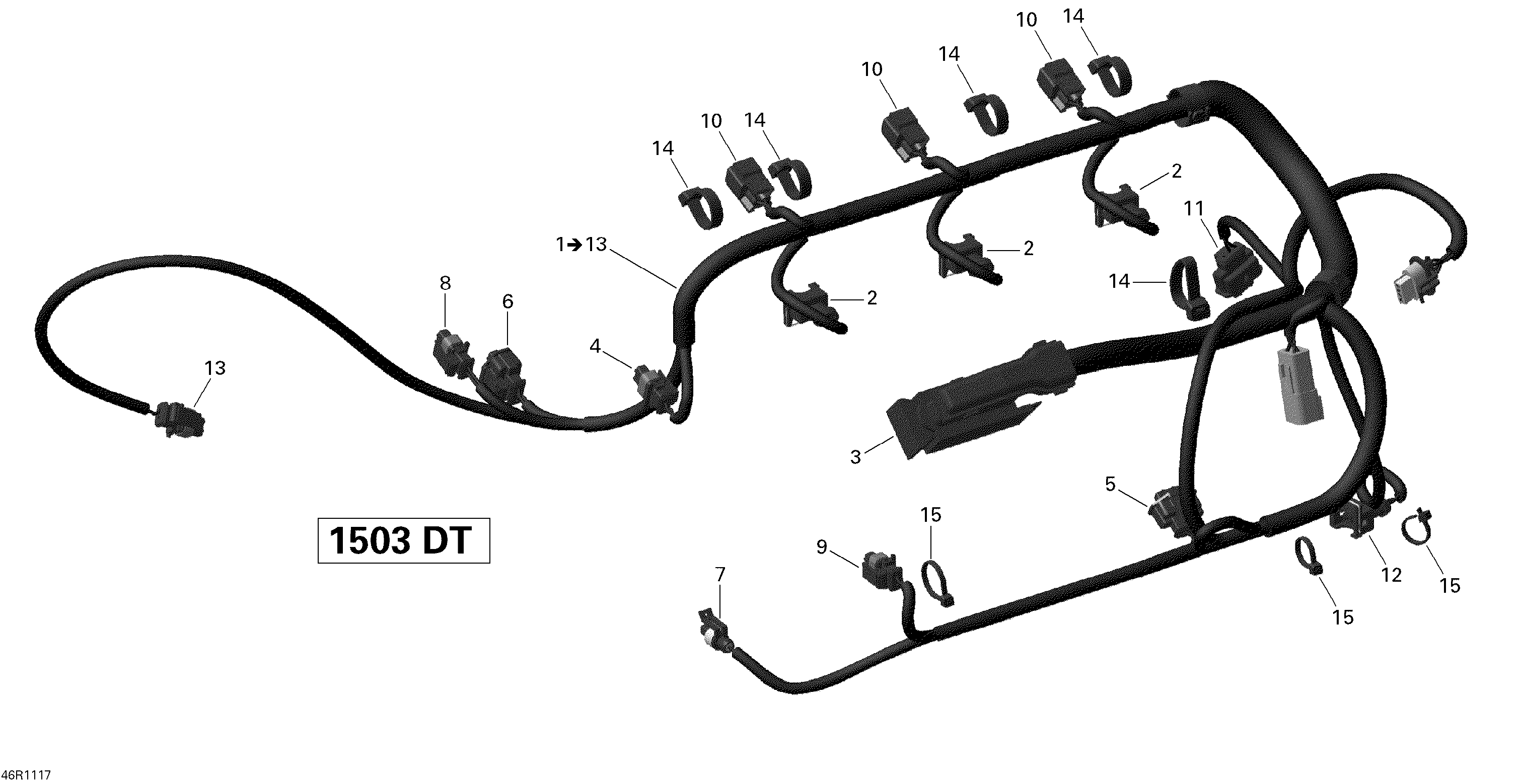

10- Engine Harness для BRP GTS Pro 130 - 2011
-
№АртикулНазвание
-
1420665205 Engine Wiring Harness Ass'y. Includes 1 to 13Engine Wiring Harness Ass'y. Includes 1 to 13
-
2415128566 Male Housing, 2 Circuits, AmpMale Housing, 2 Circuits, Amp
-
3420664450 ECM ConnectorECM Connector
-
4278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
5278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
6278001830 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
7278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
10278001832 Connector, Stick CoilConnector, Stick Coil
-
11278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
12415128566 Male Housing, 2 Circuits, AmpMale Housing, 2 Circuits, Amp
-
13278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14420866716 Tie-RapTie-Rap
-
15420866714 Tie RapTie Rap
