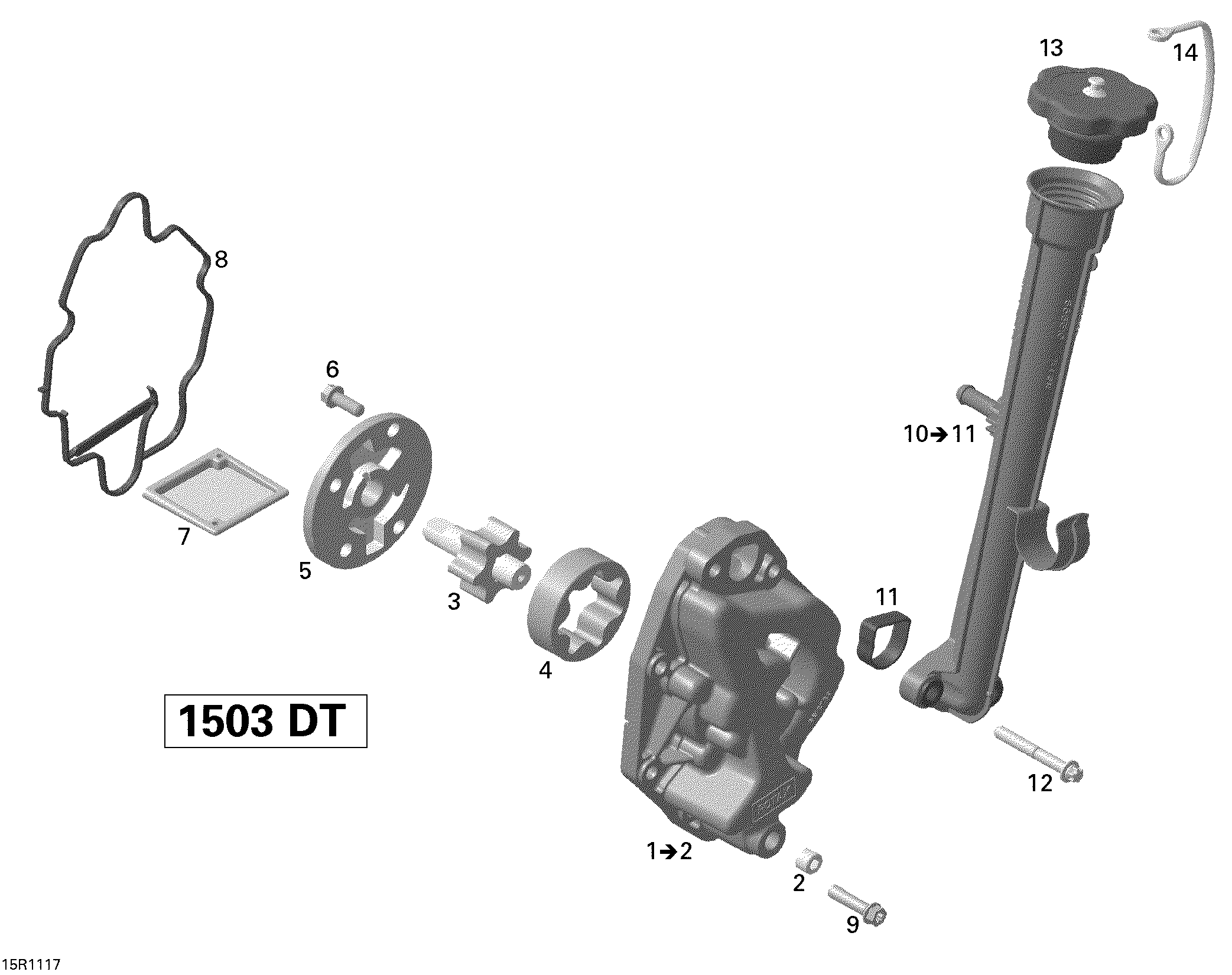

02- Oil Separator для BRP GTS Pro 130 - 2011
-
№АртикулНазвание
-
1420812721 Oil Pump Housing. Includes 1 to 2Oil Pump Housing. Includes 1 to 2
-
2420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
3420837543 Oil Pump Shaft Ass'yOil Pump Shaft Ass'y
-
4420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
5420811850 Oil Pump CoverOil Pump Cover
-
6420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420856520 Oil SieveOil Sieve
-
8420631486 GasketGasket
-
9420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420856511 Oil Filler Tube. Includes 10 to 11Oil Filler Tube. Includes 10 to 11
-
11420430240 GasketGasket
-
12420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
13420956923 Plug Cover, YellowPlug Cover, Yellow
-
14420660620 Retaining BandRetaining Band
