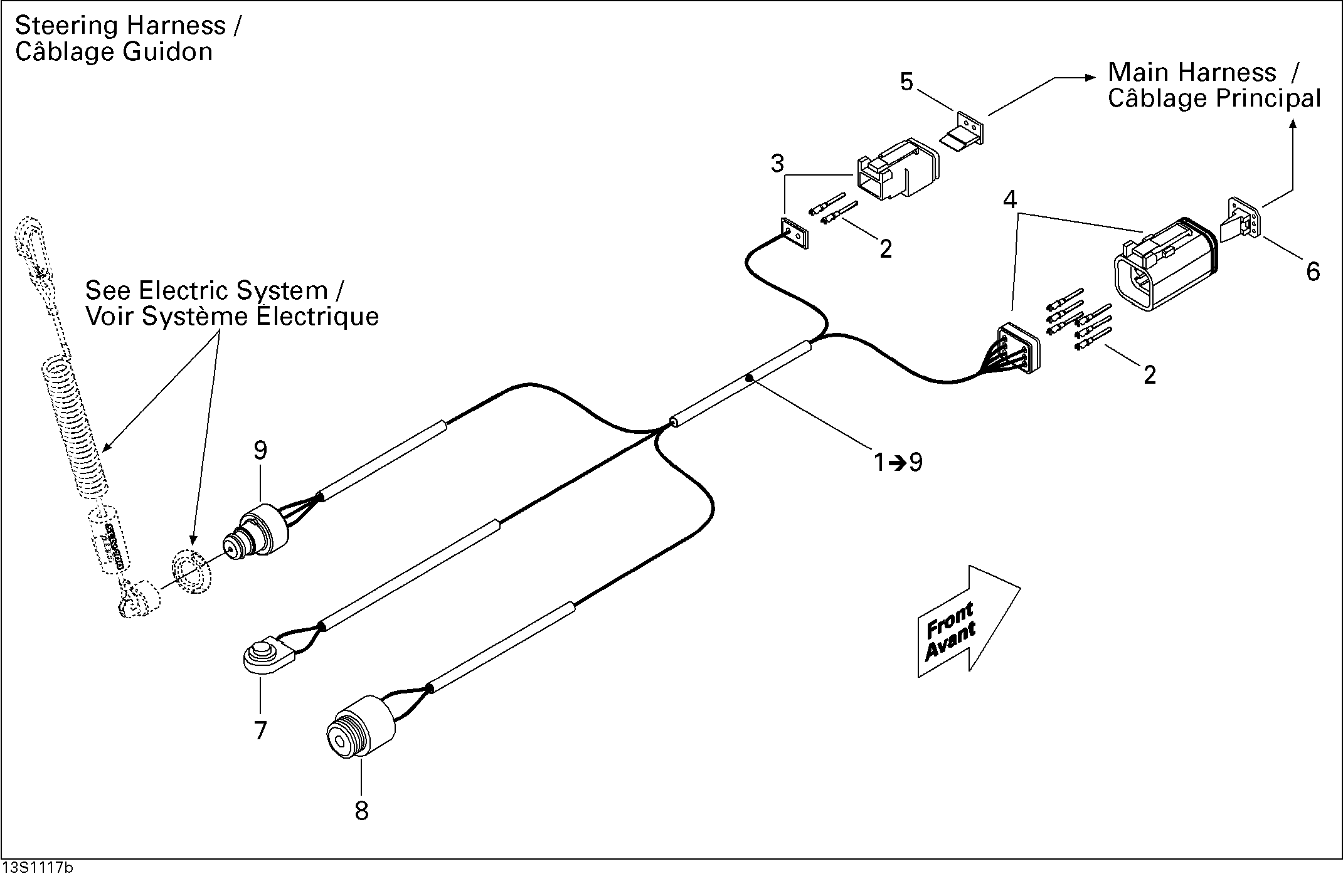

10- Electrical Harness 2 для BRP GTS Pro 130 - 2011
-
№АртикулНазвание
-
1278002383 Steering Harness Ass'y. SERVSteering Harness Ass'y. SERV
-
2278000632 Female Terminal. SERVFemale Terminal. SERV
-
3409207300 Female Connector, 2 Circuits. SERVFemale Connector, 2 Circuits. SERV
-
4278000736 Male Connector, 6 Circuits. SERVMale Connector, 6 Circuits. SERV
-
5409207100 Female Lock, 2 Circuits. SERVFemale Lock, 2 Circuits. SERV
-
6278000737 Male Lock, 6 Circuits. SERVMale Lock, 6 Circuits. SERV
-
7295501137 Start/Stop Switch Kit. SERVStart/Stop Switch Kit. SERV
-
8278002290 Buzzer. SERVBuzzer. SERV
-
9278002350 Safety Switch. SERVSafety Switch. SERV
