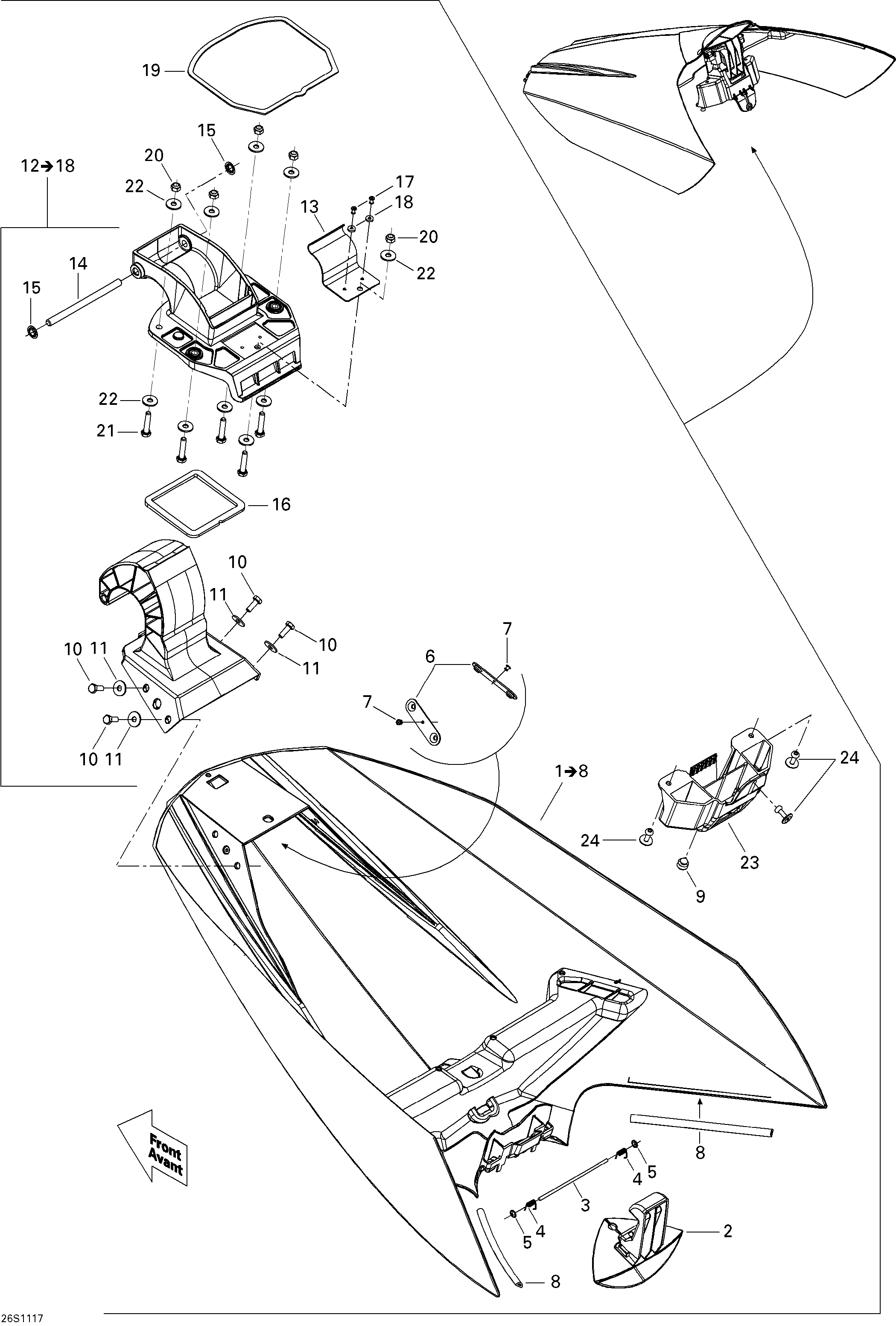

09- Front Cover для BRP GTS Pro 130 - 2011
-
№АртикулНазвание
-
1269501779 Storage Cover Ass'y. Includes 1 to 8Storage Cover Ass'y. Includes 1 to 8
-
2269700098 Latch LeverLatch Lever
-
3269501479 PinPin
-
4291000922 Latch SpringLatch Spring
-
5250100061 Push NutPush Nut
-
6277001479 PlatePlate
-
7293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
8293250176 GasketGasket
-
9293830005 Rubber PlugRubber Plug
-
10207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
11234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12269501446 Hinge Ass'y. Includes 12 to 18Hinge Ass'y. Includes 12 to 18
-
13269700099 Hinge SpringHinge Spring
-
14269700024 AxleAxle
-
15250100046 Push NutPush Nut
-
16293250155 Upper GasketUpper Gasket
-
17293150143 Pop Rivet 1/8Pop Rivet 1/8
-
18234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
19293250166 GasketGasket
-
20232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
21207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
22234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23269501480 Latch BaseLatch Base
-
24293150123 Pop Rivet 3/16''Pop Rivet 3/16''
