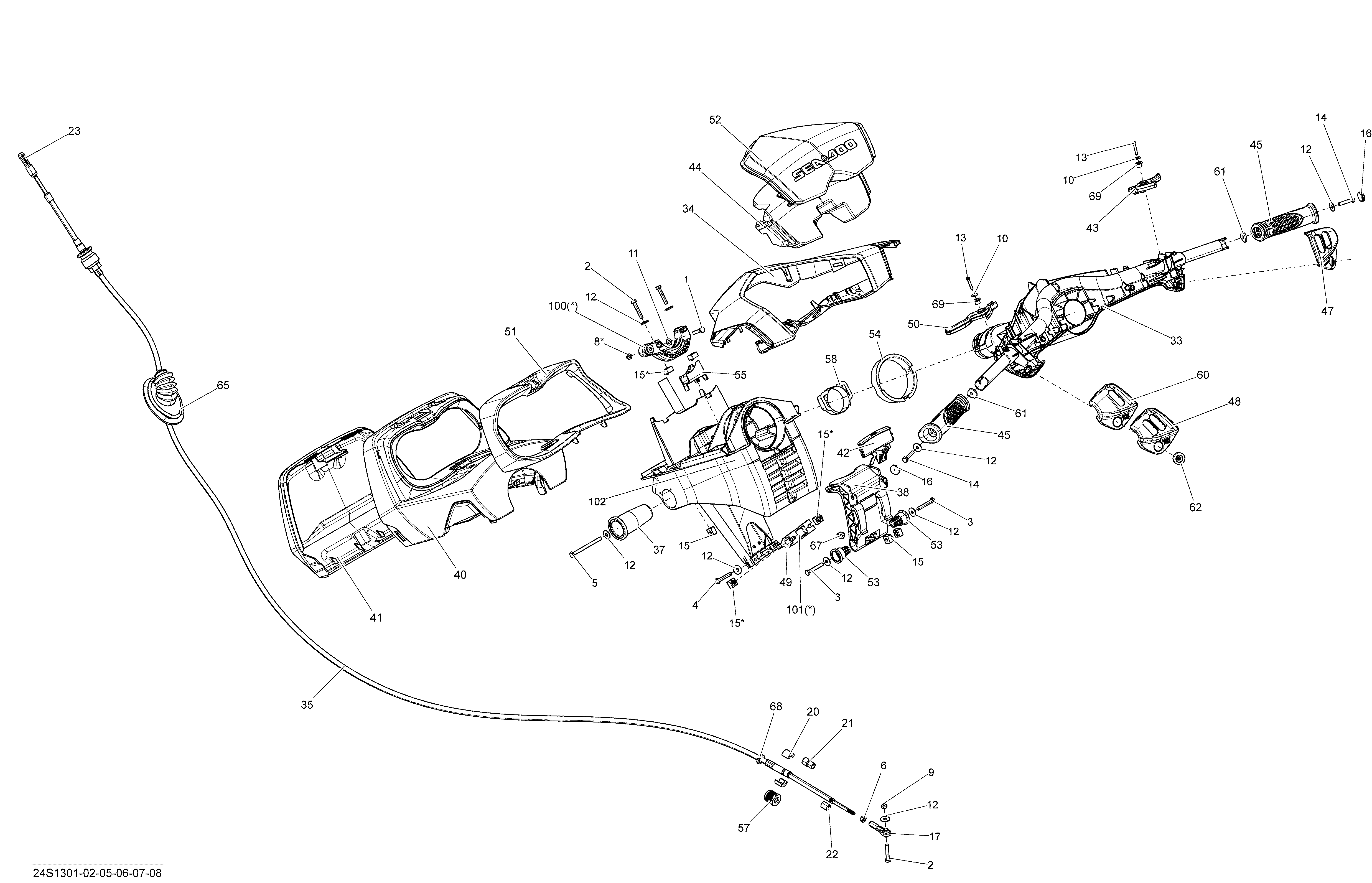

07- Steering для BRP GTX LTD iS 260 - 2013
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
3207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
5207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
6211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
8232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
11234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
14250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
15269501166 Nut Housing Ass'yNut Housing Ass'y
-
16277000203 Cap, BlackCap, Black
-
17277000775 Ball JointBall Joint
-
20277001527 Half RingHalf Ring
-
21277001583 Large BootLarge Boot
-
22277001582 Small BootSmall Boot
-
23277001180 Ball JointBall Joint
-
33277001596 SteeringSteering
-
34277001597 Steering CoverSteering Cover
-
35277001602 Steering CableSteering Cable
-
37277001605 Steering Support PivotSteering Support Pivot
-
38277001658 Handle Ass'yHandle Ass'y
-
40277001612 Gauge SupportGauge Support
-
41277001613 Gauge Support CoverGauge Support Cover
-
42277001616 LockLock
-
43277001620 Throttle HandleThrottle Handle
-
44277001621 Top FoamTop Foam
-
45277001624 Handle GripHandle Grip
-
47277001625 RH Housing CoverRH Housing Cover
-
48277001626 LH Housing CoverLH Housing Cover
-
49277001655 Thrust Support Ass'yThrust Support Ass'y
-
50277001629 Reverse HandleReverse Handle
-
51277001630 Gauge Trim, BlackGauge Trim, Black
-
52277001886 Steering Pad, MagnesiumSteering Pad, Magnesium
-
53277001652 PivotPivot
-
54277001653 Wear RingWear Ring
-
55277001654 SpacerSpacer
-
57277001729 Steering Cable LockSteering Cable Lock
-
58277001741 Wear RingWear Ring
-
60277001860 LH Housing CoverLH Housing Cover
-
61277001863 Insert Grip HandleInsert Grip Handle
-
62277001887 Knob SwitchKnob Switch
-
65293720083 GrommetGrommet
-
67293830005 Rubber PlugRubber Plug
-
68293830063 Rubber WasherRubber Washer
-
69293900091 BushingBushing
-
100277001779 Support Ass'ySupport Ass'y
-
101277001655 Thrust Support Ass'yThrust Support Ass'y
-
102277001896 Steering SupportSteering Support
