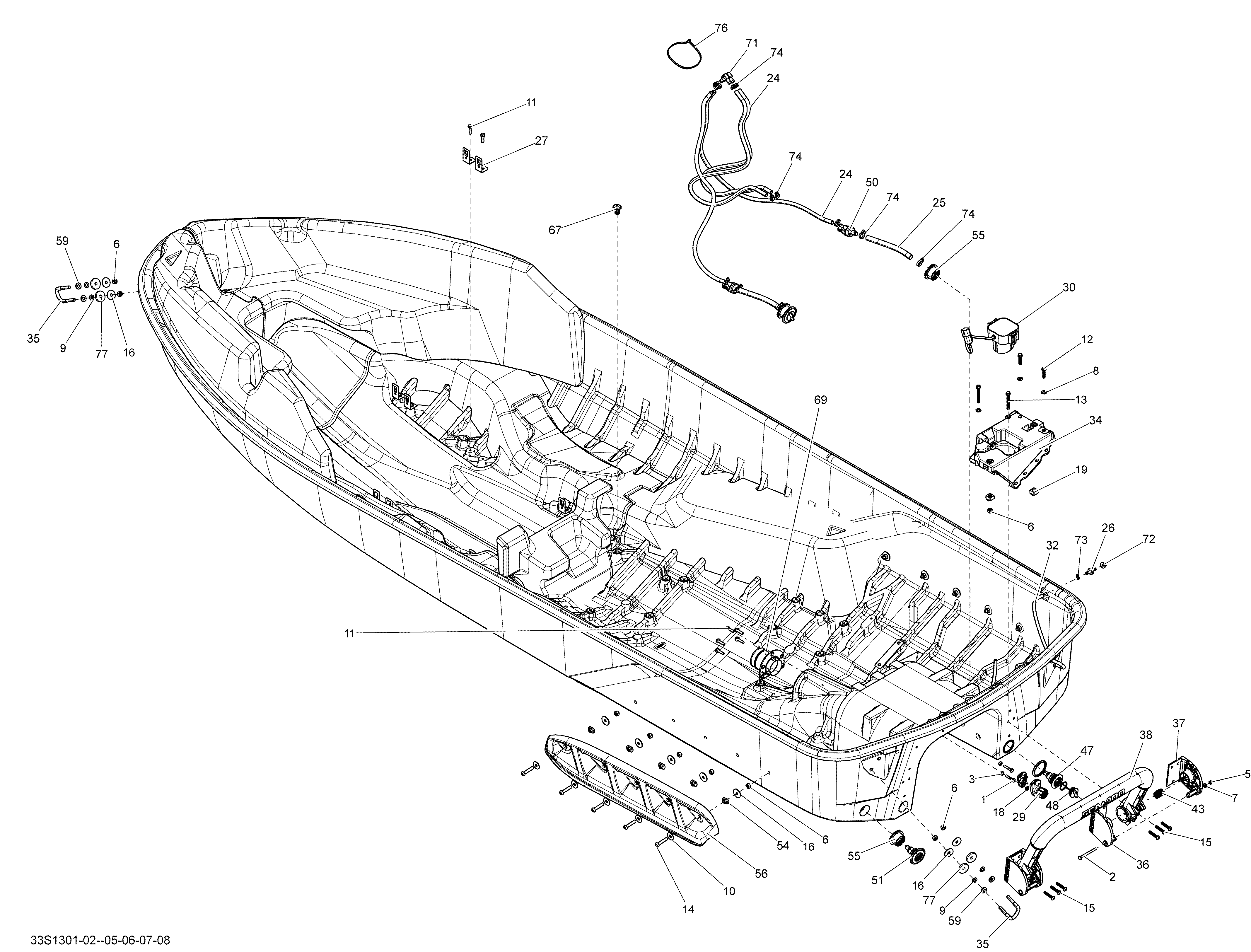

09- Hull для BRP GTX LTD iS 260 - 2013
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
3232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234080600 Flat Washer 8 mmFlat Washer 8 mm
-
9234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
9234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
10234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
12243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
13243165560 Flanged Hex. Screw M6.81 X 55Flanged Hex. Screw M6.81 X 55
-
14250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
15250000468 Torx ScrewTorx Screw
-
16250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
18250200114 Sealing WasherSealing Washer
-
19269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
24415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
25275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
26275500499 Check ValveCheck Valve
-
27275500743 Strap Clip 90°Strap Clip 90°
-
29277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
30278002954 Depth SensorDepth Sensor
-
32275500446 Hose 6 mmHose 6 mm
-
34278002343 Battery Base Ass'yBattery Base Ass'y
-
35292000933 U-ClampU-Clamp
-
36292001509 A Section SupportA Section Support
-
37292001510 B Section SupportB Section Support
-
38292001204 Overmolded BarOvermolded Bar
-
43292001259 SpringSpring
-
47292001315 Drain Neck Ass'yDrain Neck Ass'y
-
48292001352 Plug Drain Ass'yPlug Drain Ass'y
-
50292001310 Bailer Ass'yBailer Ass'y
-
51292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
54292001349 Spacer SponsonSpacer Sponson
-
55292001371 BushingBushing
-
56292001513 LH SponsonLH Sponson
-
56292001514 RH SponsonRH Sponson
-
59293050001 Flat WasherFlat Washer
-
67293450290 Insert Capuchon M8Insert Capuchon M8
-
69293450306 Hull InsertHull Insert
-
71293710117 Elbow Fitting 90°Elbow Fitting 90°
-
72293720029 GrommetGrommet
-
73293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
74293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
76293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293830037 Rubber WasherRubber Washer
-
80211200006 Flat Washer, StainlessFlat Washer, Stainless
