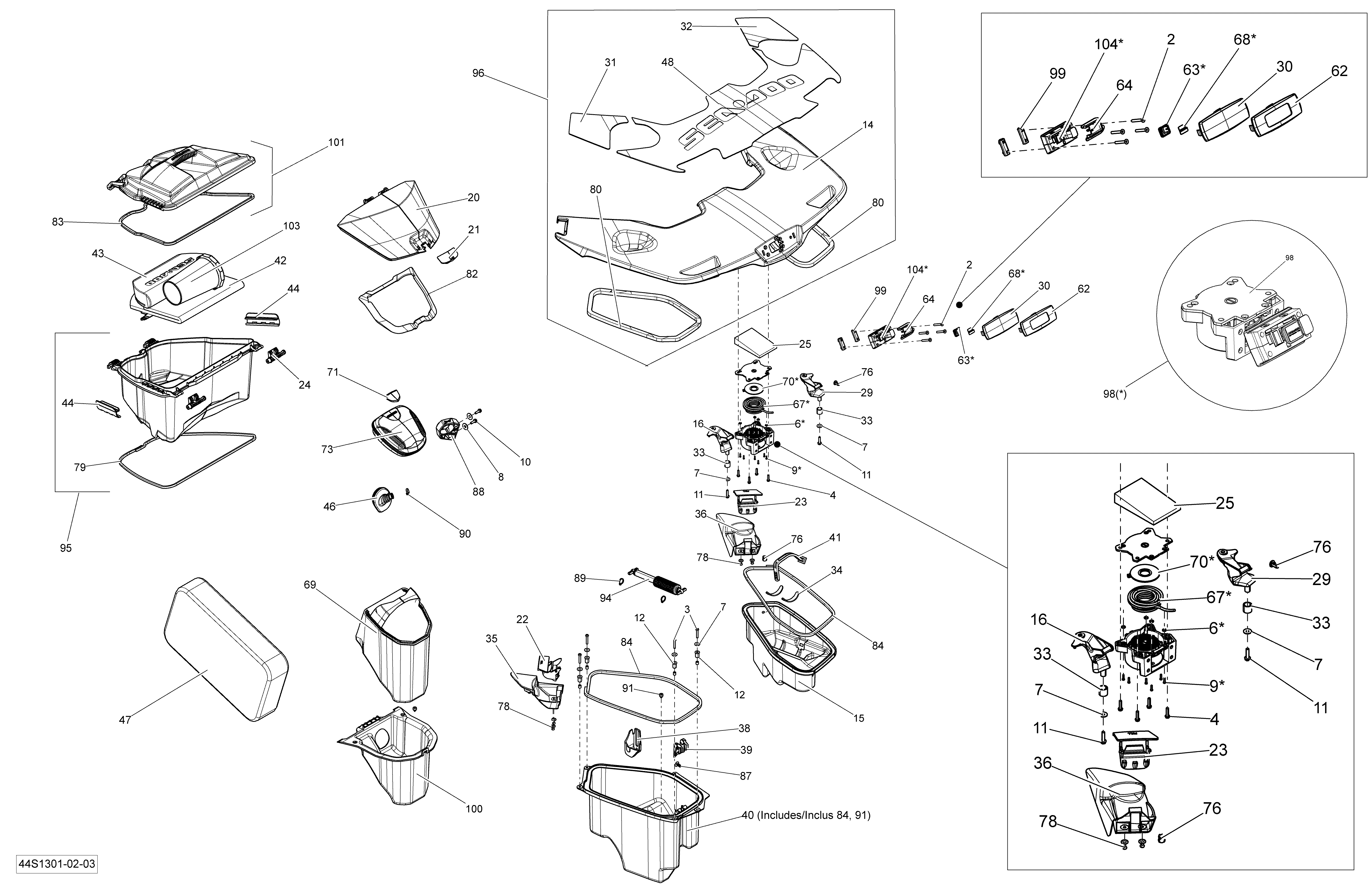

09- Storage Compartments для BRP GTX LTD iS 260 - 2013
-
№АртикулНазвание
-
2205364560 Socket Screw Head M6 X 45Socket Screw Head M6 X 45
-
3205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
6234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9241731260 Oval Philipp Screw KA30 x 12Oval Philipp Screw KA30 x 12
-
10243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
11243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
12250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
14264000034 Rear Platform Ass'yRear Platform Ass'y
-
15264000002 RH Rear TrayRH Rear Tray
-
16264000003 LH Pivot SupportLH Pivot Support
-
20264000090 Glove Door, AntraciteGlove Door, Antracite
-
20264000016 Glove Door, Tinted BlackGlove Door, Tinted Black
-
21264000091 Latch, BlackLatch, Black
-
22264000020 LH LatchLH Latch
-
23264000021 RH LatchRH Latch
-
24264000024 LatchLatch
-
25264000025 Platform FoamPlatform Foam
-
29264000032 RH Pivot SupportRH Pivot Support
-
30264000033 Rear Rewind CapRear Rewind Cap
-
31264000040 LH Platform CarpetLH Platform Carpet
-
32264000041 RH Platform CarpetRH Platform Carpet
-
33264000042 SpacerSpacer
-
34264000043 Tray PadTray Pad
-
35264000055 LH Latch Base, BlackLH Latch Base, Black
-
36264000056 RH Latch Base, BlackRH Latch Base, Black
-
38264000092 StiffenerStiffener
-
39264000093 StiffenerStiffener
-
40264000097 LH TrayLH Tray
-
41269500408 StrapStrap
-
42269501744 Drybag, 10 LDrybag, 10 L
-
43269501318 Anchor SandbagAnchor Sandbag
-
44269501609 ClipClip
-
46279000196 Cable GrommetCable Grommet
-
47280000493 Cover GTX iS LTDCover GTX iS LTD
-
48291002585 Rear Platform CarpetRear Platform Carpet
-
62291002725 Rear Rewind FrameRear Rewind Frame
-
63291002726 ButtonButton
-
64291002727 Under CamUnder Cam
-
67291002733 Rope 3/16''Rope 3/16''
-
68291002754 Button CapButton Cap
-
69291002761 Protection LinerProtection Liner
-
70291002762 Inside CoverInside Cover
-
71291002793 Sea-Doo DecalSea-Doo Decal
-
73291002814 Removable Case Ass'yRemovable Case Ass'y
-
76293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
78293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
79293250161 GasketGasket
-
80293250186 GasketGasket
-
82293250204 GasketGasket
-
83293250210 Neoprene SealNeoprene Seal
-
84293250218 GasketGasket
-
87293730006 Dart, BlackDart, Black
-
88293730056 BracketBracket
-
89293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
90293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
91293830005 Rubber PlugRubber Plug
-
94264000099 Shock Ass'yShock Ass'y
-
95264000087 Storage Bin Ass'yStorage Bin Ass'y
-
96264000034 Rear Platform Ass'yRear Platform Ass'y
-
98291003022 Retractable Rope Ass'yRetractable Rope Ass'y
-
99291002755 Double Cage Nut Ass'yDouble Cage Nut Ass'y
-
100264000031 Glove Box Ass'yGlove Box Ass'y
-
101264000009 Storage Bin Cover Ass'yStorage Bin Cover Ass'y
-
103295100330 Safety KitSafety Kit
-
104291003023 Jam Cleat System Ass'yJam Cleat System Ass'y
