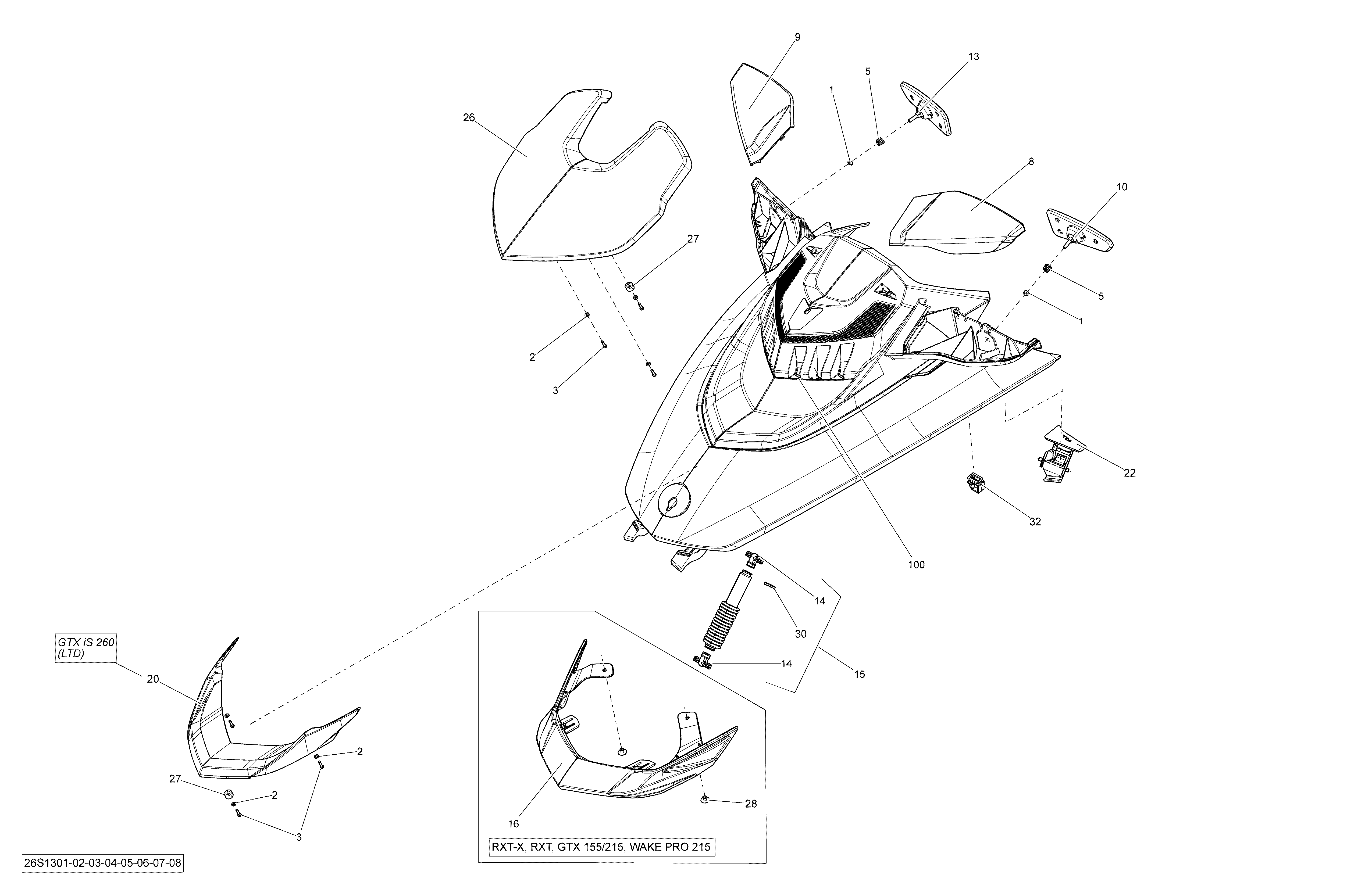

09- Front Cover для BRP GTX LTD iS 260 - 2013
-
№АртикулНазвание
-
1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
5269500453 Mirror SpringMirror Spring
-
8269501957 LH Mirror Housing, AntraciteLH Mirror Housing, Antracite
-
9269501956 RH Mirror Housing, AntraciteRH Mirror Housing, Antracite
-
10269501918 LH Mirror Ass'yLH Mirror Ass'y
-
13269501920 RH Mirror Ass'yRH Mirror Ass'y
-
14269501717 Shock End PieceShock End Piece
-
15269501664 Shock AbsorberShock Absorber
-
16269501756 Front CosmeticFront Cosmetic
-
20269501946 Front Cosmetic, ChromeFront Cosmetic, Chrome
-
22269501964 Left LatchLeft Latch
-
22269501965 Right LatchRight Latch
-
26269501983 Upper Front Deflector, AntraciteUpper Front Deflector, Antracite
-
27291001203 SpacerSpacer
-
27291001203 SpacerSpacer
-
28293150067 RivetRivet
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
32293830135 Rubber BumperRubber Bumper
-
100269501948 Hood Ass'y, AntraciteHood Ass'y, Antracite
