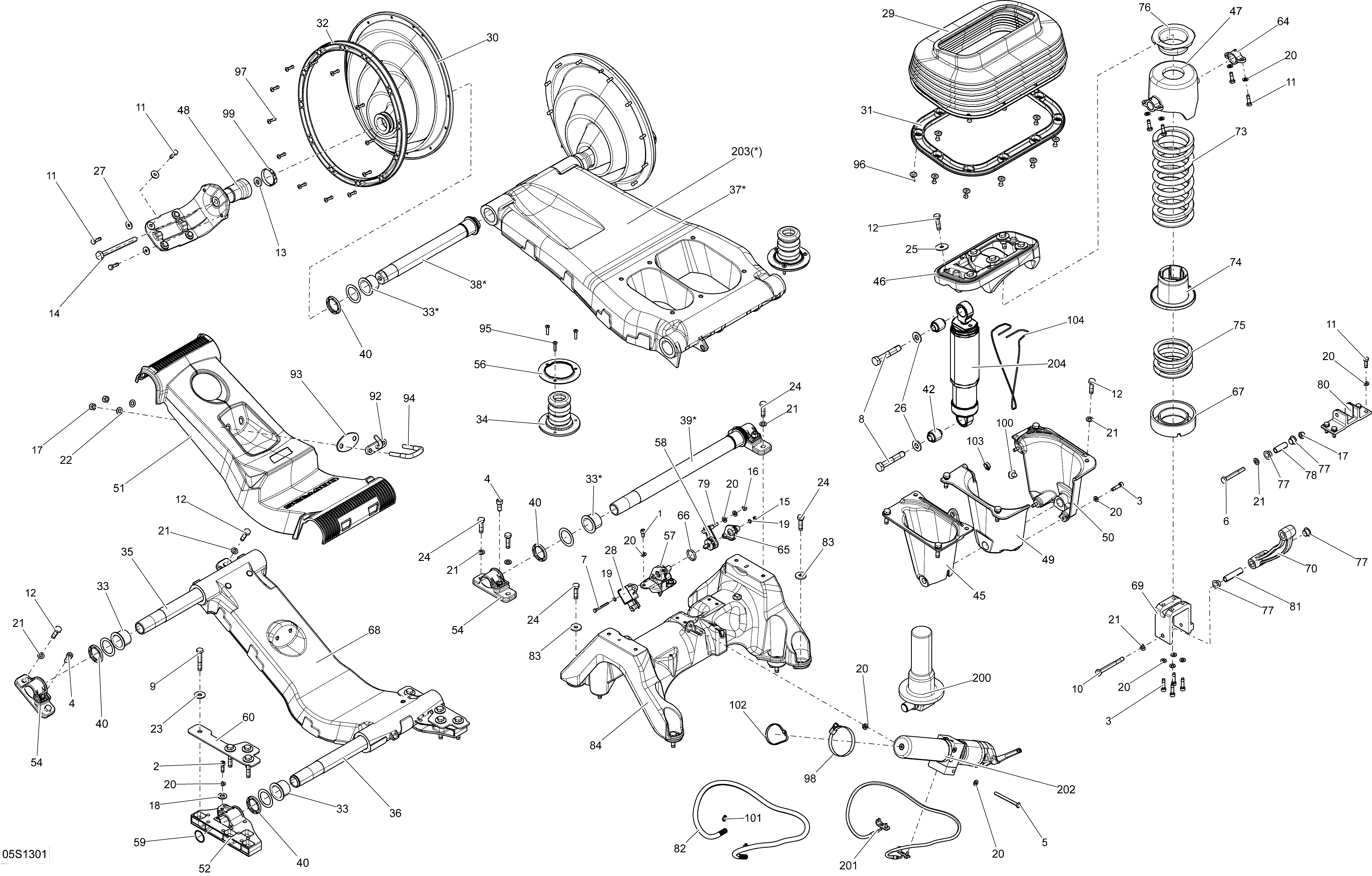

09- Seat Suspension для BRP GTX LTD iS 260 - 2013
-
№АртикулНазвание
-
1205561260 Socket Head Screw M6 X 12, Scotch GripSocket Head Screw M6 X 12, Scotch Grip
-
2205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
4205582060 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
5207067060 Hex. Screw M6 X 70Hex. Screw M6 X 70
-
6207086060 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
7207144060 Hex. Screw M4 X 40Hex. Screw M4 X 40
-
8207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
9207285060 Hex. Screw M8 X 50, Scotch GripHex. Screw M8 X 50, Scotch Grip
-
10207287560 Hex. Screw M8 x 75 (Scotch Grip)Hex. Screw M8 x 75 (Scotch Grip)
-
11207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
12207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
13211200051 Flat WasherFlat Washer
-
14230201060 Hex. Screw M10 X 110, Scotch GripHex. Screw M10 X 110, Scotch Grip
-
15232541200 Elastic Stop Nut M4Elastic Stop Nut M4
-
16232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
17232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
18234001600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
19234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
20234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21234080600 Flat Washer 8 mmFlat Washer 8 mm
-
22234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
23234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
24250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
25250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
26250200053 Flat Washer M12Flat Washer M12
-
27250200115 Flat Washer M6Flat Washer M6
-
28270000251 Position SensorPosition Sensor
-
29279000008 Central BellowsCentral Bellows
-
30279000009 Lateral BellowsLateral Bellows
-
31279000010 Retaining PlateRetaining Plate
-
32279000011 Retaining RingRetaining Ring
-
33279000019 BushingBushing
-
34279000023 Rubber BumperRubber Bumper
-
35279000031 Pivot TubePivot Tube
-
36279000033 Pivot TubePivot Tube
-
37279000000 Front Arm Ass'yFront Arm Ass'y
-
38279000038 Pivot TubePivot Tube
-
39279000041 Pivot TubePivot Tube
-
40279000047 Rubber BumperRubber Bumper
-
42279000051 BushingBushing
-
45279000055 Shock Lower HolderShock Lower Holder
-
46279000057 Shock Upper HolderShock Upper Holder
-
47279000061 Upper Spring HolderUpper Spring Holder
-
48279000065 FootrestFootrest
-
49279000070 LH Spring HolderLH Spring Holder
-
50279000074 RH Spring HolderRH Spring Holder
-
51279000080 Rear Arm MouldingRear Arm Moulding
-
52279000083 LH Rear BaseLH Rear Base
-
52279000087 RH Rear BaseRH Rear Base
-
54279000089 LH ClampLH Clamp
-
54279000092 RH ClampRH Clamp
-
56279000115 Retaining RingRetaining Ring
-
57279000098 Position Sensor BracketPosition Sensor Bracket
-
58279000099 Sensor LeverSensor Lever
-
59279000100 Retaining RingRetaining Ring
-
60279000114 Retaining PlateRetaining Plate
-
64279000106 ClampClamp
-
65279000107 Position Sensor CoverPosition Sensor Cover
-
66279000108 O-RingO-Ring
-
67279000121 Lower Spring ProtectorLower Spring Protector
-
68279000001 Rear Arm Ass'yRear Arm Ass'y
-
69279000154 Spring Alignment AdaptorSpring Alignment Adaptor
-
70279000157 Spring Alignment ArmSpring Alignment Arm
-
73279000128 Painted SpringPainted Spring
-
74279000130 Spring SpacerSpring Spacer
-
75279000131 Painted SpringPainted Spring
-
76279000134 Upper Spring ProtectorUpper Spring Protector
-
77279000137 BushingBushing
-
78279000138 SpacerSpacer
-
79279000139 Threaded RodThreaded Rod
-
80279000155 BracketBracket
-
81279000153 SpacerSpacer
-
82515175442 Tubing 6 mmTubing 6 mm
-
83279000164 Flat WasherFlat Washer
-
84279000167 Front Arm BaseFront Arm Base
-
92291002351 HookHook
-
93291001386 Finition Plate, BlackFinition Plate, Black
-
94292000933 U-ClampU-Clamp
-
95293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
96293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
97293150176 Pop Rivet 3/16''Pop Rivet 3/16''
-
98293650079 Norma ClampNorma Clamp
-
99293650199 Oetiker ClampOetiker Clamp
-
100293730040 Mount DartMount Dart
-
101293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
102293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
103414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
104708200118 Retaining CableRetaining Cable
-
200279000117 ActuatorActuator
-
201279000162 Connector HoseConnector Hose
-
202279000207 PumpPump
-
203279000000 Front Arm Ass'yFront Arm Ass'y
-
204279000126 Shock AbsorberShock Absorber
