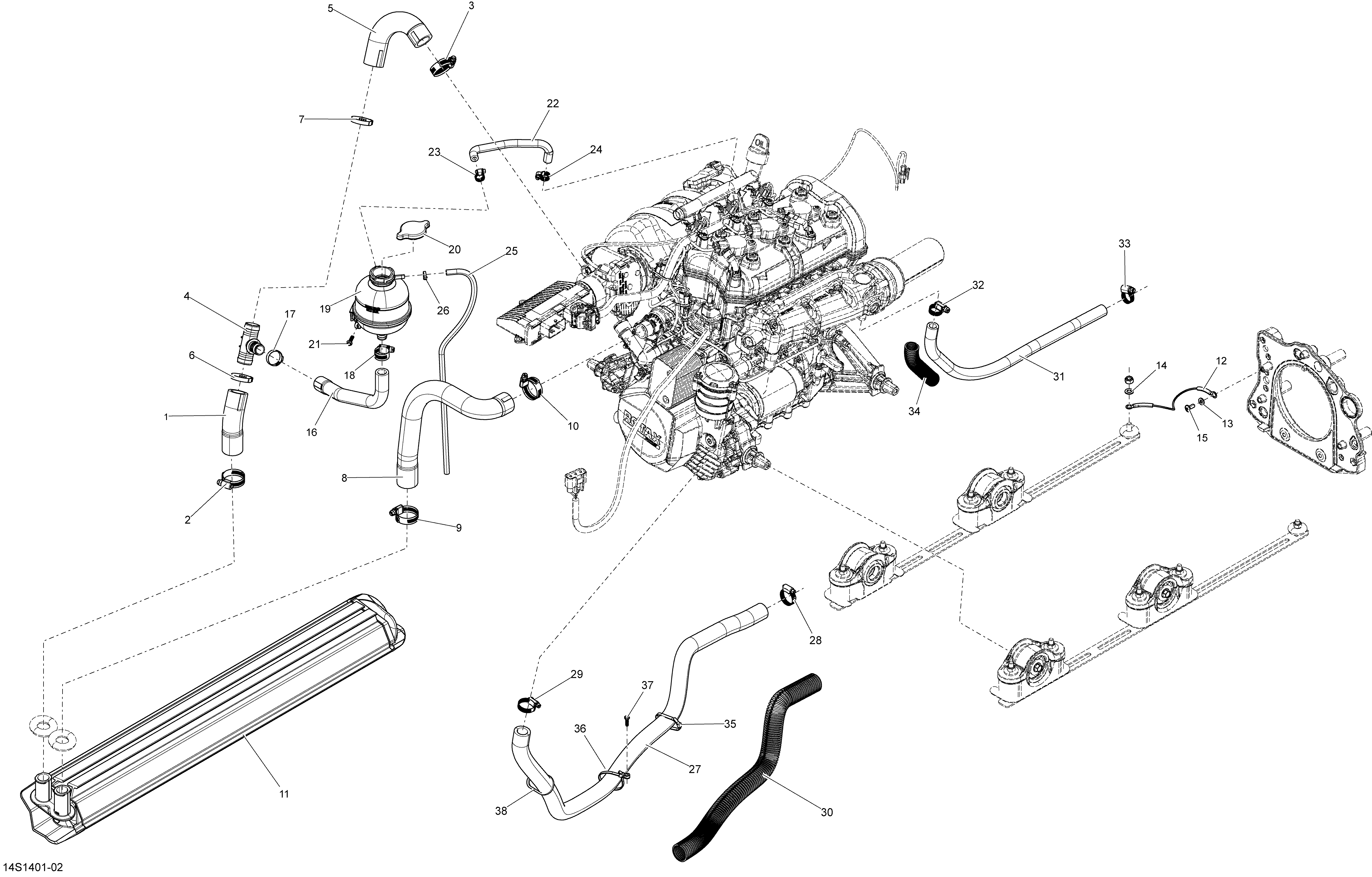

01- Cooling System _14S1401 для BRP SPARK ACE 900 HO (2up And 3up) - 2014
-
№АртикулНазвание
-
1276000292 Radiator HoseRadiator Hose
-
2293650185 Tridon Gear ClampTridon Gear Clamp
-
3293650185 Tridon Gear ClampTridon Gear Clamp
-
4509000372 T-FittingT-Fitting
-
5276000301 HoseHose
-
6509000529 Oetiker Gear ClampOetiker Gear Clamp
-
7509000529 Oetiker Gear ClampOetiker Gear Clamp
-
8276000291 Radiator HoseRadiator Hose
-
9293650185 Tridon Gear ClampTridon Gear Clamp
-
10293650185 Tridon Gear ClampTridon Gear Clamp
-
11276000314 Heat ExchangerHeat Exchanger
-
12278002892 Ground CableGround Cable
-
13234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
14234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
16276000290 HoseHose
-
17293650099 Crimp ClampCrimp Clamp
-
18293650016 Tridon ClampTridon Clamp
-
19509000802 Coolant TankCoolant Tank
-
20509000180 Pressure CapPressure Cap
-
21241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
22276000316 Formed HoseFormed Hose
-
23293650170 Tridon Gear ClampTridon Gear Clamp
-
24293650170 Tridon Gear ClampTridon Gear Clamp
-
25415080200 Hose, PolyurethaneHose, Polyurethane
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
27276001158 Hose 19 mmHose 19 mm
-
28293650051 Tridon Gear ClampTridon Gear Clamp
-
29293650051 Tridon Gear ClampTridon Gear Clamp
-
30409902200 Tubing 25 mm. Model With iBRTubing 25 mm. Model With iBR
-
31276000151 Hose 12.5 mmHose 12.5 mm
-
32293650172 Tridon Gear ClampTridon Gear Clamp
-
33293650172 Tridon Gear ClampTridon Gear Clamp
-
34409901600 Tubing 19 mmTubing 19 mm
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36293750049 Tie Rap 305 mmTie Rap 305 mm
-
37211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
