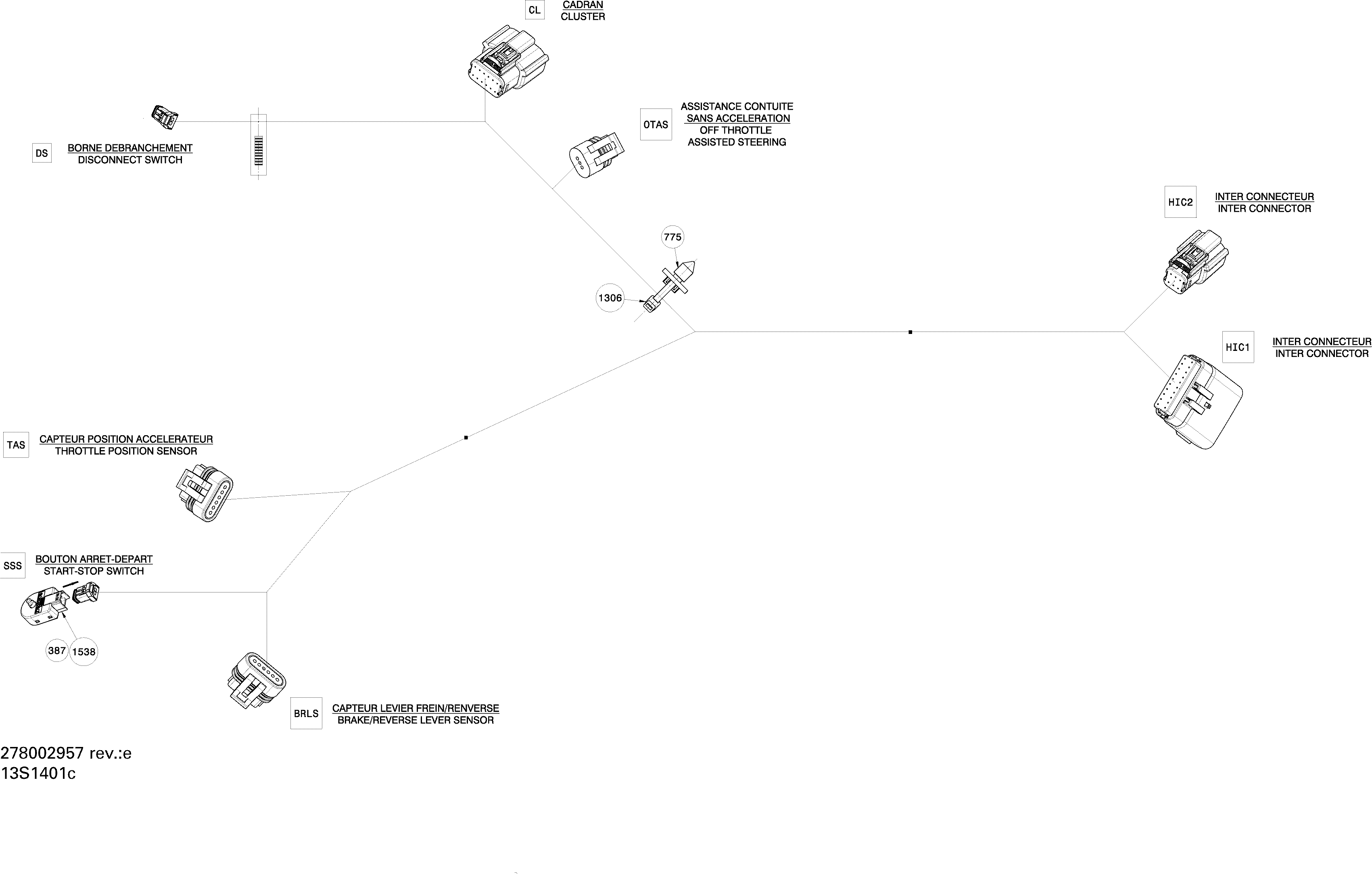

10- Electrical Harness IBR Steering_13S1401c для BRP SPARK ACE 900 HO (2up And 3up) - 2014
-
№АртикулНазвание
-
1278002957 Steering Harness Ass'y. IBRSteering Harness Ass'y. IBR
-
186515175332 Vinyl Tubing, Low Temperature. IBRVinyl Tubing, Low Temperature. IBR
-
188409902000 Tubing 12 mm. IBRTubing 12 mm. IBR
-
323515175830 Low Temperature Tubing 1/2''. IBRLow Temperature Tubing 1/2''. IBR
-
775293730040 Mount Dart. IBRMount Dart. IBR
-
BRLS278002299 Female Terminal Housing, 6 Circuits. IBRFemale Terminal Housing, 6 Circuits. IBR
-
BRLS710001119 Female Terminal. IBRFemale Terminal. IBR
-
CL278002453 Female Terminal. IBRFemale Terminal. IBR
-
CL278002860 Sealing Cap. IBRSealing Cap. IBR
-
CL278002994 Housing, 12 Circuits. IBRHousing, 12 Circuits. IBR
-
DS278002856 Housing JAE, 2 Circuits. IBRHousing JAE, 2 Circuits. IBR
-
DS278002857 Female Terminal. IBRFemale Terminal. IBR
-
HIC1278002454 Male Terminal. IBRMale Terminal. IBR
-
HIC1278002852 Housing, 20 Circuits. IBRHousing, 20 Circuits. IBR
-
HIC1278002860 Sealing Cap. IBRSealing Cap. IBR
-
HIC2278002453 Female Terminal. IBRFemale Terminal. IBR
-
HIC2278002894 Housing, 6 Circuits. IBRHousing, 6 Circuits. IBR
-
OTAS278002064 Connector, 3 Circuits. IBRConnector, 3 Circuits. IBR
-
OTAS710001119 Female Terminal. IBRFemale Terminal. IBR
-
SSS278002676 Switch Start / Stop. IBRSwitch Start / Stop. IBR
-
SSS278002856 Housing JAE, 2 Circuits. IBRHousing JAE, 2 Circuits. IBR
-
SSS278002857 Female Terminal. IBRFemale Terminal. IBR
-
TAS278002299 Female Terminal Housing, 6 Circuits. IBRFemale Terminal Housing, 6 Circuits. IBR
-
TAS710001119 Female Terminal. IBRFemale Terminal. IBR
