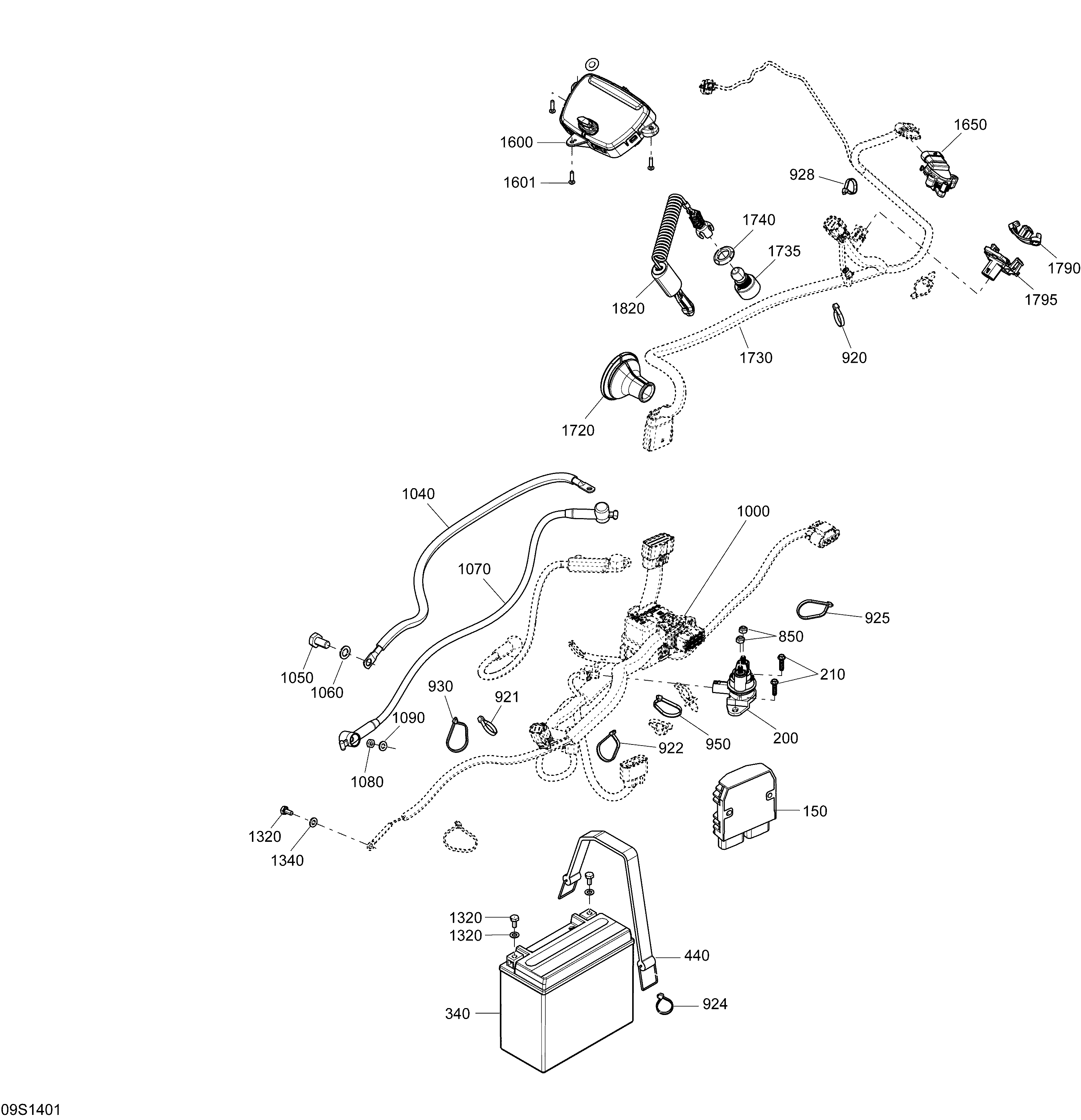

10- Electrical System _09S1401 для BRP SPARK ACE 900 HO (2up And 3up) - 2014
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
200278002347 Starter RelayStarter Relay
-
210241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
340410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
440293850093 StrapStrap
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
920414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
921414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
922414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
923414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
924414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
928414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
930414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
950414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1000278002905 Main Harness. 2+1 IBRMain Harness. 2+1 IBR
-
1000278002905 Main Harness. 1+1 IBRMain Harness. 1+1 IBR
-
1000278002648 Main Harness. 1+1Main Harness. 1+1
-
1000278002648 Main Harness. 2+1Main Harness. 2+1
-
1040278002841 Battery Ground CableBattery Ground Cable
-
1050207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
1060234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
1070278002842 Starter CableStarter Cable
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle Sensor. 1+1 IBRLH Throttle Sensor. 1+1 IBR
-
1190278002284 LH Throttle Sensor. 2+1 IBRLH Throttle Sensor. 2+1 IBR
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1320207361260 Hex. Screw M6 X 12, Scotch Grip. 1+1, 2+1Hex. Screw M6 X 12, Scotch Grip. 1+1, 2+1
-
1320207361260 Hex. Screw M6 X 12, Scotch Grip. 1+1 IBR, 2+1 IBRHex. Screw M6 X 12, Scotch Grip. 1+1 IBR, 2+1 IBR
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1340234061600 Flat Washer M6, Stainless. 1+1, 2+1Flat Washer M6, Stainless. 1+1, 2+1
-
1340234061600 Flat Washer M6, Stainless. 1+1 IBR, 2+1 IBRFlat Washer M6, Stainless. 1+1 IBR, 2+1 IBR
-
1600278003143 LCD Gauge. 1+1LCD Gauge. 1+1
-
1600278003143 LCD Gauge. 2+1LCD Gauge. 2+1
-
1600278002883 LCD Gauge with GPS. 2+1 IBRLCD Gauge with GPS. 2+1 IBR
-
1600278002883 LCD Gauge with GPS. 1+1 IBRLCD Gauge with GPS. 1+1 IBR
-
1601250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278002604 Switch. 1+1 IBR, 2+1 IBRSwitch. 1+1 IBR, 2+1 IBR
-
1720293720092 Cable GrommetCable Grommet
-
1730278002957 Steering Harness Ass'y. 2+1 IBRSteering Harness Ass'y. 2+1 IBR
-
1730278002957 Steering Harness Ass'y. 1+1 IBRSteering Harness Ass'y. 1+1 IBR
-
1730278002956 Steering Harness Ass'y. 1+1Steering Harness Ass'y. 1+1
-
1730278002956 Steering Harness Ass'y. 2+1Steering Harness Ass'y. 2+1
-
1735278002677 Emergency Switch Ass'yEmergency Switch Ass'y
-
1740278002963 Safety NutSafety Nut
-
1790278002909 OTAS ActuatorOTAS Actuator
-
1795278003008 O.T.A.S. SensorO.T.A.S. Sensor
-
1820278002843 Safety Lanyard Ass'ySafety Lanyard Ass'y
