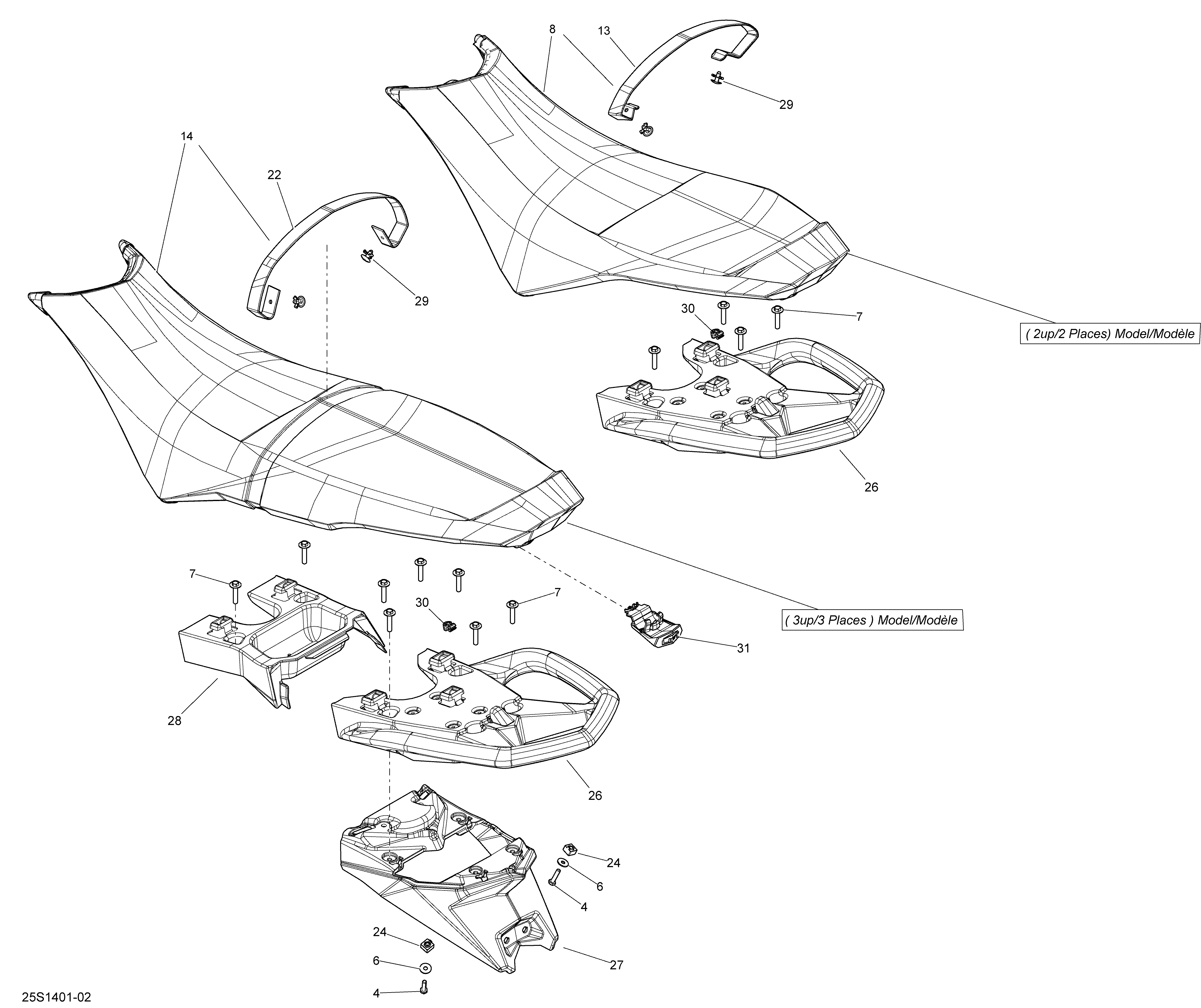

09- Seat _25S1401 для BRP SPARK ACE 900 HO (2up And 3up) - 2014
-
№АртикулНазвание
-
4207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7250000689 Hex. Cap Screw M6.8Hex. Cap Screw M6.8
-
8269002179 Seat Ass'y. (2up) ModelSeat Ass'y. (2up) Model
-
13269002368 Seat StrapSeat Strap
-
14269002437 Seat Ass'y. (3up) ModelSeat Ass'y. (3up) Model
-
22269002743 Seat StrapSeat Strap
-
24269501166 Nut Housing Ass'yNut Housing Ass'y
-
26291003384 Grab HandleGrab Handle
-
27291003556 Handle SupportHandle Support
-
28291003789 Seat SupportSeat Support
-
29293150067 RivetRivet
-
30293720100 Rubber StopperRubber Stopper
-
31269002812 HandleHandle
