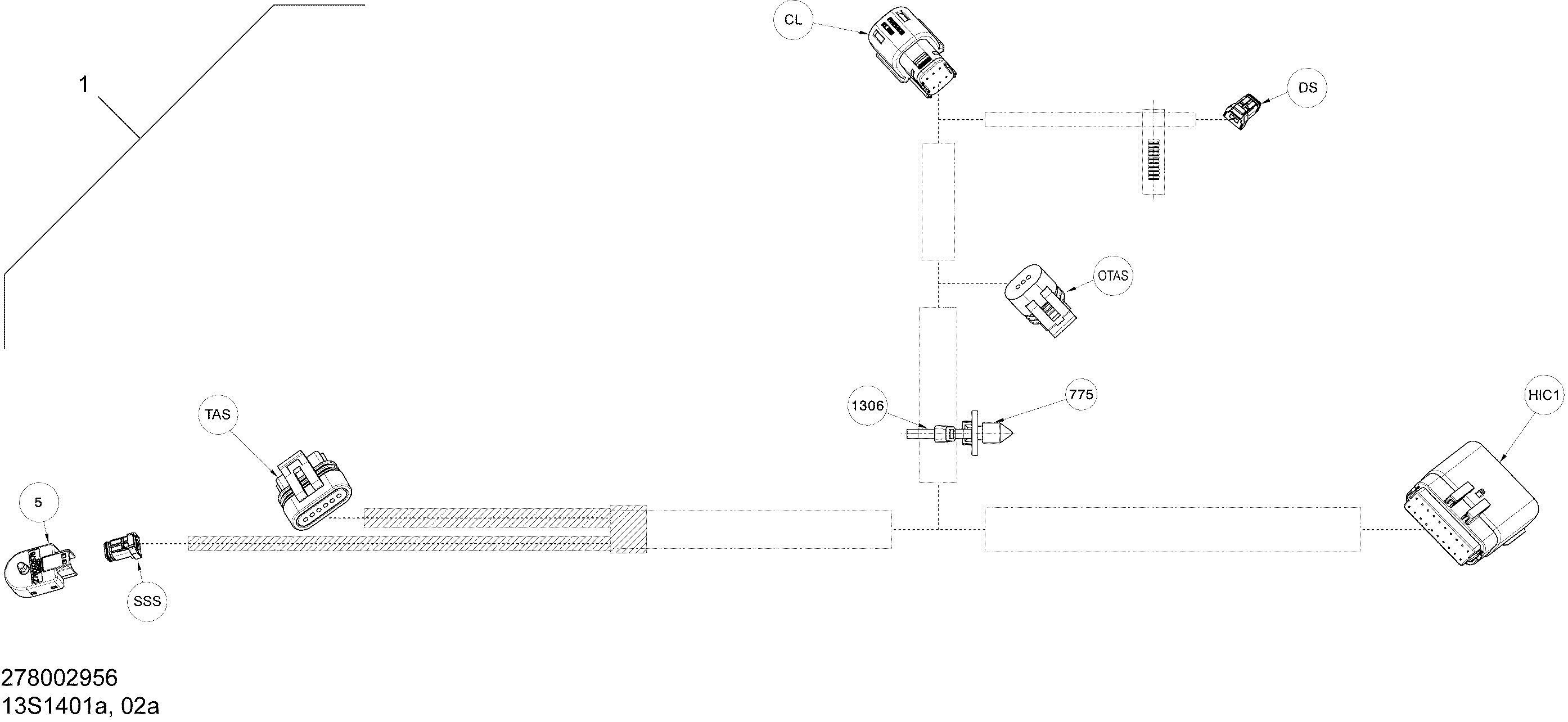

10- Electrical Harness Steering_13S1401a для BRP SPARK ACE 900 HO (2up And 3up) - 2014
-
№АртикулНазвание
-
1278002956 Steering Harness Ass'ySteering Harness Ass'y
-
5278002676 Switch Start / StopSwitch Start / Stop
-
775293730040 Mount DartMount Dart
-
1306710002714 Tie-RapTie-Rap
-
CL278002894 Housing, 6 CircuitsHousing, 6 Circuits
-
CL278002453 Female TerminalFemale Terminal
-
DS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
DS278002857 Female TerminalFemale Terminal
-
HIC1278002852 Housing, 20 CircuitsHousing, 20 Circuits
-
HIC1278002860 Sealing CapSealing Cap
-
HIC1278002454 Male TerminalMale Terminal
-
OTAS278002064 Connector, 3 CircuitsConnector, 3 Circuits
-
OTAS710001119 Female TerminalFemale Terminal
-
SSS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
SSS278002857 Female TerminalFemale Terminal
-
TAS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
TAS710001119 Female TerminalFemale Terminal
