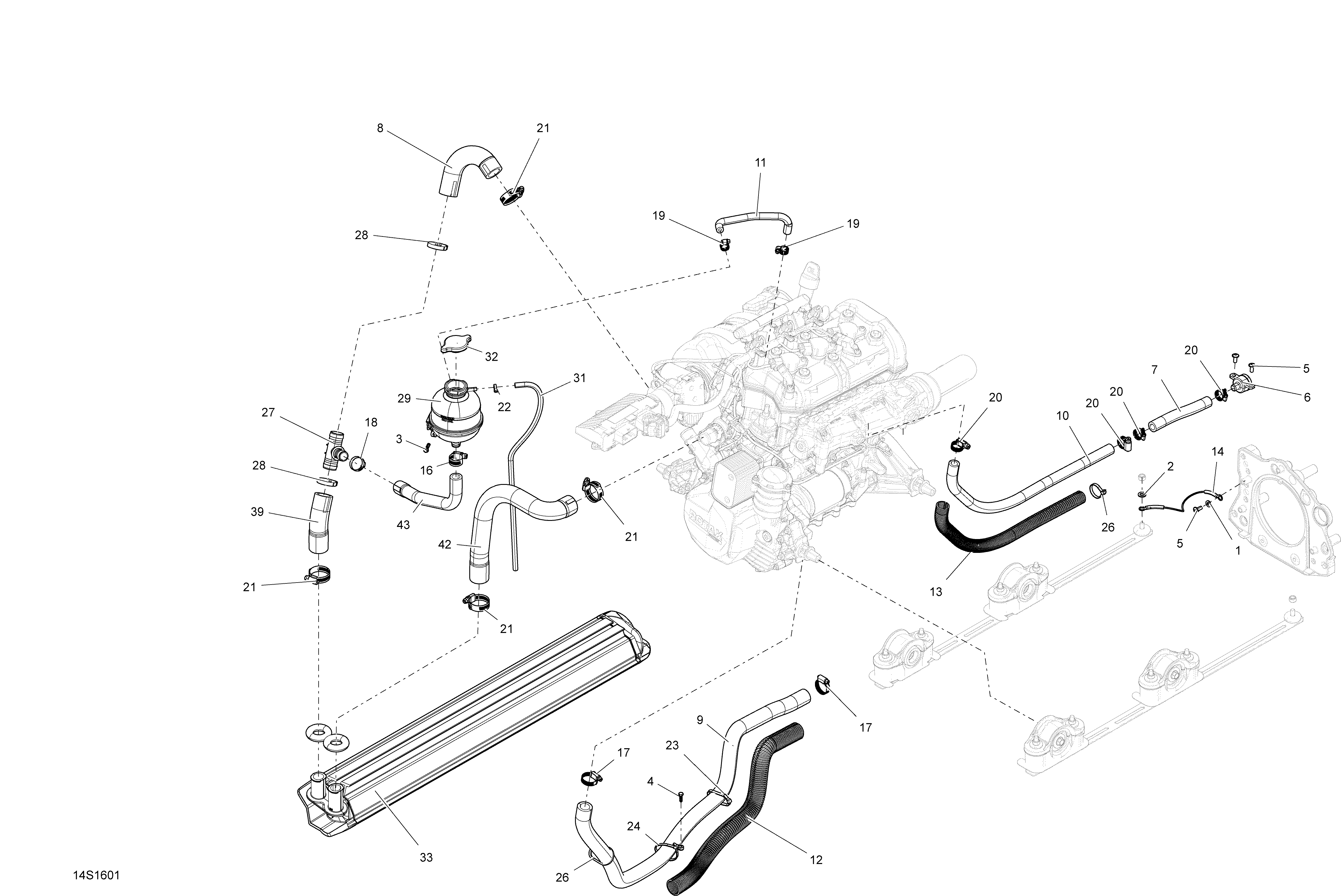

01- Cooling System для BRP SPARK - 2016
-
№АртикулНазвание
-
1409902200 Tubing 25 mmTubing 25 mm
-
2276000158 Hose 19 mmHose 19 mm
-
3241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
5250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
6269800521 Drain Plug NeckDrain Plug Neck
-
7296000303 Hose 12.5 mmHose 12.5 mm
-
8276000301 HoseHose
-
9276000158 Hose 19 mmHose 19 mm
-
10276000151 Hose 12.5 mmHose 12.5 mm
-
11276000316 Formed HoseFormed Hose
-
12409902200 Tubing 25 mmTubing 25 mm
-
13409901600 Tubing 19 mmTubing 19 mm
-
14415080200 Hose, PolyurethaneHose, Polyurethane
-
16293650016 Tridon ClampTridon Clamp
-
17293650051 Tridon Gear ClampTridon Gear Clamp
-
18293650099 Crimp ClampCrimp Clamp
-
19293650170 Tridon Gear ClampTridon Gear Clamp
-
20293650172 Tridon Gear ClampTridon Gear Clamp
-
21293650185 Tridon Gear ClampTridon Gear Clamp
-
22293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24293750049 Tie Rap 305 mmTie Rap 305 mm
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27509000372 T-FittingT-Fitting
-
28509000529 Oetiker Gear ClampOetiker Gear Clamp
-
29509000802 Coolant TankCoolant Tank
-
31415080200 Hose, PolyurethaneHose, Polyurethane
-
32509000180 Pressure CapPressure Cap
-
33276000389 Heat ExchangerHeat Exchanger
-
39276000292 Radiator HoseRadiator Hose
-
42276000291 Radiator HoseRadiator Hose
-
43296000303 Hose 12.5 mmHose 12.5 mm
