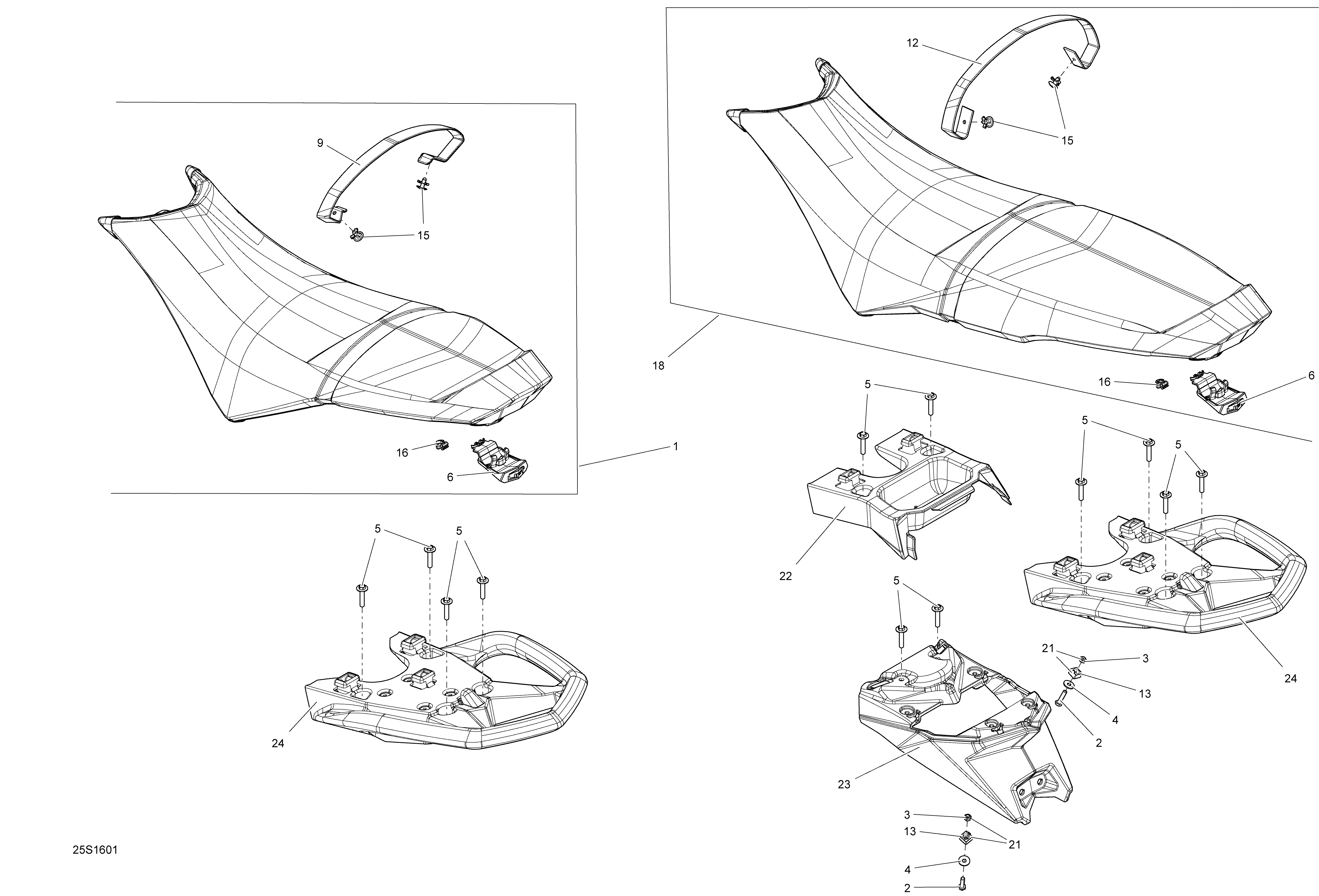

09- Seat для BRP SPARK - 2016
-
№АртикулНазвание
-
1269002923 Gray Seat Assembly. Model Color Bright White 2UpGray Seat Assembly. Model Color Bright White 2Up
-
1269002923 Gray Seat Assembly. Model Color Bright White 2UpGray Seat Assembly. Model Color Bright White 2Up
-
1269002924 Yellow Seat Assembly. Model Color Sunburst Yellow 2UpYellow Seat Assembly. Model Color Sunburst Yellow 2Up
-
1269002924 Yellow Seat Assembly. Model Color Sunburst Yellow 2UpYellow Seat Assembly. Model Color Sunburst Yellow 2Up
-
1269002925 Blue Seat Assembly. Model Color Gulfstream Blue 2UpBlue Seat Assembly. Model Color Gulfstream Blue 2Up
-
1269002925 Blue Seat Assembly. Model Color Gulfstream Blue 2UpBlue Seat Assembly. Model Color Gulfstream Blue 2Up
-
1269002926 Green Seat Assembly. Model Color Krypton Green 2UpGreen Seat Assembly. Model Color Krypton Green 2Up
-
1269002926 Green Seat Assembly. Model Color Krypton Green 2UpGreen Seat Assembly. Model Color Krypton Green 2Up
-
1269002927 Red Seat Assembly. Model Color Red 2UpRed Seat Assembly. Model Color Red 2Up
-
1269002927 Red Seat Assembly. Model Color Red 2UpRed Seat Assembly. Model Color Red 2Up
-
2207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
2207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
3232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
3232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5250000689 Hex. Cap Screw M6.8Hex. Cap Screw M6.8
-
5250000689 Hex. Cap Screw M6.8Hex. Cap Screw M6.8
-
6269002812 HandleHandle
-
6269002812 HandleHandle
-
9269002935 Gray Strap-Seat. Model Color Bright White 2UpGray Strap-Seat. Model Color Bright White 2Up
-
9269002935 Gray Strap-Seat. Model Color Bright White 2UpGray Strap-Seat. Model Color Bright White 2Up
-
9269002943 Yellow Strap-Seat. Model Color Sunburst Yellow 2UpYellow Strap-Seat. Model Color Sunburst Yellow 2Up
-
9269002943 Yellow Strap-Seat. Model Color Sunburst Yellow 2UpYellow Strap-Seat. Model Color Sunburst Yellow 2Up
-
9269002951 Blue Strap-Seat. Model Color Gulfstream Blue 2UpBlue Strap-Seat. Model Color Gulfstream Blue 2Up
-
9269002951 Blue Strap-Seat. Model Color Gulfstream Blue 2UpBlue Strap-Seat. Model Color Gulfstream Blue 2Up
-
9269002959 Green Strap-Seat. Model Color Krypton Green 2UpGreen Strap-Seat. Model Color Krypton Green 2Up
-
9269002959 Green Strap-Seat. Model Color Krypton Green 2UpGreen Strap-Seat. Model Color Krypton Green 2Up
-
9269002967 Red Strap-Seat. Model Color Red 2UpRed Strap-Seat. Model Color Red 2Up
-
9269002967 Red Strap-Seat. Model Color Red 2UpRed Strap-Seat. Model Color Red 2Up
-
12269002941 Gray Strap-Seat. Model Color Bright White 3UpGray Strap-Seat. Model Color Bright White 3Up
-
12269002941 Gray Strap-Seat. Model Color Bright White 3UpGray Strap-Seat. Model Color Bright White 3Up
-
12269002949 Yellow Strap-Seat. Model Color Sunburst Yellow 3UpYellow Strap-Seat. Model Color Sunburst Yellow 3Up
-
12269002949 Yellow Strap-Seat. Model Color Sunburst Yellow 3UpYellow Strap-Seat. Model Color Sunburst Yellow 3Up
-
12269002957 Blue Strap-Seat. Model Color Gulfstream Blue 3UpBlue Strap-Seat. Model Color Gulfstream Blue 3Up
-
12269002957 Blue Strap-Seat. Model Color Gulfstream Blue 3UpBlue Strap-Seat. Model Color Gulfstream Blue 3Up
-
12269002965 Green Strap-Seat. Model Color Krypton Green 3UpGreen Strap-Seat. Model Color Krypton Green 3Up
-
12269002965 Green Strap-Seat. Model Color Krypton Green 3UpGreen Strap-Seat. Model Color Krypton Green 3Up
-
12269002973 Red Strap-Seat. Model Color Red 3UpRed Strap-Seat. Model Color Red 3Up
-
12269002973 Red Strap-Seat. Model Color Red 3UpRed Strap-Seat. Model Color Red 3Up
-
13269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
13269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
15293150067 RivetRivet
-
15293150067 RivetRivet
-
16293720100 Rubber StopperRubber Stopper
-
16293720100 Rubber StopperRubber Stopper
-
18269002928 Gray Seat Assembly. Model Color Bright White 3UpGray Seat Assembly. Model Color Bright White 3Up
-
18269002928 Gray Seat Assembly. Model Color Bright White 3UpGray Seat Assembly. Model Color Bright White 3Up
-
18269002929 Yellow Seat Assembly. Model Color Sunburst Yellow 3UpYellow Seat Assembly. Model Color Sunburst Yellow 3Up
-
18269002929 Yellow Seat Assembly. Model Color Sunburst Yellow 3UpYellow Seat Assembly. Model Color Sunburst Yellow 3Up
-
18269002930 Blue Seat Assembly. Model Color Gulfstream Blue 3UpBlue Seat Assembly. Model Color Gulfstream Blue 3Up
-
18269002930 Blue Seat Assembly. Model Color Gulfstream Blue 3UpBlue Seat Assembly. Model Color Gulfstream Blue 3Up
-
18269002931 Green Seat Assembly. Model Color Krypton Green 3UpGreen Seat Assembly. Model Color Krypton Green 3Up
-
18269002931 Green Seat Assembly. Model Color Krypton Green 3UpGreen Seat Assembly. Model Color Krypton Green 3Up
-
18269002932 Red Seat Assembly. Model Color Red 3UpRed Seat Assembly. Model Color Red 3Up
-
18269002932 Red Seat Assembly. Model Color Red 3UpRed Seat Assembly. Model Color Red 3Up
-
21269501166 Nut Housing Ass'yNut Housing Ass'y
-
21269501166 Nut Housing Ass'yNut Housing Ass'y
-
22291003789 Seat SupportSeat Support
-
22291003789 Seat SupportSeat Support
-
23291003556 Handle SupportHandle Support
-
23291003556 Handle SupportHandle Support
-
24291003384 Grab HandleGrab Handle
-
24291003384 Grab HandleGrab Handle
