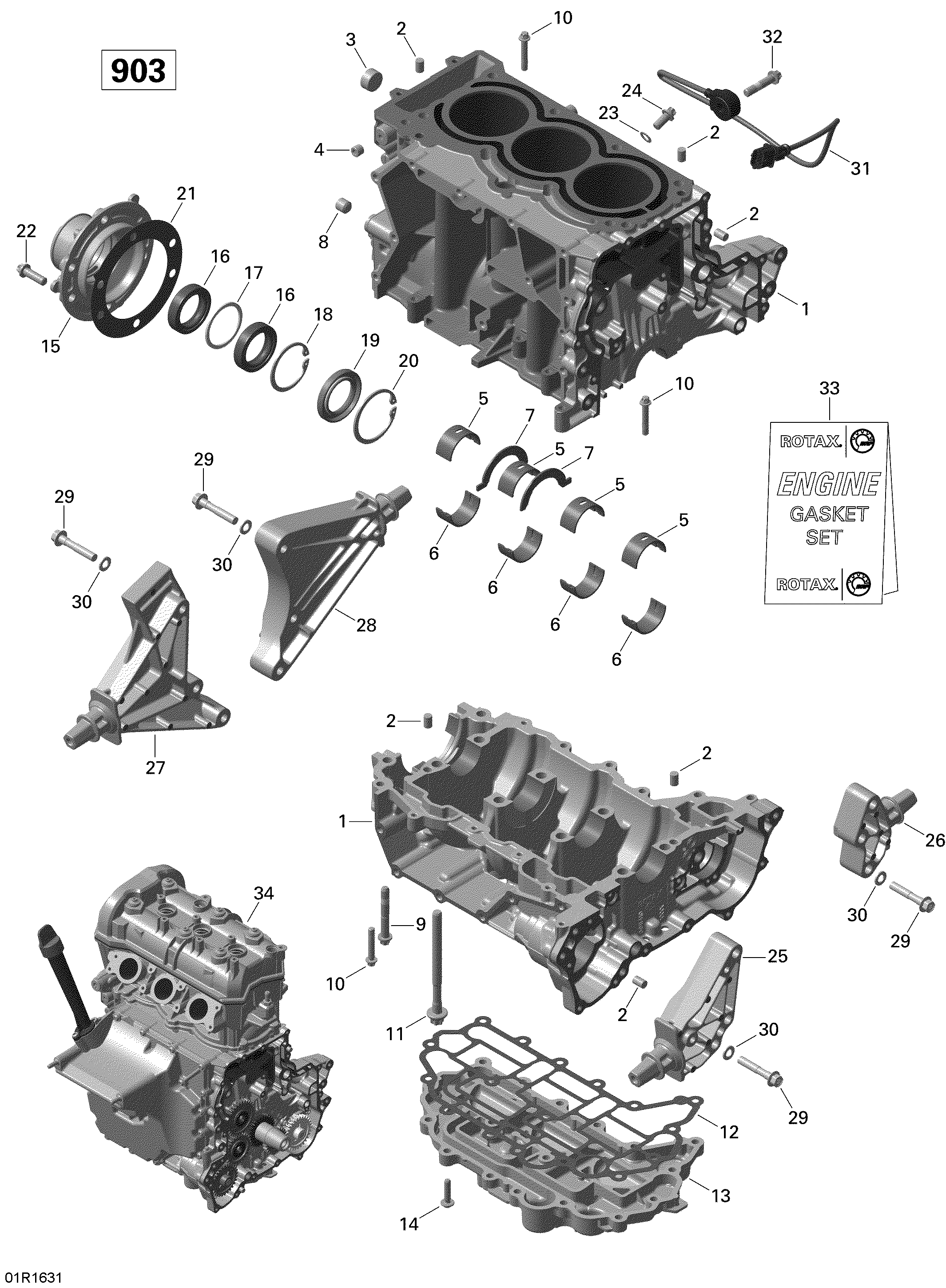

01- Crankcase - 900-900 HO ACE для BRP SPARK - 2016
-
№АртикулНазвание
-
1420894025 Crankcase Ass'y. Includes 1 to 6Crankcase Ass'y. Includes 1 to 6
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
4420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
5420933180 CushionCushion
-
6420933185 CushionCushion
-
7420933140 Ring HalfRing Half
-
8420840508 Threaded PinThreaded Pin
-
9420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
10420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
11420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
12420431820 GasketGasket
-
13420911502 Oil SumpOil Sump
-
14420841548 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420911681 PTO Cover. Includes 15 to 20PTO Cover. Includes 15 to 20
-
16420450165 Oil SealOil Seal
-
17420947500 Ring DistanceRing Distance
-
18420945693 Retaining RingRetaining Ring
-
19420850220 Oil SealOil Seal
-
20420945820 Retaining RingRetaining Ring
-
21420450080 GasketGasket
-
22420641248 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
23420950142 Sealing RingSealing Ring
-
24420441653 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
25420911770 Front Engine Bracket, IntakeFront Engine Bracket, Intake
-
26420911775 Front Engine Bracket, ExhaustFront Engine Bracket, Exhaust
-
27420911780 Rear Engine Bracket, IntakeRear Engine Bracket, Intake
-
28420911785 Rear Engine Bracket, ExhaustRear Engine Bracket, Exhaust
-
29420641208 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
31420664031 Noise SensorNoise Sensor
-
32420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
33420686230 Engine Gasket SetEngine Gasket Set
-
34420090331 Long Block, 903Long Block, 903
