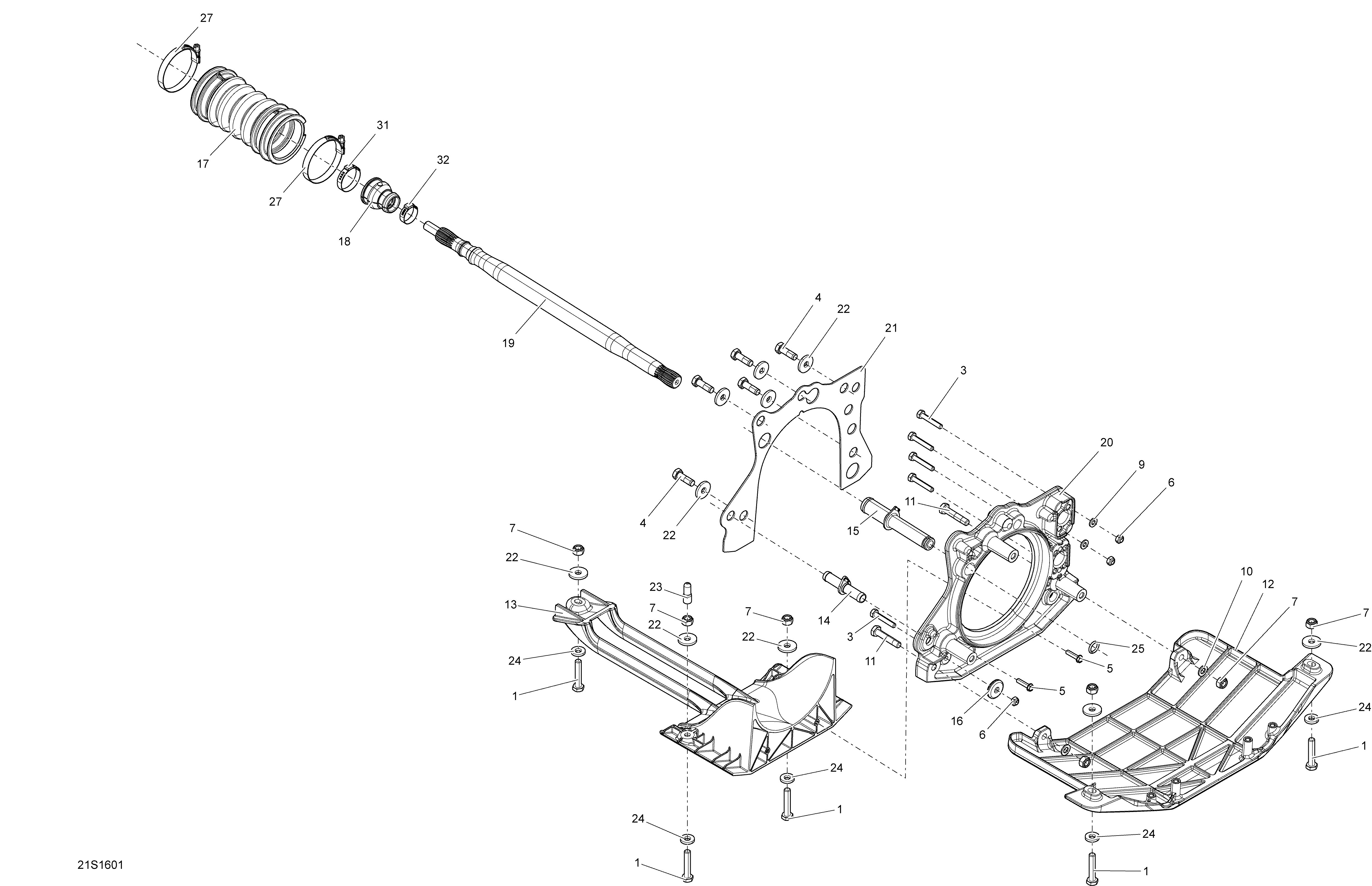

05- Propulsion для BRP SPARK - 2016
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
5211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
6232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
11250000230 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
12271001840 Riding PlateRiding Plate
-
13271001804 Pump GratePump Grate
-
14271001817 Water Straght Fitting, OutWater Straght Fitting, Out
-
15271001818 Water Straight Fitting, InWater Straight Fitting, In
-
16271001920 Anode ZincAnode Zinc
-
17271001921 BellowBellow
-
18271001922 Protector SleeveProtector Sleeve
-
19271001923 Drive ShaftDrive Shaft
-
20271001956 Pump Supp AnodPump Supp Anod
-
21271001958 GasketGasket
-
22279000164 Flat WasherFlat Washer
-
23293000105 Cap PlugCap Plug
-
24293050001 Flat WasherFlat Washer
-
25293300006 O-RingO-Ring
-
27293650079 Norma ClampNorma Clamp
-
31509000181 Oetiker Gear ClampOetiker Gear Clamp
-
32509000442 Oetiker Gear ClampOetiker Gear Clamp
