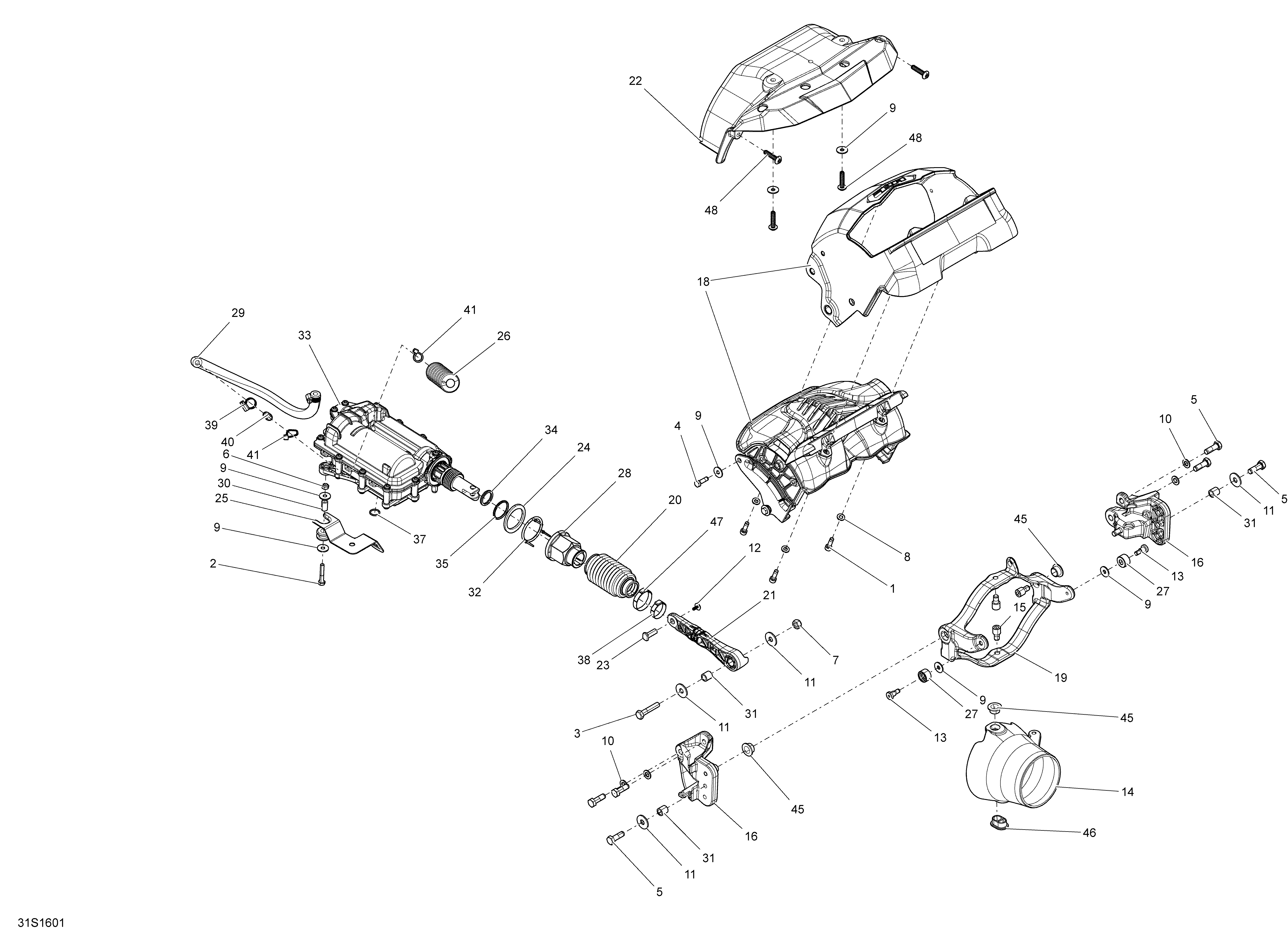

05- Reverse для BRP SPARK - 2016
-
№АртикулНазвание
-
1205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
2207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
3207084060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
4207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
5207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
6232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
13250000775 Screw-Socket Shoulder M8X8Screw-Socket Shoulder M8X8
-
14267000705 NozzleNozzle
-
15268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
16268000166 RH Reverse SupportRH Reverse Support
-
16268000163 LH Reverse SupportLH Reverse Support
-
18268000169 Reverse Gate Ass'y. Trim Ramp Kit 295501170Reverse Gate Ass'y. Trim Ramp Kit 295501170
-
19268000179 Trimming RingTrimming Ring
-
20268000186 BootBoot
-
21268000187 Reverse RodReverse Rod
-
22268000189 GuardGuard
-
23268000207 Shoulder PinShoulder Pin
-
24268000208 GasketGasket
-
25268000210 Actuator SupportActuator Support
-
26268000211 Inner BootInner Boot
-
27295501160 Roller Bushing KitRoller Bushing Kit
-
28268000267 Ibr NutIbr Nut
-
29509000407 Hose 8 mmHose 8 mm
-
30271001020 SpacerSpacer
-
31271001039 SpacerSpacer
-
32277001977 Rubber GasketRubber Gasket
-
33278003292 Cal ActuatorCal Actuator
-
34279000108 O-RingO-Ring
-
35293300107 O-RingO-Ring
-
37293300187 O-RingO-Ring
-
38293650099 Crimp ClampCrimp Clamp
-
39293650171 Tridon Gear ClampTridon Gear Clamp
-
40293710157 Fitting-StraigFitting-Straig
-
41293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
45293900007 Venturi BushingVenturi Bushing
-
46293900010 Plastic BushingPlastic Bushing
-
47509000529 Oetiker Gear ClampOetiker Gear Clamp
-
48250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
