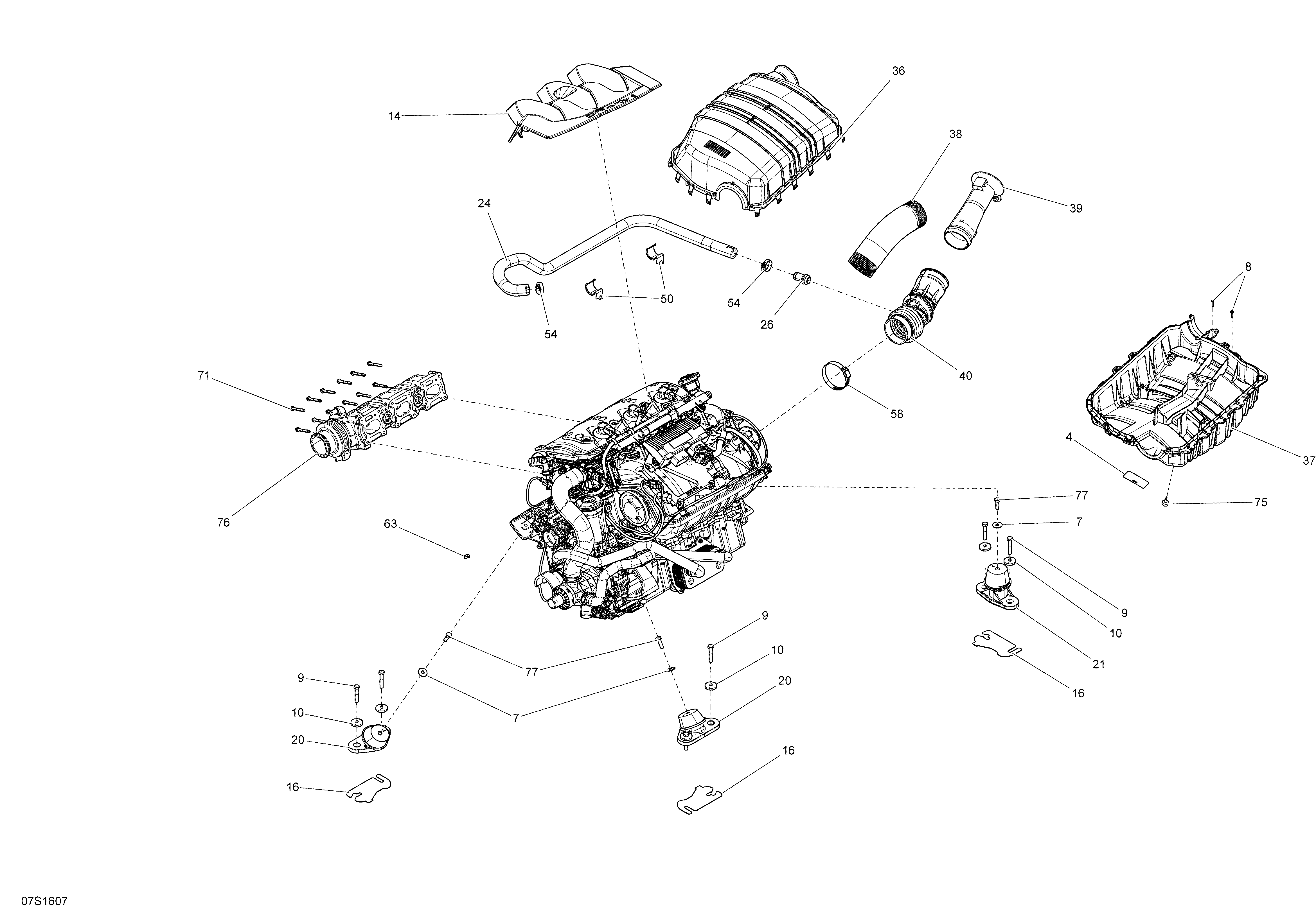

01- Engine для BRP Wake - 2016
-
№АртикулНазвание
-
4219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
9250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
10250200018 Cone WasherCone Washer
-
14270000999 CoverCover
-
16270000762 Shim 1.3 mmShim 1.3 mm
-
20270000882 Rubber MountRubber Mount
-
21270000885 Rubber MountRubber Mount
-
24270000949 Formed HoseFormed Hose
-
26273000234 BreatherBreather
-
36273000371 Air Silencer UpperAir Silencer Upper
-
37273000354 Air Silencer LowAir Silencer Low
-
38273000290 Air Silencer HoseAir Silencer Hose
-
39273000358 Intake HoseIntake Hose
-
40273000292 Hose ConnectorHose Connector
-
50275500664 RetainerRetainer
-
54293650051 Tridon Gear ClampTridon Gear Clamp
-
58293650179 Tridon ClampTridon Clamp
-
63293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
71420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
75708000759 Rubber StopperRubber Stopper
-
76274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
77207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
